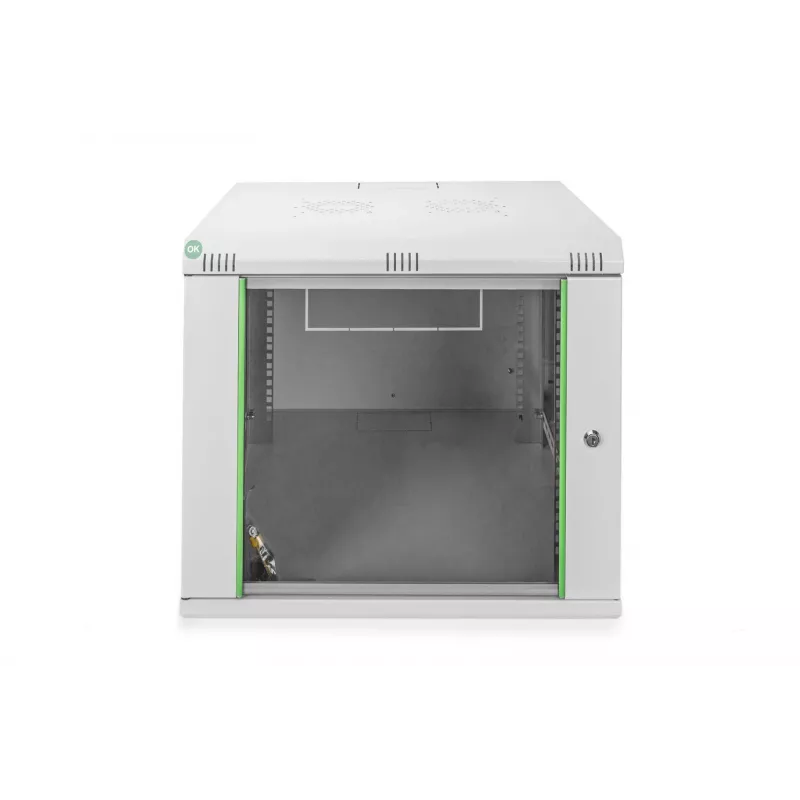

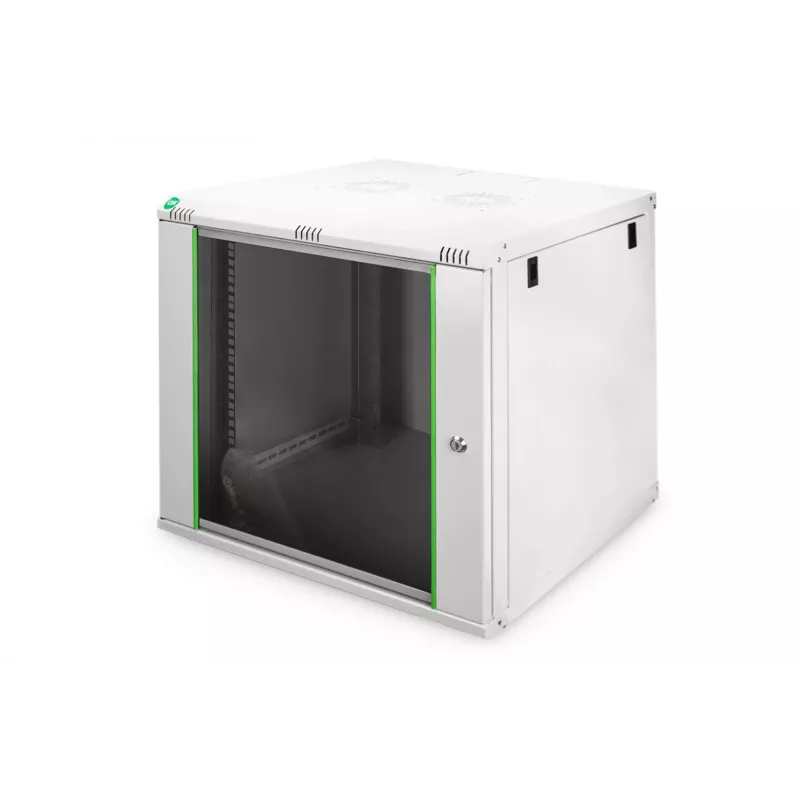

Caixa de montagem na parede Digitus DN-19 09U-6/6-EC

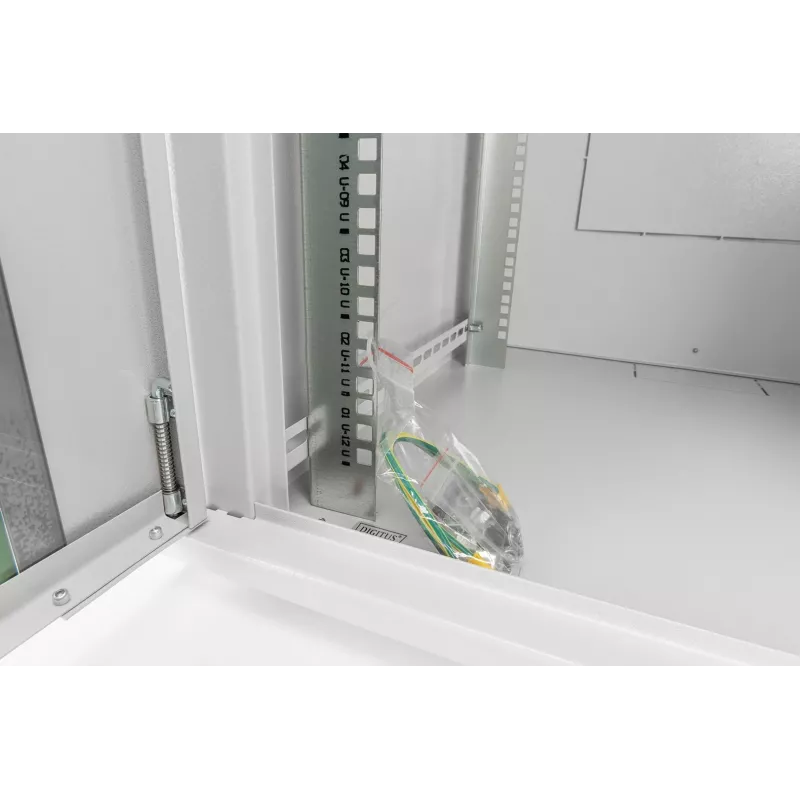

The Dynamic series wall-mount network cabinet is designed for straightforward, cost-efficient network expansion. The cabinet features pre-cut cable inlets in the roof, floor and back wall, and a roof area prepared for an optional fan module. It includes lockable, removable front door with reversible hinges and removable side panels for improved access. Inside, adjustable, galvanized 483 mm (19") profile rails are installed front and rear with rack units marked for easy reading in both directions. The housing is constructed from sheet steel up to 1.5 mm thick and finished with electrostatic powder coating in standard colors gray (RAL 7035) or jet black (RAL 9005). Wall mounting uses a supplied mounting plate that is bolted to the wall and then connected to the cabinet in two simple steps.

Advantages

The cabinet provides optimized air ventilation and exhaust to maintain airflow, a lockable glass front door for secure access and visibility, and adjustable 19" profile rails for flexible equipment installation. Removable side panels and a reversible door hinge increase serviceability, while galvanized rails and powder-coated steel construction offer durability. Pre-cut inlets simplify cable routing and allow quick installation of fans and cabling.

Key specifications

• Mounting type: wall-mounted network cabinet

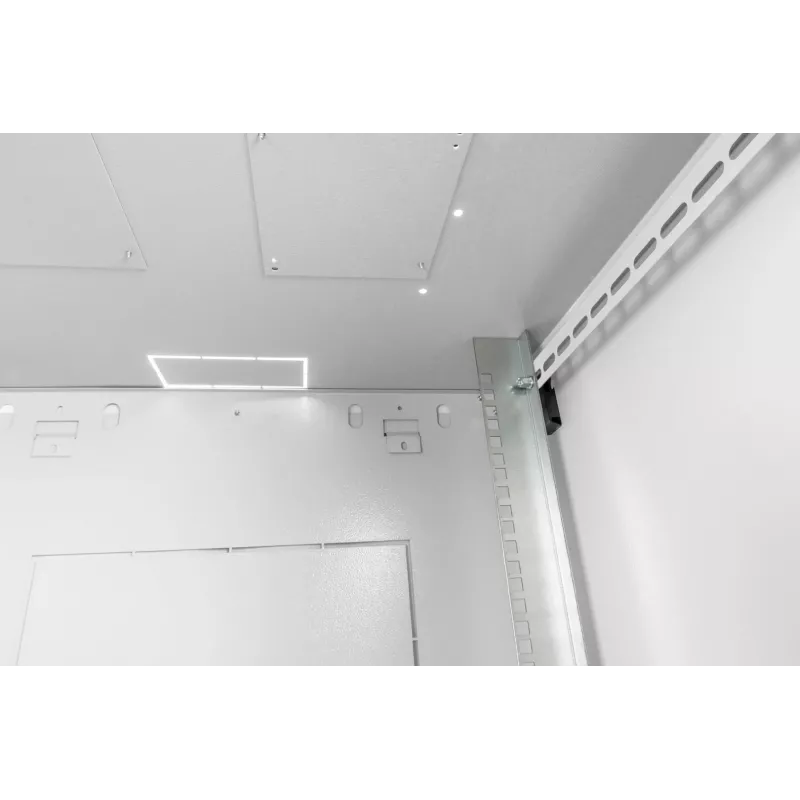

• Profile rails: galvanized 483 mm (19") front and rear, depth adjustable
• Material: sheet steel up to 1.5 mm thickness
• Finish: electrostatic powder coating, colors RAL 7035 (gray) or RAL 9005 (jet black)

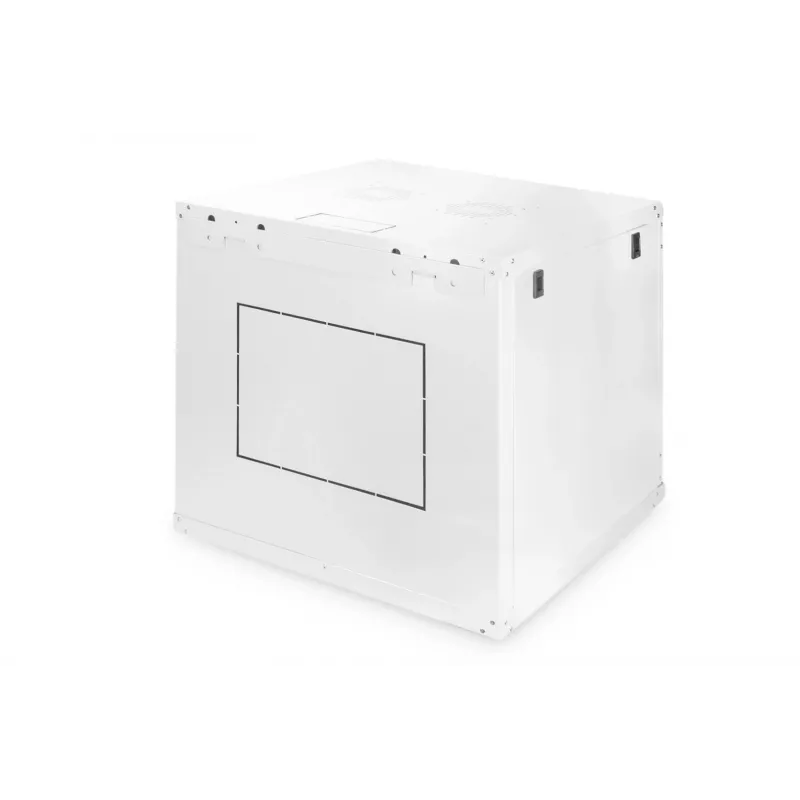

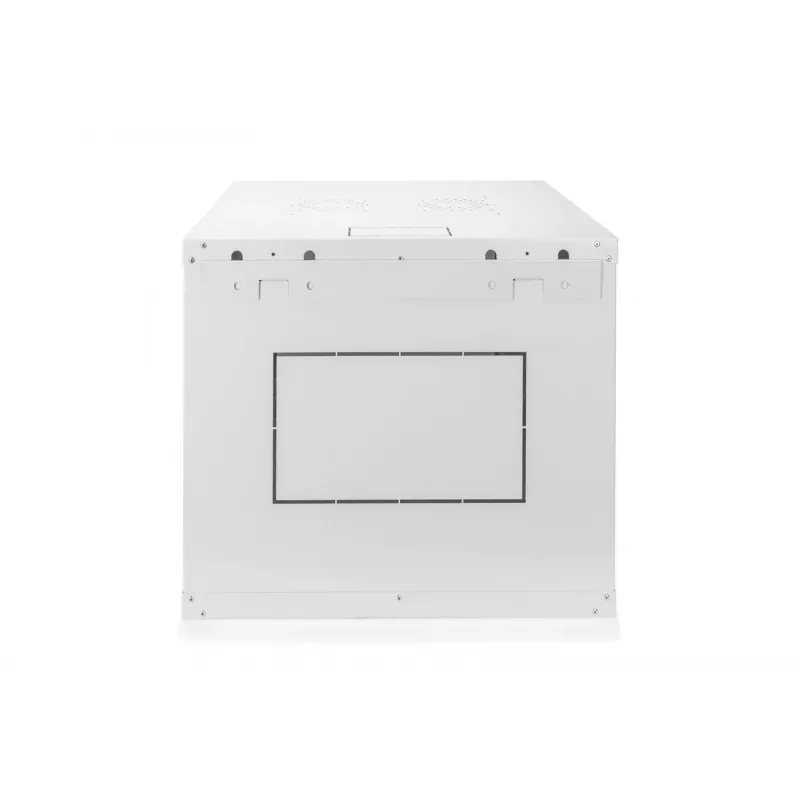

• Cable management: pre-cut cable inlets in roof, floor and back wall
• Ventilation: pre-cut roof area for fan module, optimized air ventilation and exhaust

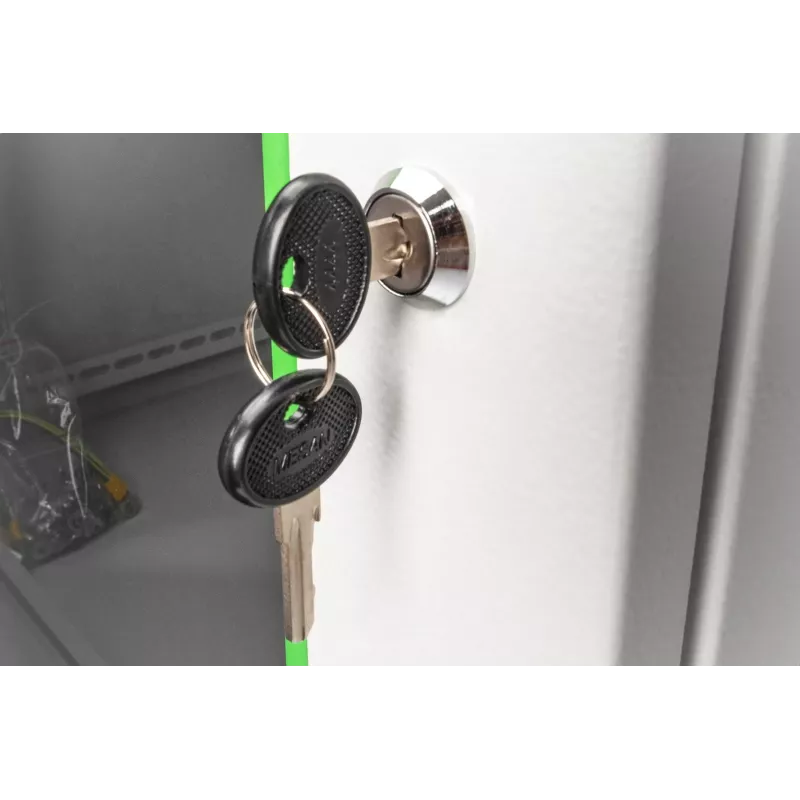

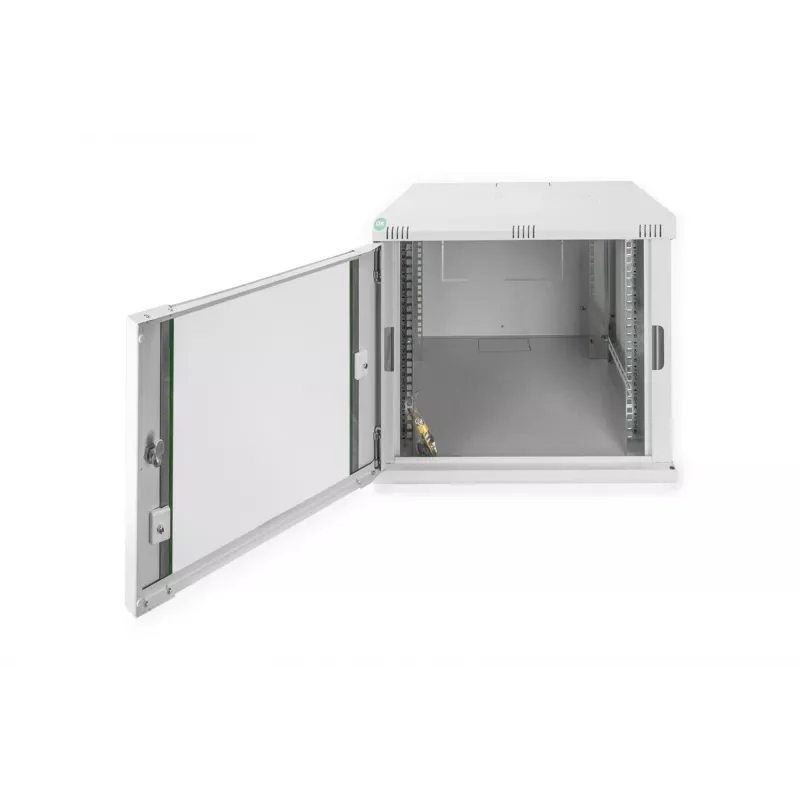

• Door: lockable glass front door, removable and with reversible hinges

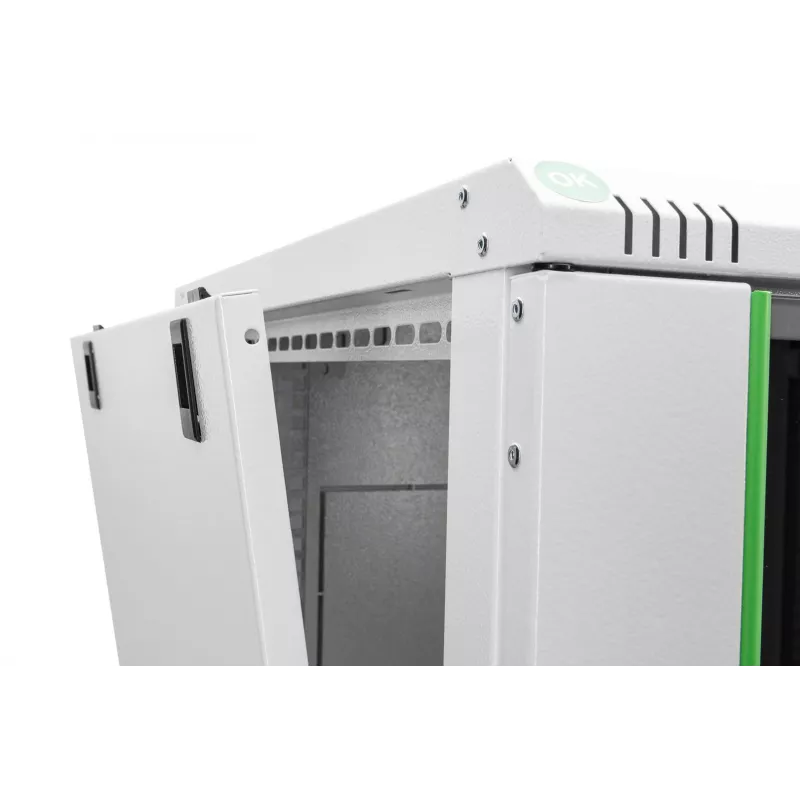

• Side panels: removable for improved access
• Installation: wall mounting using supplied mounting plate (two-step installation)

How to use

Bolt the supplied mounting plate securely to the wall at the desired location and then attach the cabinet to the plate. Install equipment on the adjustable 19" profile rails, setting the depth as needed and using the marked rack units. Route cables through the pre-cut inlets in the roof, floor or back wall. If additional active cooling is required, install a compatible fan module in the pre-cut roof area. Use the removable side panels and reversible front door to access equipment for maintenance or reconfiguration. Lock the glass door to secure the cabinet when work is complete.

Recommendations

For safe and reliable installation, ensure the mounting plate is fixed to a load-bearing wall with appropriate fasteners and follow local electrical and building codes. Choose the cabinet color and rail depth according to equipment dimensions and ventilation needs, and consider installing a fan module if equipment generates significant heat.
