Caixa de parede ROLINE Pro 9U de 19 polegadas, 450x600 LxP, preto, fechadura com chave, IP20

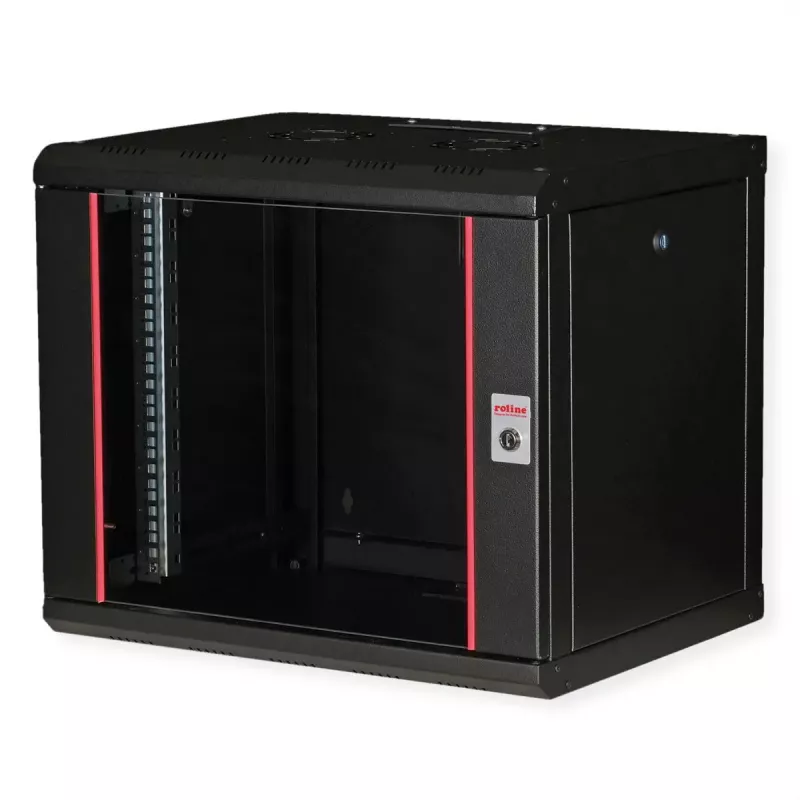

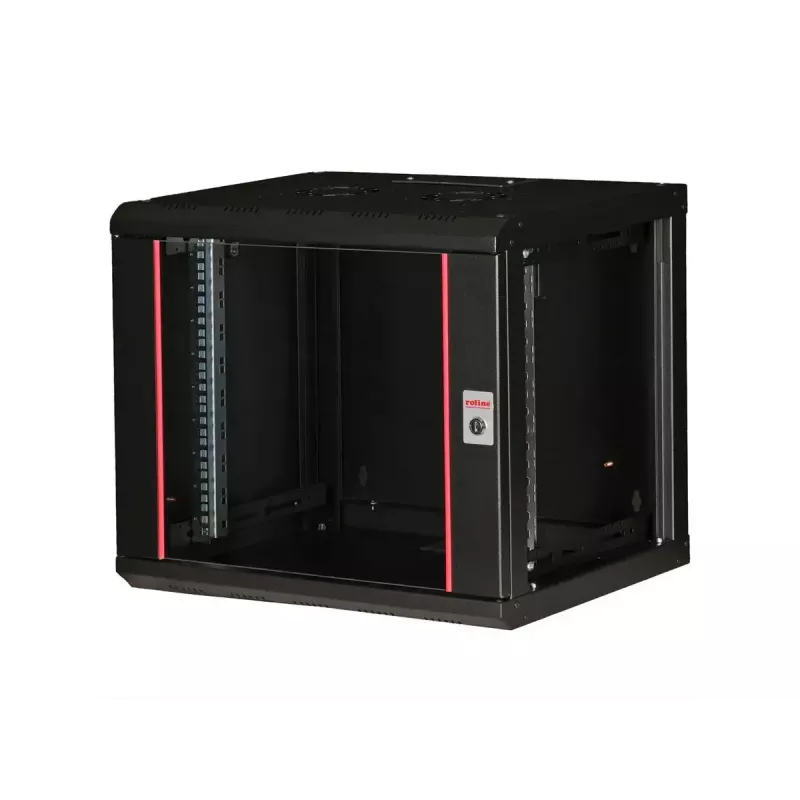

The ROLINE 19-inch wall-mounted rack Pro 9U is a compact steel enclosure designed for flexible network cabling and mounting standard 19" equipment. It provides 9U of usable height within a 450×600 mm (W×D) footprint and comes in a black powder-coated finish with a keyed lock and IP20 protection. The cabinet includes slide-on and punched cable inlets with seals, depth-adjustable galvanised 19" profile rails, removable side panels and front door, and a roof area prepared for a fan module. It can be fixed to the wall via a two-step rear-panel mounting or converted to a free-standing unit with optional levelling feet or castors.

Advantages

The enclosure combines a robust steel construction with modular, removable panels for easy access and maintenance. Cable entry options on the roof, rear panel and base, together with depth-adjustable 19" rails, support flexible cable management and installation of switches, patch panels and compact servers. A keyed lock adds physical security while the prepared fan area and IP20 rating accommodate common small-server-room or telecom-cabinet setups.

Suitable for

• Mounting network switches and patch panels in small server rooms or wiring closets
• Hosting compact 19" servers and network appliances with limited depth
• Telecom or network distribution points requiring a wall-mounted cabinet

When it may not be suitable

This 9U 450×600 mm wall-mounted rack is not suitable for large or full-depth servers and equipment that require more than 9U of rack space. It is also not intended for outdoor use or environments requiring a higher ingress protection rating than IP20.

Key specifications

• Usable height: 9U (483 mm standard 19" height units)
• Dimensions (W×D): 450×600 mm
• Material: Sheet steel, up to 1.5 mm thickness, powder-coated
• Colour: Black (RAL 9005)
• Protection rating: IP20

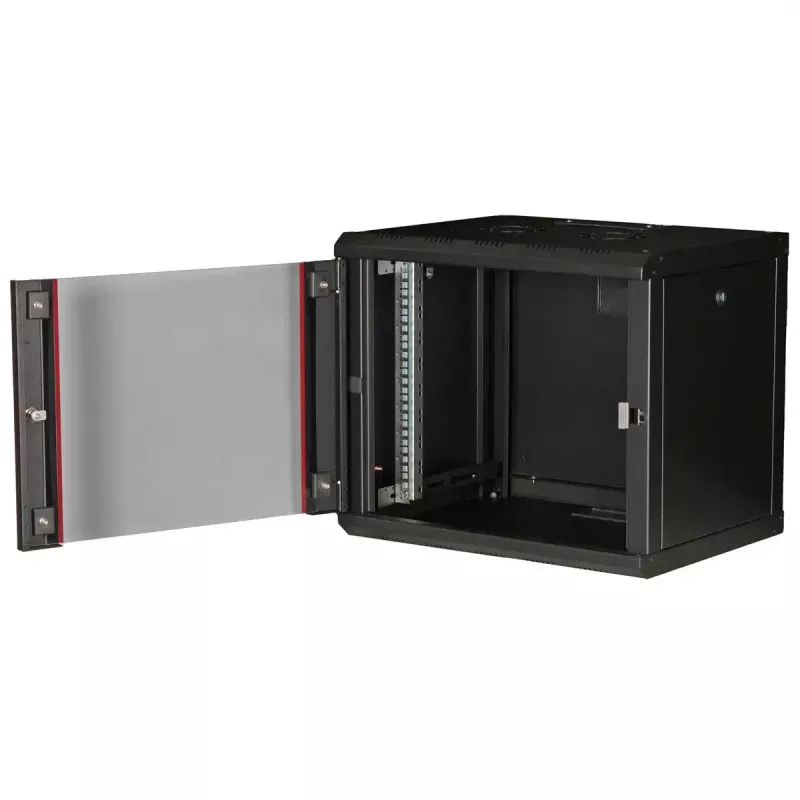

• Doors and panels: Removable front door and side panels, lockable with key
• Cable entry: Slide-on inlet in roof with foam seal; punched inlets with covers on rear panel and base
• Rail type: Pair of galvanised 19" profile rails, depth-adjustable
• Cooling provision: Roof chassis area prepared for a fan module

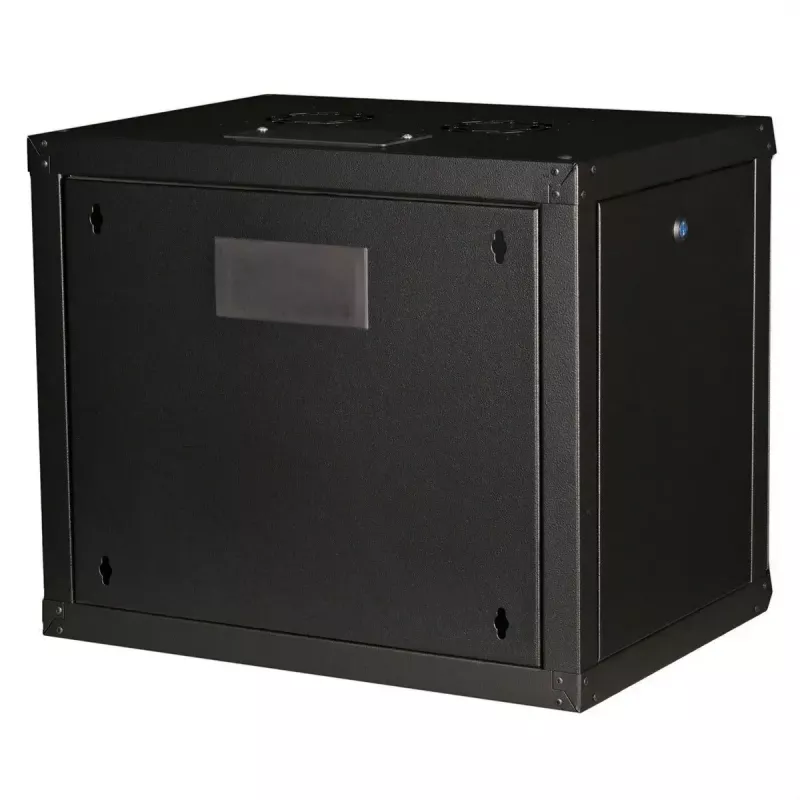

• Mounting: Wall-mounted via rear panel; convertible to free-standing with optional feet or castors

How to use

Secure the rear mounting panel to a suitable load-bearing wall using appropriate anchors and fasteners. Attach the enclosure to the mounted rear panel, install the depth-adjustable 19" rails to match equipment depth, and mount network devices, patch panels and cable management accessories into the rails. Route cables through the roof inlet or rear/base punched openings using the provided seals and covers to protect cable entry points. Lock the front door when physical access control is required. If a free-standing configuration is needed, fit optional levelling feet or castors according to the manufacturer's instructions.

What to consider before purchase

• Verify that 9U of usable rack height and the 450×600 mm footprint accommodate your equipment depth and ventilation needs
• Check that IP20 protection is sufficient for the intended environment (not suitable for outdoor or dusty/wet locations)
• Confirm whether additional accessories such as fan modules, cable management, levelling feet or castors are required
• Ensure wall structure and fixings can support the loaded cabinet weight

Recommendations

Install the cabinet on a load-bearing wall and distribute equipment weight evenly on the rails. Allow airflow space around installed devices, use the prepared fan area if active cooling is needed, and secure the front door with the keyed lock to control physical access.
