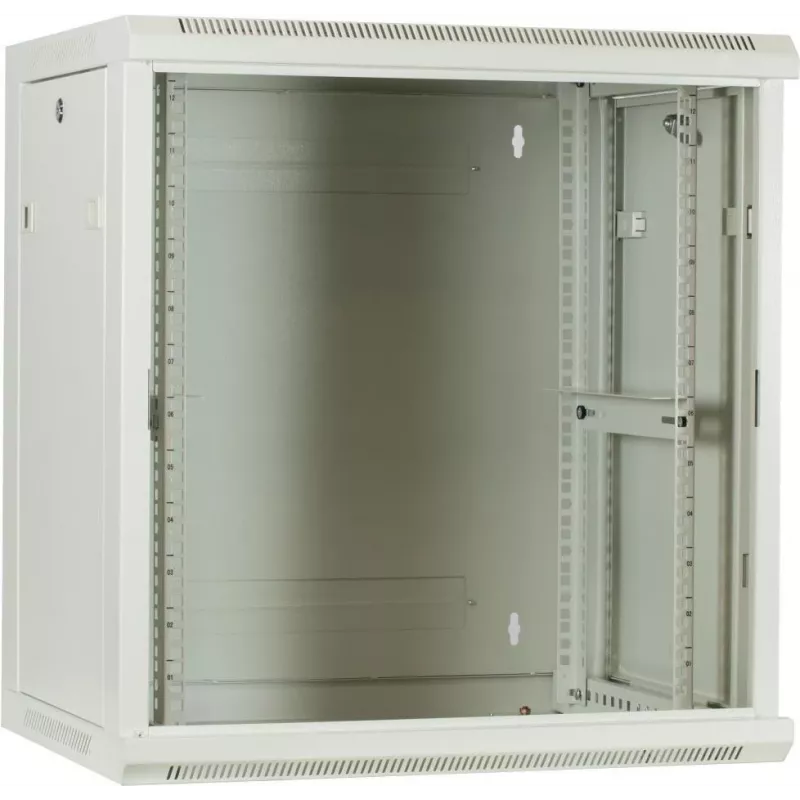

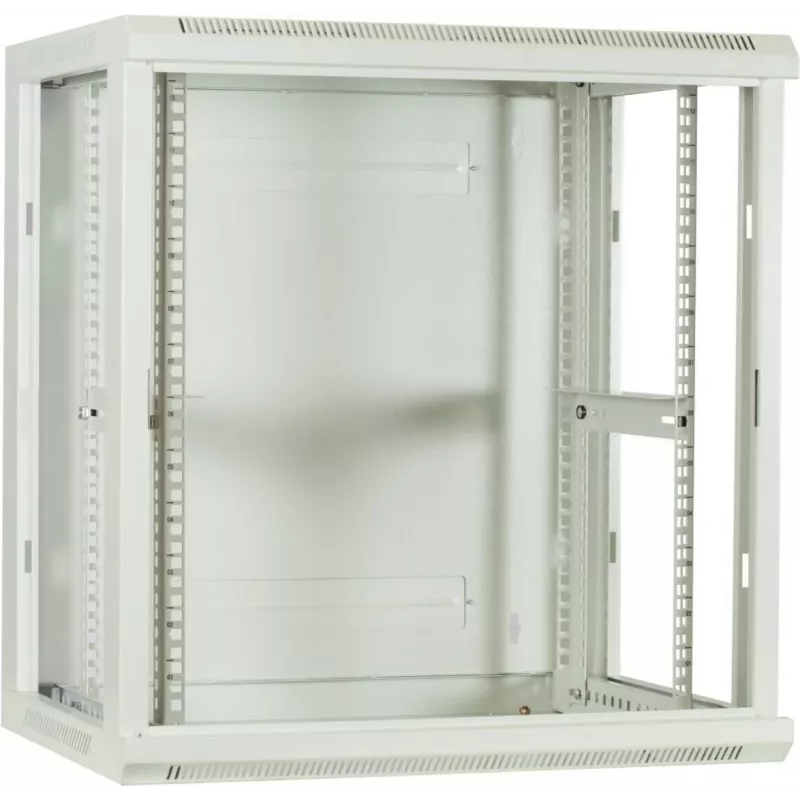

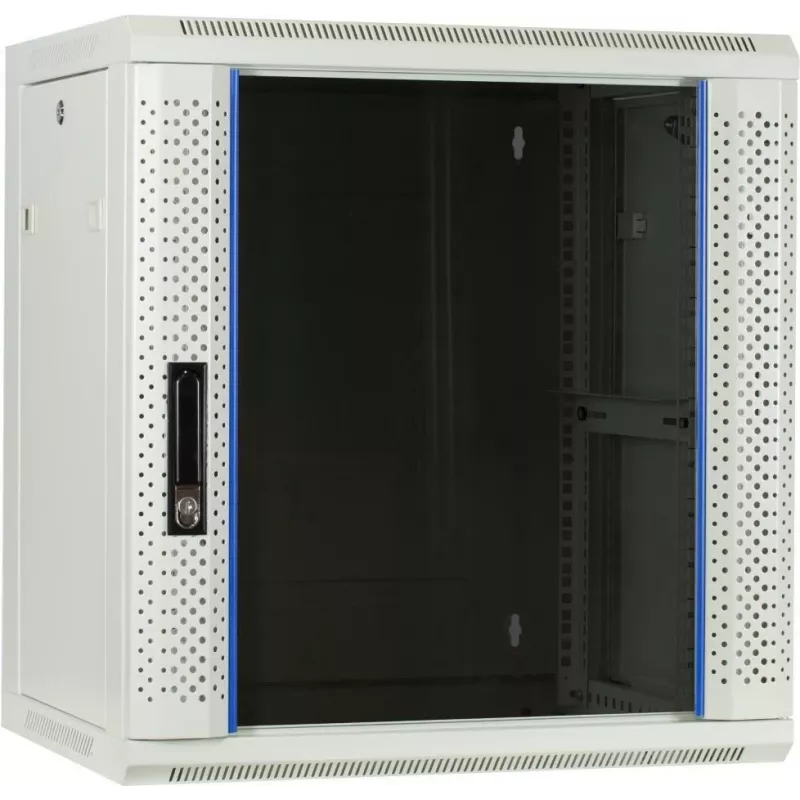

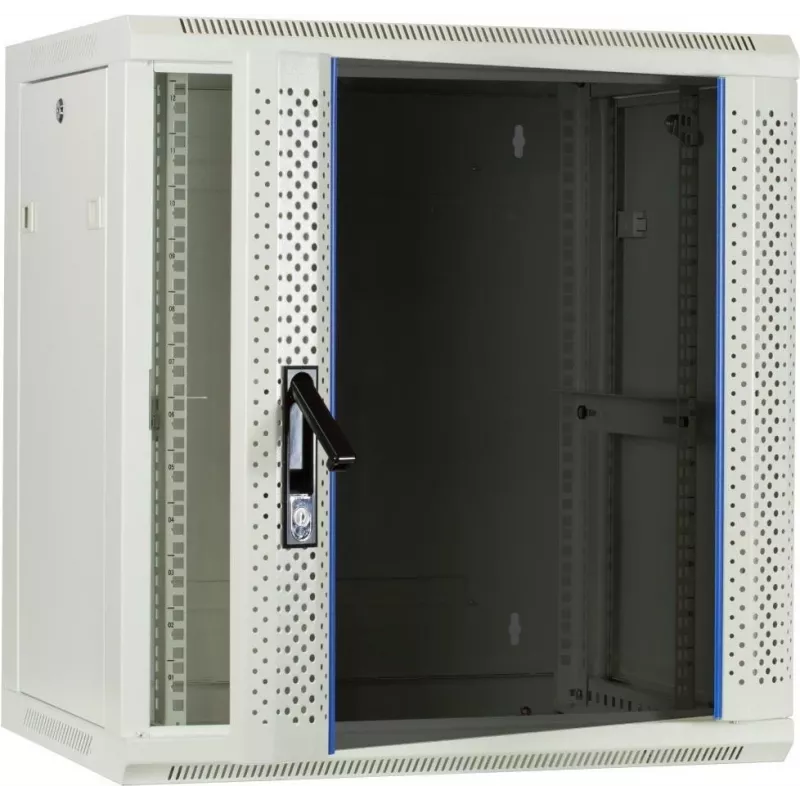

Caixa de servidor DSIT DS6412W 12U para montagem na parede com porta de vidro, 600x450x634 mm, branca

With a 60 kg load capacity in a compact 12U form factor, this DSIT wall-mount cabinet anchors your network infrastructure securely while keeping equipment easily accessible through a tempered glass front door.

Overview

The DSIT DS6412W is a wall-mounted server enclosure engineered for small to medium network installations where floor space is at a premium. Its 600 mm width and 450 mm depth accommodate standard 19-inch rack equipment, while the 634 mm height provides 12U of vertical mounting space. The cabinet is constructed from SPCC cold rolled steel with a powder-coated white finish (RAL 9003), offering durability and a clean, professional appearance suitable for offices, retail back rooms, or light industrial environments.

What stands out

• Tempered glass front door with key lock for visual monitoring and security.
• Removable side panels allow easy access during installation and maintenance.
• Adjustable mounting rails support equipment depths from 250 mm to 450 mm.
• Top and bottom cable entry points with brush strips maintain a tidy setup.
• Passive ventilation slots promote airflow without additional fans.

Technical details

• Rack capacity: 12U
• External dimensions (WxDxH): 600 x 450 x 634 mm
• Internal rack width: 19 inches
• Maximum weight capacity: 60 kg
• Material: SPCC cold rolled steel
• Colour: White (RAL 9003)
• Front door: Tempered glass, lockable
• Side panels: Removable
• Mounting rails: Adjustable
• Cable entry: Top and bottom with brush strips
• Ventilation: Passive slots
• Protection rating: IP20
• Included accessories: 2 keys, mounting hardware, cage nuts and screws

Our verdict

The DSIT DS6412W delivers reliable wall-mount rack storage with a focus on security and accessibility. Its glass door and removable panels simplify equipment monitoring and servicing, making it a practical choice for structured cabling and small server deployments.
