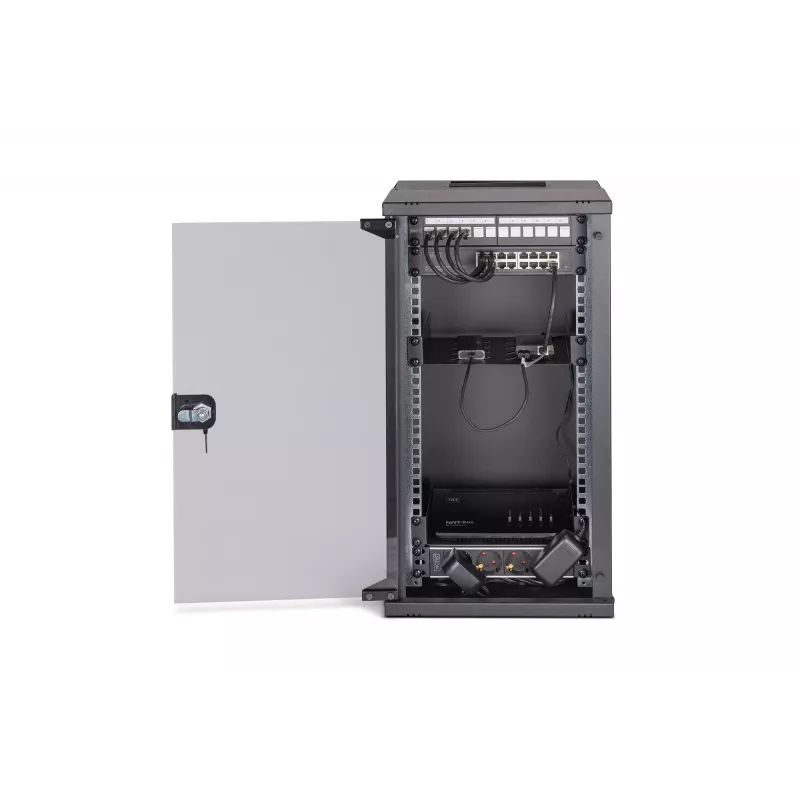

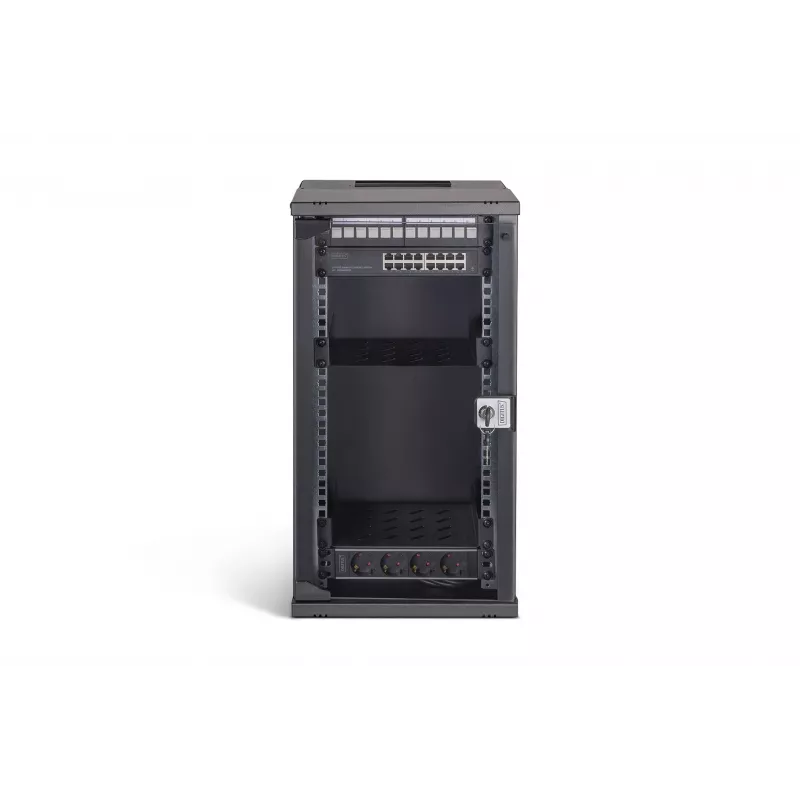

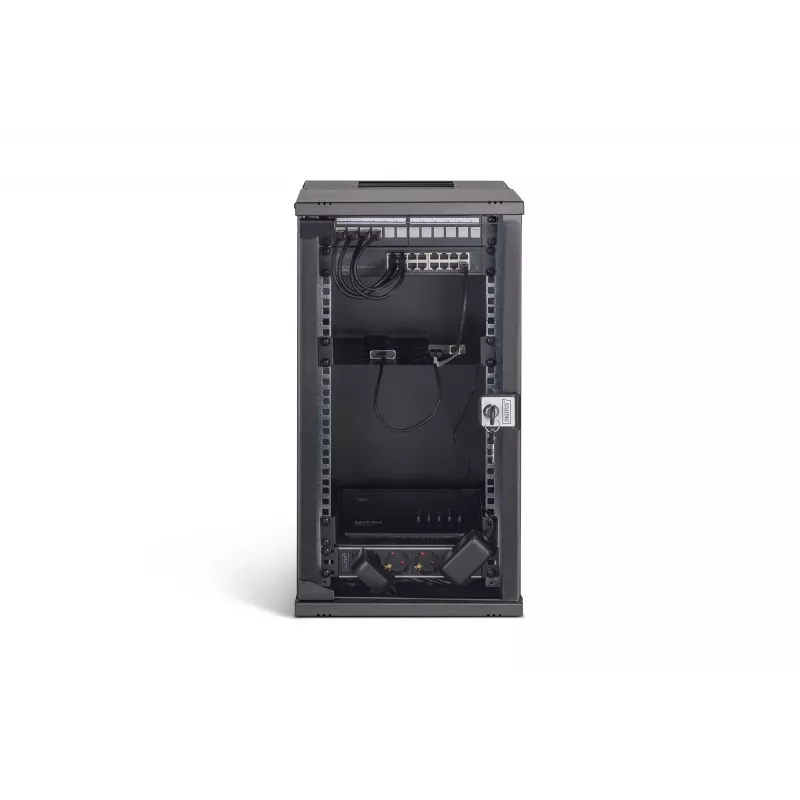

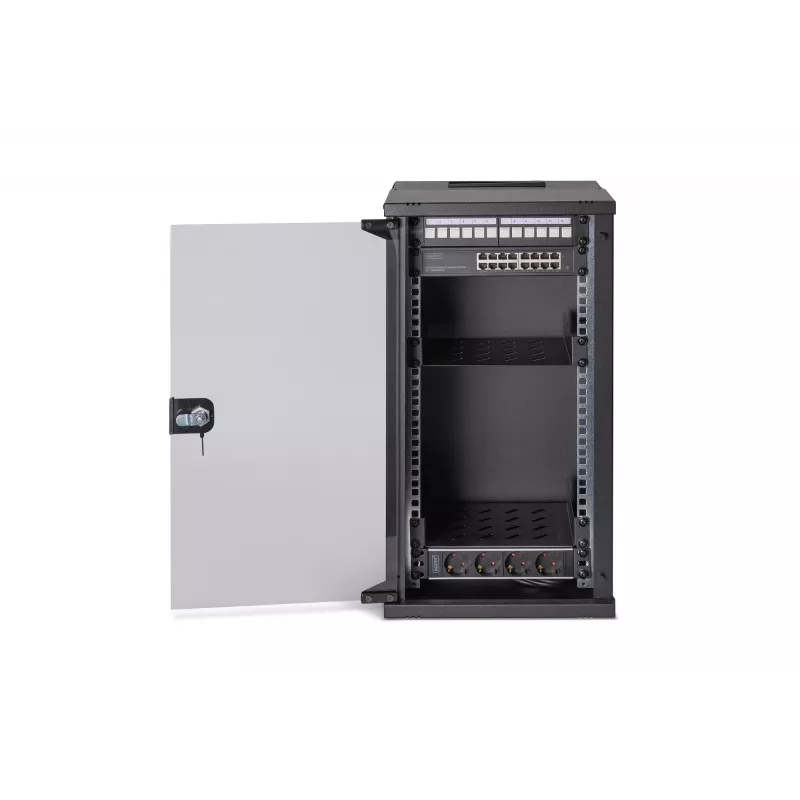

Rack de parede Digitus DN-49105-SET 12U 60 kg IP20

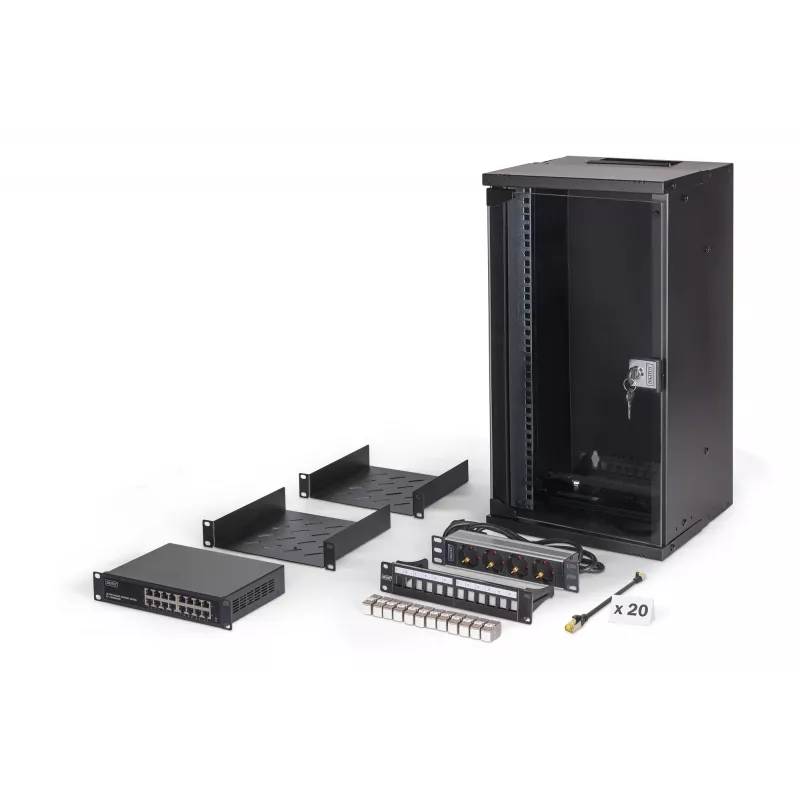

Complete set for setting up a compact 254 mm (10") network, including a wall-mounted SOHO PRO enclosure (12U, 595 x 315 x 300 mm) delivered unassembled, two 1U shelves, a 1U socket strip with earthing contact, a 16-port Gigabit Ethernet switch, a 12-port modular patch panel, twelve shielded CAT 6A keystone modules and twenty 0.25 m CAT 6A S/FTP patch cables. The components are matched for quick installation and are supplied in a compact cardboard box for easy transport and storage.

Advantages

The SOHO Pro 10" solution provides a space-saving network cabinet designed for homes, small offices or cramped sub-distribution areas. All major active and passive components are included and pre-selected for compatibility to simplify cabling and reduce installation time. The enclosure is delivered unassembled to save shipping space, and step-by-step instructions make the setup straightforward.

Key specifications

• Wall-mounted enclosure dimensions (H x W x D): 595 x 315 x 300 mm (supplied unassembled)
• Enclosure height: 12U; load capacity: up to 60 kg
• Frame type: closed; material: steel; color: black
• Socket strip: 1U with 4 grounded outlets, 250 VAC 50/60 Hz, 16 A, 4000 W; supply cable H05VV-F 3G 1.5 mm², 2 m, with earth contact plug
• Switch: Gigabit Ethernet, 16 ports; compliant with IEEE 802.3, 802.3u, 802.3ab and 802.3x
• Patch panel: modular, 12-port
• Keystone modules: 12 × CAT 6A shielded (10GBase-T, 500 MHz), suitable for PoE/PoE+/4PPoE (IEEE 802.3af/at/bt), GHM-T wiring
• Patch cables: 20 × CAT 6A S/FTP, copper, LSZH, AWG 26/7, length 0.25 m, color black

How to use

Unpack the boxed components and follow the enclosed step-by-step instructions to assemble and mount the wall enclosure. Install the 1U shelves and mount the modular 12-port patch panel at the desired height. Snap the shielded CAT 6A keystone modules into the patch panel and terminate the patch cables to corresponding ports on the patch panel and the Gigabit switch. Mount the switch inside the cabinet and connect the socket strip to a mains supply using the provided 2 m cable. Route cables neatly to avoid strain and ensure proper grounding of shielded components.

Recommendations

For reliable network performance, use shielded cabling and ensure that the enclosure and keystone modules are properly grounded. Install the cabinet in a dry, ventilated location and avoid overloading the rack beyond its 60 kg capacity. Verify switch and keystone module firmware and standards compatibility with existing equipment before integration.
