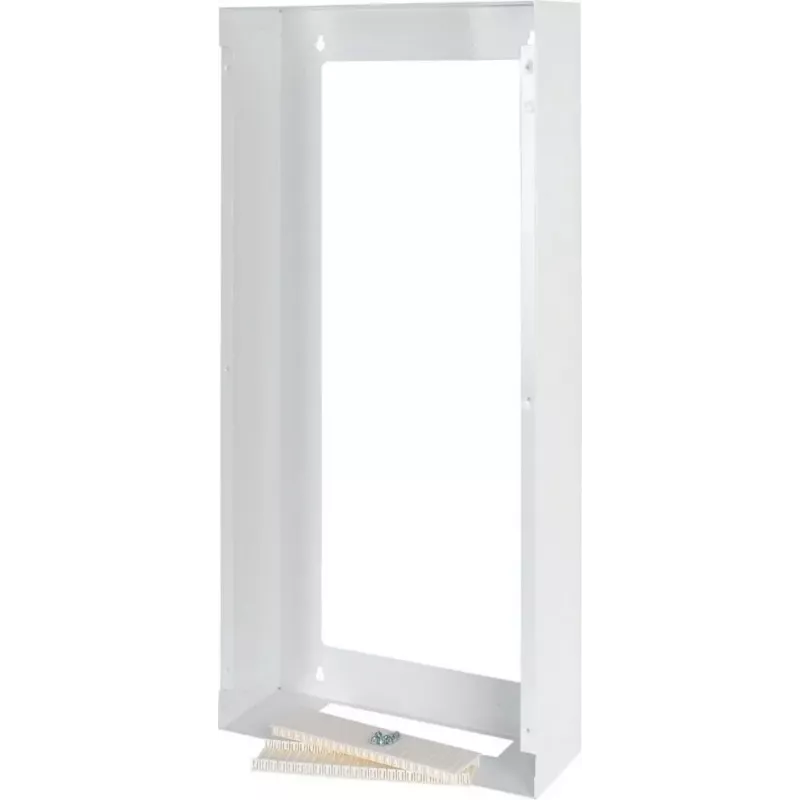

Caixa de superfície EATON APW4-KLV para quadro KLV, 4 filas, Branco

Installing a distribution board in a residential or commercial setting often requires a reliable enclosure that protects electrical components while allowing easy access. The EATON APW4-KLV surface-mounted enclosure solves this by providing a robust housing for 4-row KLV series distribution boards, accommodating both flat and super-flat designs. Its white RAL 9010 finish blends seamlessly into modern interiors, while the high-quality thermoplastic construction ensures durability and safety.

Who is it for

This enclosure is ideal for electricians, contractors, and building managers who need a dependable solution for surface-mounted electrical distribution in homes, offices, and light industrial spaces. It suits projects where flush mounting is not possible or where retrofitting is required.

Main features

• Compatible with Eaton KLV series distribution boards, flat and super-flat variants
• Four rows with capacity for up to 56 modules (14 per row)
• Surface-mounted design for easy installation on walls
• High-quality thermoplastic material, halogen-free
• White colour (RAL 9010) for a clean, professional look
• Protection class up to IP40 when combined with appropriate KLV components
• Glow-wire tested at 650 °C for enhanced fire safety
• Complies with DIN VDE 0603-1 and DIN 43871 standards

Specifications

• Brand: Eaton
• Model: APW4-KLV
• MPN: 193386
• EAN: 9010238019775
• Product type: Surface-mounted enclosure (back box)
• Number of rows: 4
• Enclosure dimensions: height 700 mm, width 360 mm, depth 90 mm
• Material: High-quality thermoplastic
• Colour: White (RAL 9010)
• Halogen-free: Yes
• Glow-wire test: 650 °C
• Operating temperature range: -5 °C to +40 °C
• Standards: DIN VDE 0603-1, DIN 43871

Tips

Ensure the wall surface is flat and capable of supporting the enclosure's weight. Use appropriate fixings for the wall type. For optimal protection, pair with compatible KLV front covers and accessories to achieve the rated IP40 protection. Always install in accordance with local electrical regulations.
