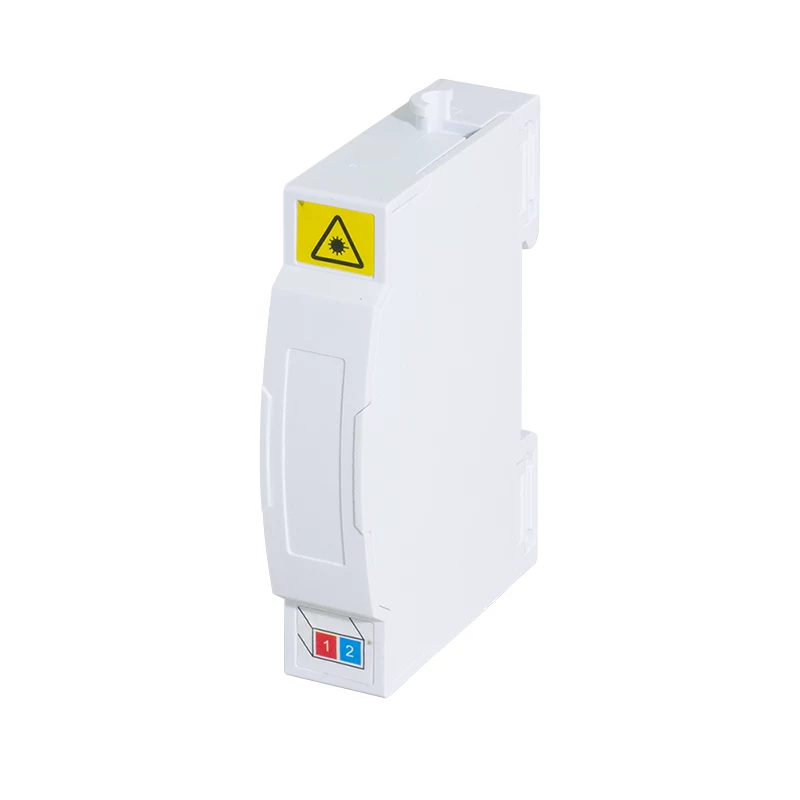

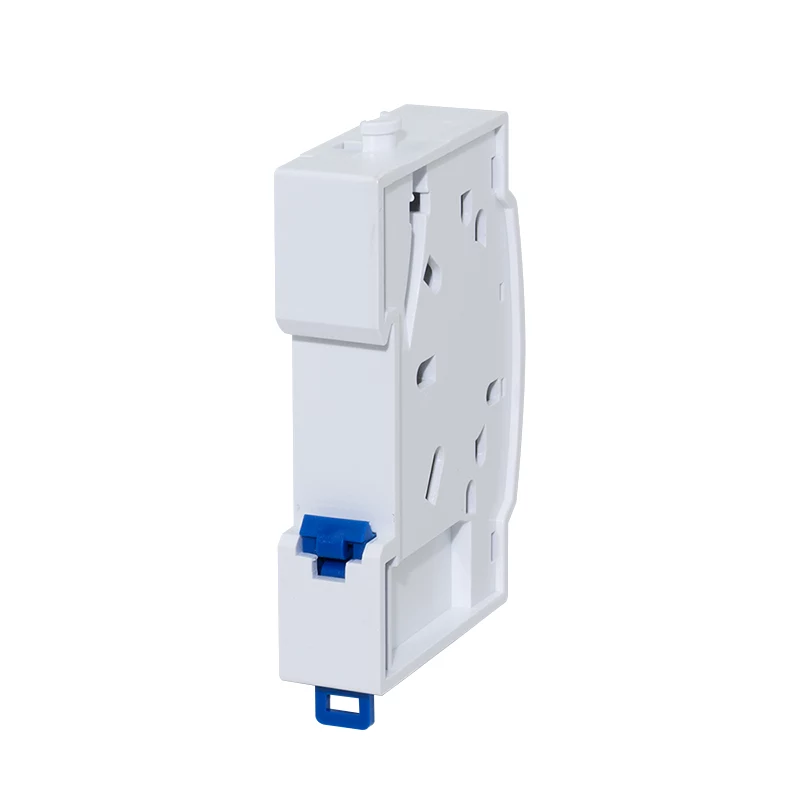

Caixa de terminação FTTH LogiLink para montagem em calha DIN, 2 portas, branco

Compact FTTH termination box for DIN rail mounting, offering a reliable solution for fiber optic termination in FTTH, FTTD, and FTTB applications. Its robust ABS plastic housing protects sensitive fiber splices, while the integrated holder for heat shrink splice protectors keeps splices organized and safe from mechanical stress. With support for up to two SC simplex or LC duplex adapters, this termination box is ideal for professional fiber deployments.

Advantages

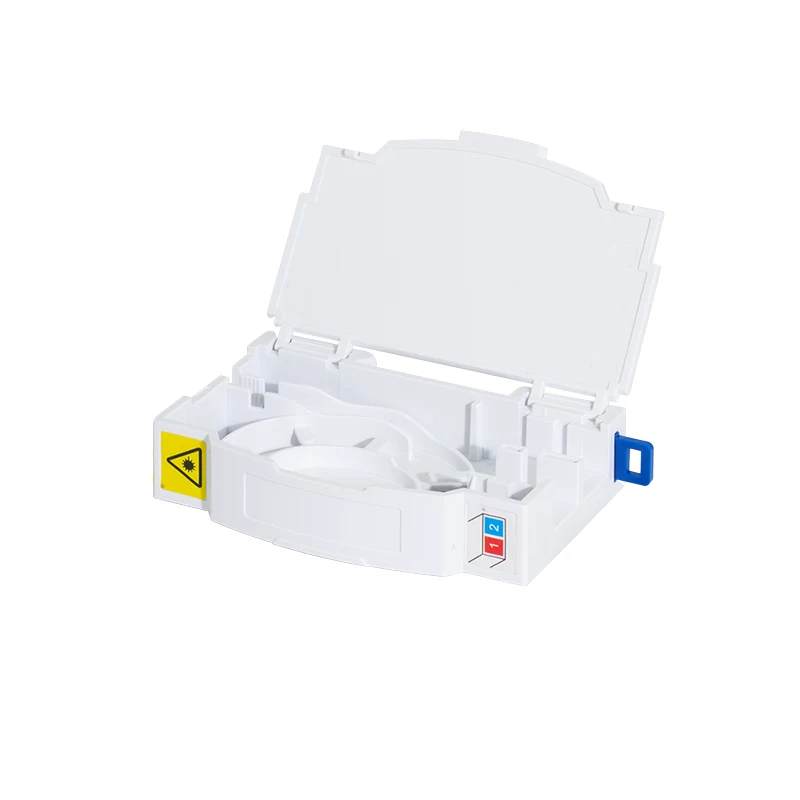

The termination box features a robust ABS plastic construction that provides excellent durability and protection for sensitive fiber splices. The integrated holder for heat shrink splice protectors keeps splices organized and safe from mechanical stress. Its compact dimensions (40 x 80 x 80 mm) save valuable space on DIN rails, and the multiple cable entry points (2x drop cable, 1x indoor cable) allow for flexible routing. The box is compatible with both single-mode and multi-mode fibers, making it versatile for various network architectures.

Suitable for

• FTTH (Fiber to the Home) installations
• FTTD (Fiber to the Desk) and FTTB (Fiber to the Building) deployments
• DIN rail mounting in distribution boxes, enclosures, or technical rooms
• Professional network installers and system integrators
• Indoor fiber termination with SC or LC connectors

Key specifications

• Product type: FTTH Termination Box
• Mounting type: DIN Rail (TS35)
• Port capacity: 2 ports (SC simplex or LC duplex)
• Splice capacity: max. 2 fusion or mechanical splices
• Material: ABS Plastic
• Colour: White
• Cable entry points: 2x drop cable, 1x indoor cable
• Operating temperature: -20°C to +70°C
• Storage temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Dimensions (W x H x D): 40 x 80 x 80 mm
• Compliance: RoHS, REACH

Recommendations

For a tidy and secure fiber termination in tight spaces, this DIN-rail mountable box is an excellent choice. Its compact size and versatile adapter support make it a practical solution for both residential and commercial fiber deployments.
