Caixa de tomada Type F Kindermann 5301170000 preto prateado

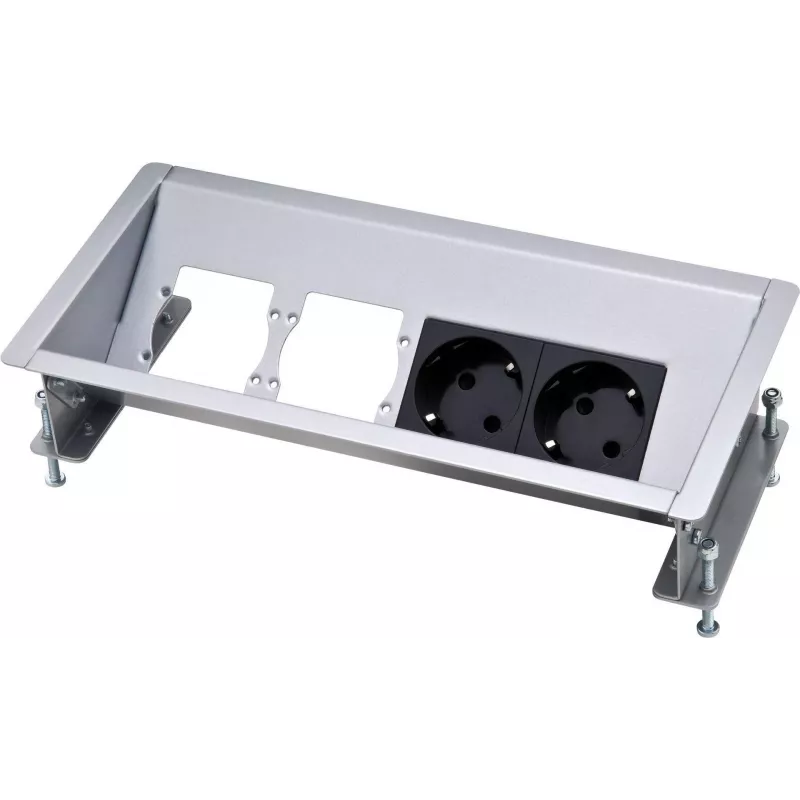

Open desktop casing for four adapter plates designed to be integrated into a table top. Compatible adapter plates: 7444 000 xxx (50 x 50 mm). The unit provides two mains modules and two empty modules, with mains connection via a 3‑pin Wieland GST 18 plug. The casing has a powder coated RAL 9006 silver finish with outside dimensions 252 x 125 mm and an installation depth of 82 mm; corner radius is 5 mm and required cut-out is 240 x 107 mm.

Advantages

The outlet box combines a compact footprint with a shallow installation depth for easy integration into desks and tables. Supplied with two mains positions and two empty module slots, it allows flexible configuration with standard 50 x 50 mm adapter plates. The Wieland GST 18 connector ensures a standardized, safe mains connection. Durable powder coated RAL 9006 surface offers corrosion resistance and a neutral appearance that pairs with black and silver finishes.

Suitable for

Key specifications

How to use

Prepare a cut-out in the tabletop measuring 240 x 107 mm and ensure at least 82 mm clearance below the surface for installation. Insert the casing into the cut-out and secure it according to the furniture manufacturer's instructions. Fit the 50 x 50 mm adapter plates (type 7444 000 xxx) into the module slots as required. Connect mains power using the 3‑pin Wieland GST 18 plug to the building supply or a compatible distribution system.

Recommendations

Verify compatibility of the adapter plates before installation and route cables to avoid sharp bends. Ensure the Wieland GST 18 connection is installed by a qualified electrician and conform to local electrical regulations.
