Caixa elétrica Rittal 1015.000 aço inoxidável IP66, 400x500x210 mm

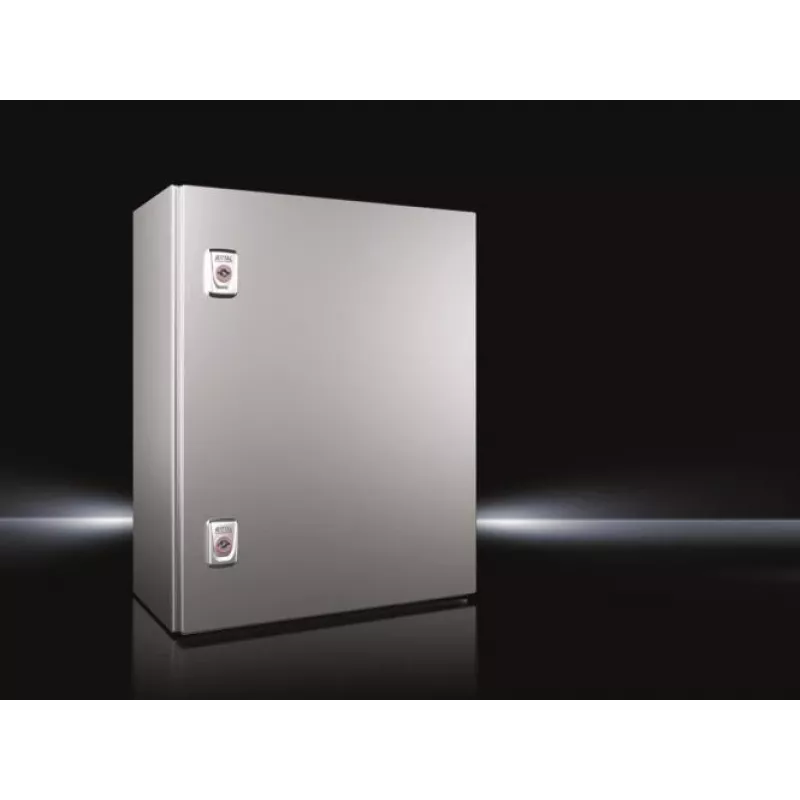

Rittal 1015.000 is a stainless steel electrical enclosure with IP66 protection, sized 400×500×210 mm, designed for secure housing of controls, terminal blocks and small switchgear in industrial, telecom and utility environments. The cabinet provides dust-tight and water-resistant protection for indoor and outdoor installations and features an integral locator system that enables fast, easy and reliable system configuration without drilling.

Advantages

The enclosure combines corrosion-resistant stainless steel construction with IP66-rated sealing to protect internal equipment from dust and heavy jets of water. Its compact dimensions of 400 mm width, 500 mm height and 210 mm depth make it suitable where space is limited. The integral locator system simplifies assembly and mounting of accessories and internal components without the need for additional drilling, reducing installation time and preserving the enclosure integrity. With a weight of 11.2 kg, the unit remains manageable for handling and mounting.

Suitable for

When it may not be suitable

The Rittal 1015.000 is not intended for very large switchgear assemblies or dense equipment layouts that require substantial internal working space beyond its 400×500×210 mm dimensions. It may also be unnecessary for non-corrosive, purely dry indoor environments where a lower IP rating or less robust materials would be more cost-effective.

Key specifications

How to use

Install the enclosure on a prepared mounting surface using appropriate fasteners and wall anchors for the substrate. Open the door and use the integral locator system to position internal mounting rails, panels or accessory brackets; this allows secure placement of terminal blocks, controllers and compact switchgear without drilling new holes. Ensure all cable entries are made using compatible gland plates or conduit fittings rated for IP66 to maintain the enclosure protection. After installing equipment, close and secure the door, checking gaskets and fasteners for correct compression to preserve the IP66 rating.

What to consider before purchase

Recommendations

For best performance, use corrosion-resistant fasteners and IP66-rated cable glands, and routinely inspect door seals and mounting points. When deploying outdoors, position the enclosure to minimize direct exposure to splashing from below and allow sufficient airflow around the unit for heat dissipation of installed equipment.
