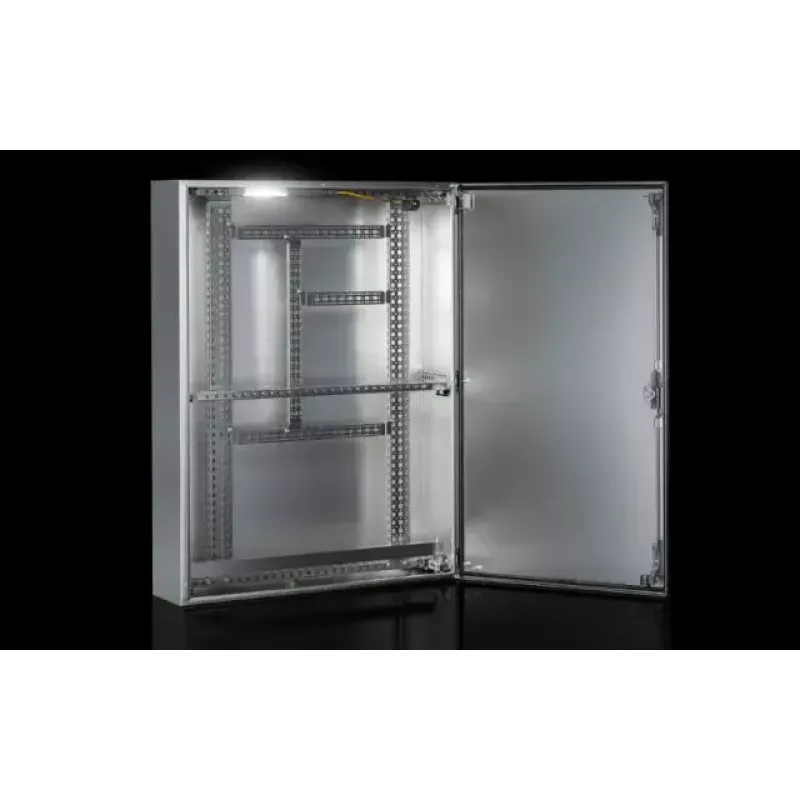

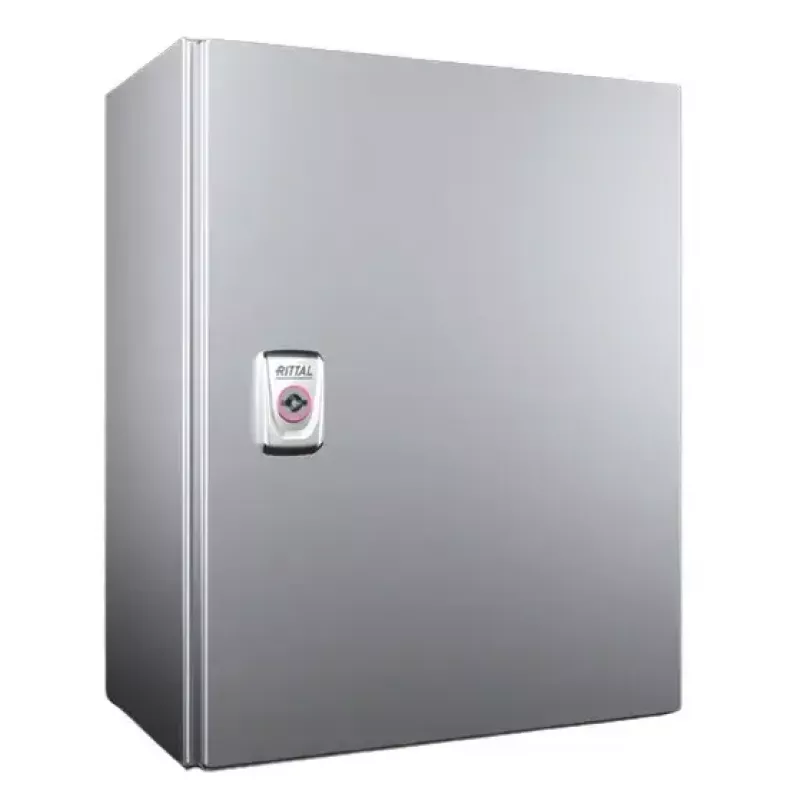

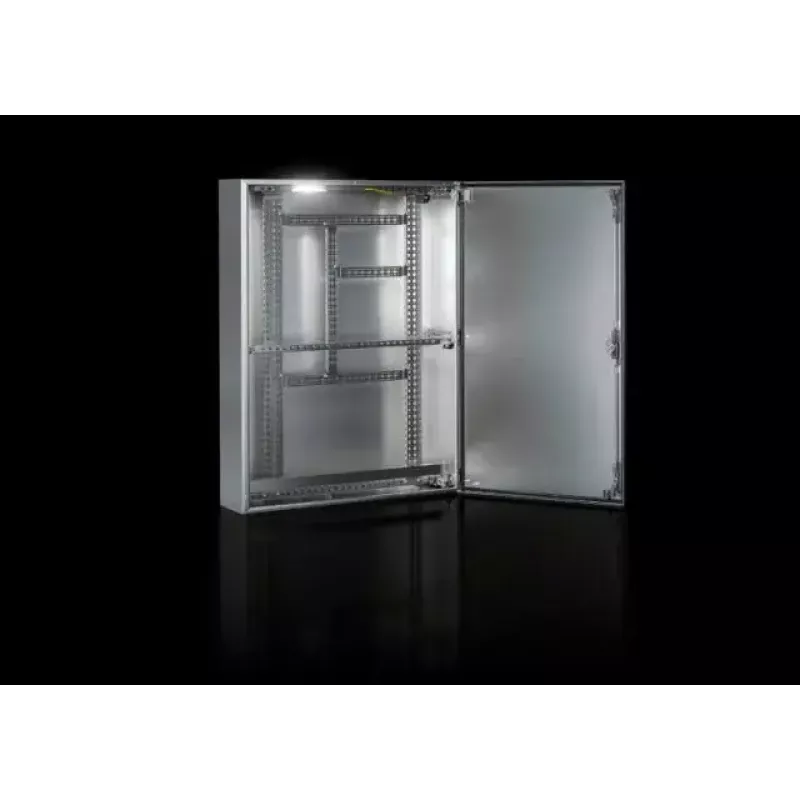

Caixa elétrica Rittal 1302.000, aço inoxidável, 300×210×380 mm, IP66

Rittal 1302.000 is a stainless steel electrical enclosure with external dimensions 300×210×380 mm (W×D×H) and IP66 protection. Designed to house electrical and electronic components, the enclosure provides dust-tight sealing and protection against powerful water jets, making it suitable for both indoor and outdoor installations. The robust stainless steel construction resists corrosion and mechanical stress while an integral locator system allows tool-free, flexible configuration without drilling.

Advantages

The stainless steel material ensures long-term corrosion resistance and mechanical stability in demanding environments. IP66 rating offers reliable protection against dust ingress and high-pressure water, supporting outdoor and washdown applications. The integral locator system simplifies assembly and internal layout changes, reducing installation time and avoiding alteration of the enclosure body. Smooth internal surfaces and a uniform finish support easy cleaning and maintenance.

Suitable for

Key specifications

How to use

Mount the enclosure on a suitable surface using appropriate hardware rated for the installation environment. Open the enclosure using the designated latches or hinges to install electrical components, DIN rails or mounting plates as required. Use the integral locator system to position internal mounting elements and accessories without drilling; secure components following manufacturer torque and mounting recommendations. Ensure all cable entries and conduit connections use compatible sealing glands to preserve the IP66 rating. After installation, verify seals and fasteners are properly engaged and perform functional checks of contained equipment.

Recommendations

For reliable ingress protection, use cable glands and conduit fittings rated for IP66 and compatible with stainless steel housings. Avoid exposure to aggressive chemicals that can attack stainless steel grades; select cleaning agents suitable for stainless steel surfaces. When installing outdoors, provide appropriate mounting clearances and consider additional protective measures against prolonged splashing or direct jets if operating conditions exceed standard washdown scenarios.
