Caixa elétrica Rittal 9522.100 — poliamida/policarbonato IP66, 254×165×180 mm

Rittal 9522.100 is a compact electrical enclosure that combines a fibre-glass reinforced polycarbonate body with polyamide and polycarbonate components. With external dimensions of 254×165×180 mm and IP66 protection, this enclosure is designed to protect electrical and electronic equipment from dust and strong water jets. The unit is suitable for indoor and outdoor installations where a robust, dust-tight and water-resistant housing is required; covers are available in grey or transparent finishes to accommodate visibility and access needs.

Advantages

The enclosure delivers IP66 ingress protection for reliable sealing against dust and high-pressure water. Its combination of fibre-glass reinforced polycarbonate and polyamide components provides mechanical strength, impact resistance and long-term weatherability. The available transparent cover option allows visual inspection of internal components without opening the housing, while the grey cover offers a discreet, uniform appearance. Compact external dimensions make it applicable where space is limited.

Suitable for

• Housing small control units, relays and terminal blocks
• Protecting junctions and distribution points in machinery and equipment
• Outdoor sensors and controllers that require dust and water protection
• Applications that need visual monitoring through a transparent cover

Key specifications

• Material: fibre-glass reinforced polycarbonate body with polyamide and polycarbonate components
• Protection rating: IP66 (dust-tight, protected against powerful water jets)
• External dimensions (W×D×H): 254 × 165 × 180 mm

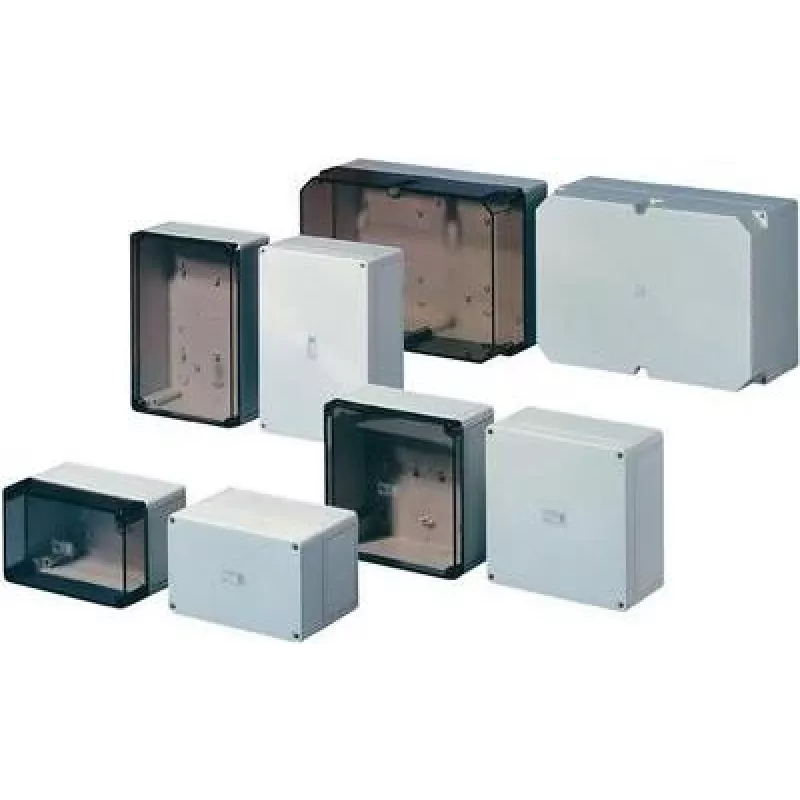

• Cover options: grey or transparent
• Mounting: surface-mountable enclosure suitable for indoor and outdoor use

How to use

Mount the enclosure on a stable surface using appropriate fasteners and ensure the sealing surfaces are clean before closing the cover. Route cables through suitable glands or conduit entries compatible with the housing while maintaining the IP66 rating; use compatible cable glands and sealing elements. Install electrical or electronic components on a backplate or DIN-rail if available, securing all internal wiring and avoiding sharp edges. After assembly, tighten the cover fasteners to the manufacturer’s recommended torque to maintain the seal.

Recommendations

For best performance, select cable glands and mounting hardware rated for outdoor use and compatible with polycarbonate and polyamide materials. Avoid prolonged exposure to aggressive chemicals that may affect plastic components. If using the transparent cover option, clean with non-abrasive cleaners to preserve visibility and inspect seals periodically to ensure continued IP66 protection.
