Caixa elétrica Rittal 9523.100 — poliamida/policarbonato, 360×111×254 mm, IP66

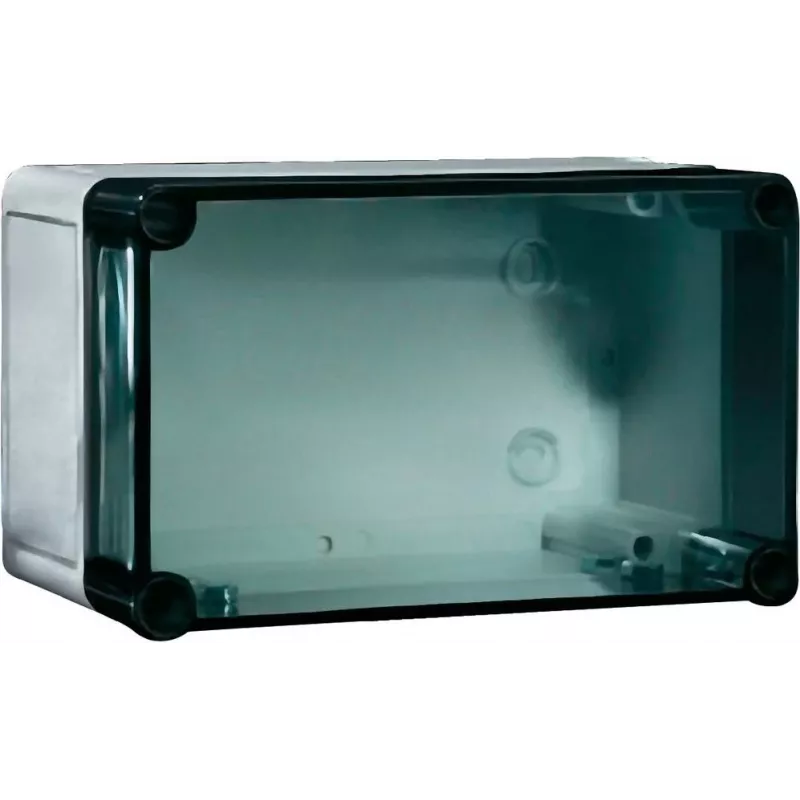

Rittal 9523.100 is a compact electrical enclosure constructed from glass-fibre reinforced polycarbonate with options for a grey or transparent cover. With external dimensions of 360×111×254 mm and an IP66 protection rating, the enclosure is designed to protect electrical components and wiring from dust ingress and powerful water jets, making it suitable for indoor and outdoor installations that require robust environmental protection.

Advantages

The material combination of polyamide and glass-fibre reinforced polycarbonate provides mechanical strength, good impact resistance and long-term dimensional stability. The IP66 rating ensures protection against dust and strong water jets, while the available transparent cover option enables visual inspection of status indicators and controls without opening the enclosure. Compact dimensions allow installation in limited spaces and make the unit easy to mount on walls, panels or machinery.

Suitable for

Key specifications

How to use

Select a suitable mounting location that provides access for cabling and complies with applicable clearances. Fix the enclosure securely to a flat surface using appropriate fasteners for the mounting substrate. Route incoming and outgoing cables through suitable cable glands or conduits compatible with the enclosure’s IP66 rating to maintain ingress protection. Install internal components on the provided mounting surface or internal plates, ensuring that terminals and wiring are secured and insulated according to applicable wiring standards. If using the transparent cover, verify that seals and fasteners are properly engaged after installation to preserve the protection class.

Recommendations

To maintain the IP66 protection level, use compatible cable glands and ensure sealing surfaces are clean before assembly. Avoid drilling or modifying the housing without applying appropriate sealing measures. For applications exposed to continuous sunlight, choose the transparent cover only if required for monitoring, and perform periodic inspections of seals and fasteners to ensure long-term weather resistance.
