Caixa elétrica Rittal PK 9506.000 policarbonato IP66, 110×66×110 mm

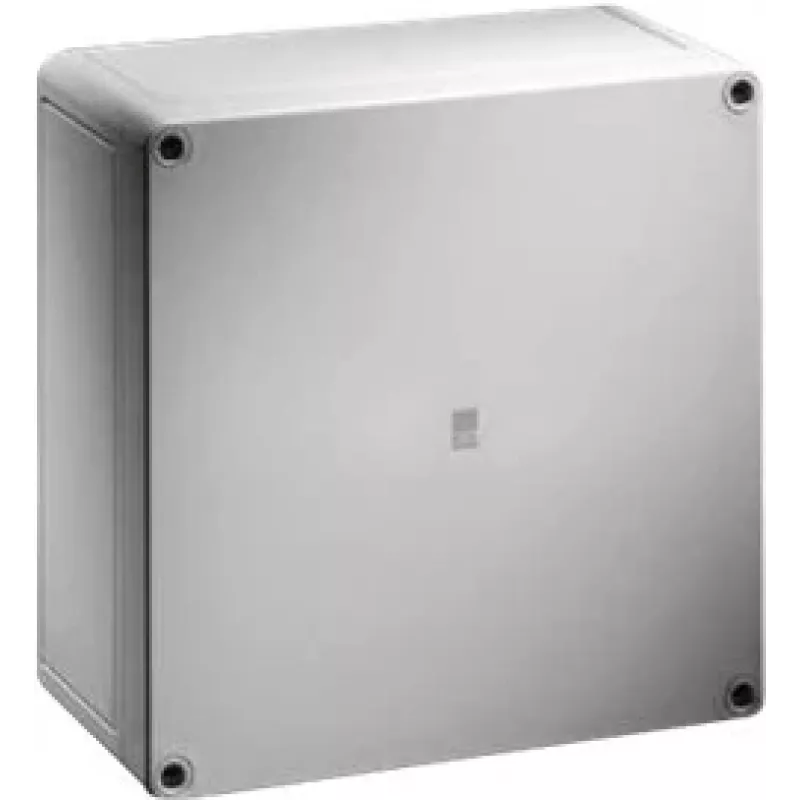

Rittal PK 9506.000 is a compact electrical enclosure made of fibre-glass reinforced polycarbonate with a grey or transparent cover, offering IP66 protection. With external dimensions of 110 × 66 × 110 mm, the enclosure is designed to house small controls, terminal blocks, sensors and other electrical components where dust-tight and water-resistant protection is required for indoor or outdoor installation.

Advantages

The polycarbonate construction reinforced with fibreglass provides impact resistance and dimensional stability while keeping the enclosure lightweight. IP66 rating ensures protection against strong water jets and complete ingress of dust, making the enclosure suitable for demanding environments. The option of a transparent cover allows visual inspection of internal components without opening the box, and the grey cover provides a discreet, uniform exterior. The compact footprint and standard mounting features support straightforward installation and integration into control panels or machinery.

Suitable for

Key specifications

How to use

Open the enclosure using the appropriate fasteners, position internal components such as terminal blocks, relays or sensor leads on the provided mounting surfaces or accessory plates, and secure them with compatible screws. Route incoming and outgoing cables through suitable gland entries or knockouts, ensuring cable glands and seals match the cable diameter to maintain IP66 performance. After wiring and internal checks, close the cover and fasten all screws to the specified torque to preserve the enclosure’s ingress protection.

Recommendations

For outdoor use or exposure to direct water jets, use appropriately rated cable glands and ensure seals are intact after installation. When visual monitoring is needed, choose the transparent cover; for reduced sunlight transmission or a uniform look choose the grey cover. Avoid exposure to aggressive chemicals or solvents not compatible with polycarbonate to prevent material degradation.
