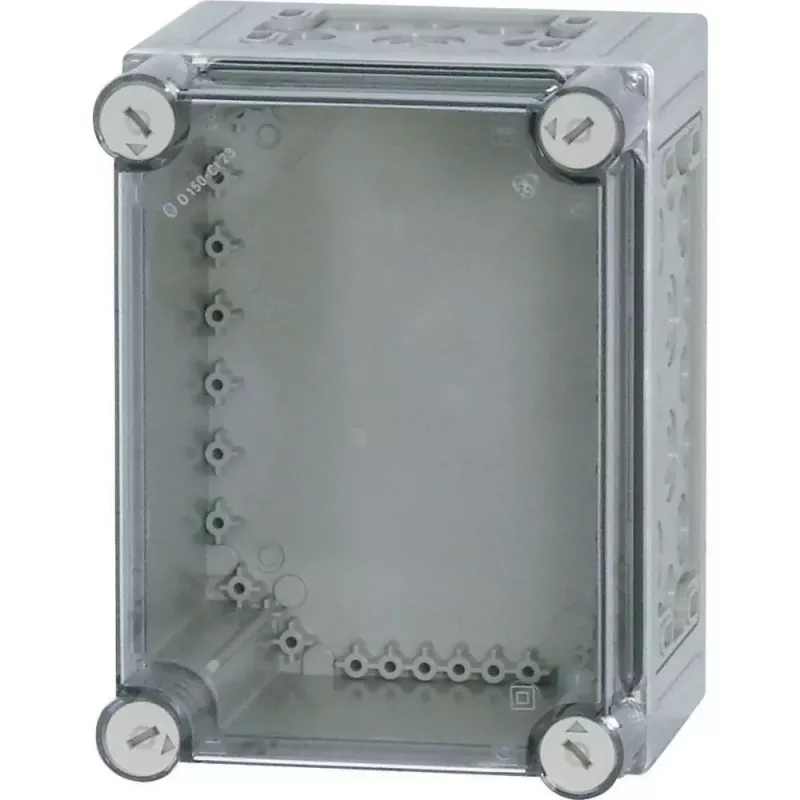

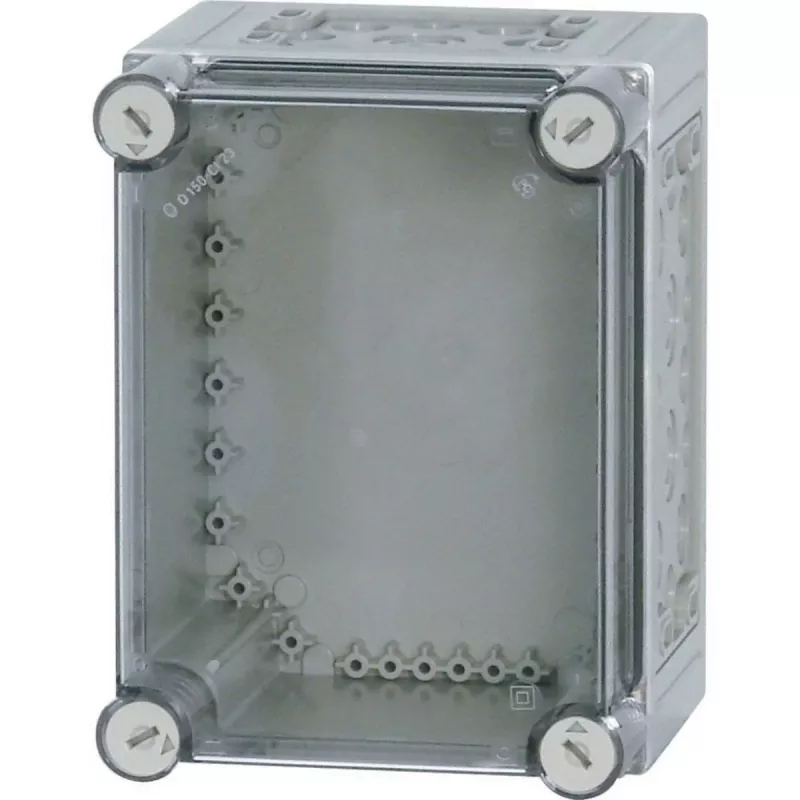

Caixa isolada em policarbonato Eaton CI23E-150 com pré-cortes métricos, IP65, cinzento 021943

Where standard junction boxes fall short in harsh industrial environments, the Eaton CI23E-150 steps in with a rugged polycarbonate build, pre-formed metric knockouts, and a secure quarter-turn lid. This insulated enclosure is engineered for fast, reliable installation in control and distribution applications, offering protection against dust, water, and mechanical impact without the need for additional drilling.

Highlights

• High-grade polycarbonate housing, halogen-free and UV-resistant for long outdoor life
• IP65 protection against dust and water jets; IK08 impact resistance
• Pre-embossed metric knockouts: top/bottom 2xM20/25 and 1xM32/40, sides 2xM20/25
• Tool-free lid with plastic quarter-turn screws for quick access
• Wide operating temperature range from -40°C to +80°C
• Flammability rating UL94-V0 and glow wire tested at 960°C

In daily use

The CI23E-150 simplifies field wiring. Knockouts are clearly marked and easy to remove with a screwdriver, eliminating the need for hole saws. The opaque grey cover conceals internal components while the polyurethane seal ensures a lasting, dust-tight closure. Mount it on a wall or flat surface using the integrated fixing points; the enclosure remains stable even under vibration. Its compact size suits motor starters, sensor interfaces, and small distribution tasks.

Full specifications

• Material: Polycarbonate, halogen-free, UV-resistant
• Colour: Grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK08
• Cover type: Opaque, with plastic quarter-turn screws
• Mounting type: Surface / wall mounting
• Pre-embossments: Metric knockouts (top/bottom: 2xM20/25, 1xM32/40; sides: 2xM20/25)
• Rated insulation voltage: 1000 V AC / 1500 V DC
• Rated operational voltage: 690 V AC
• Operating temperature: -40°C to +80°C
• Flammability rating: UL94-V0
• Glow wire test: 960°C (IEC/EN 60695-2-11)
• Seal material: Polyurethane
• Standards: IEC/EN 62208, IEC/EN 60670-1, IEC/EN 60670-22

Final note

For electricians and panel builders who need a dependable, pre-punched enclosure that meets strict safety standards, the Eaton CI23E-150 delivers consistent performance in a compact, easy-to-install package.
