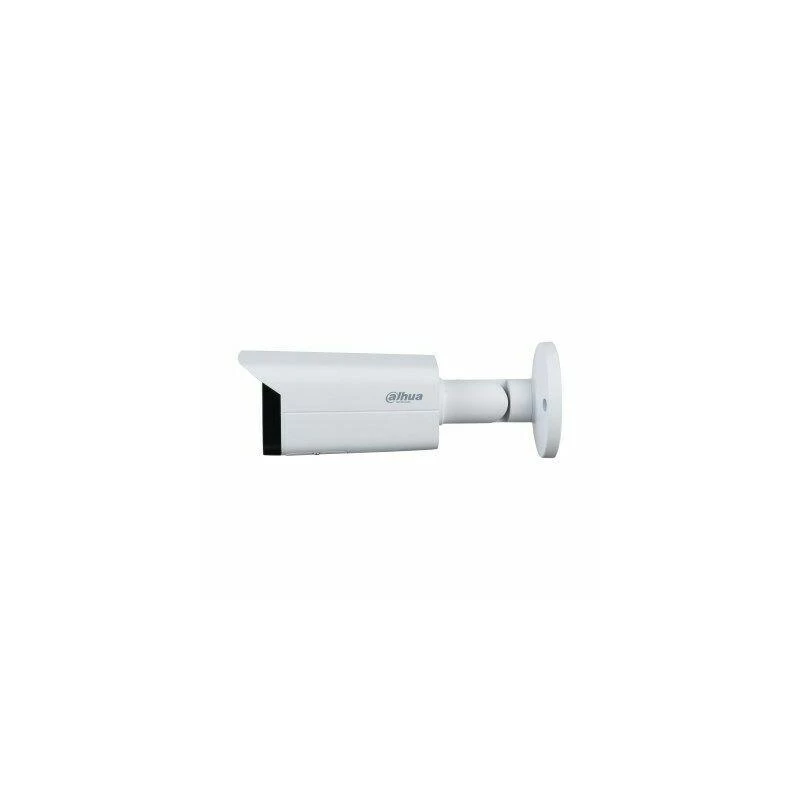

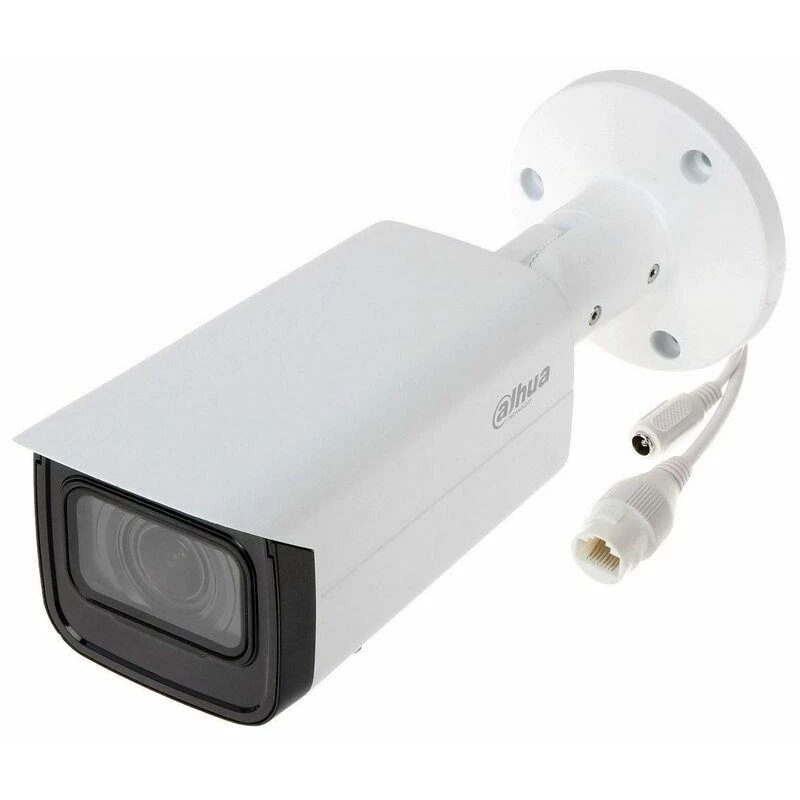

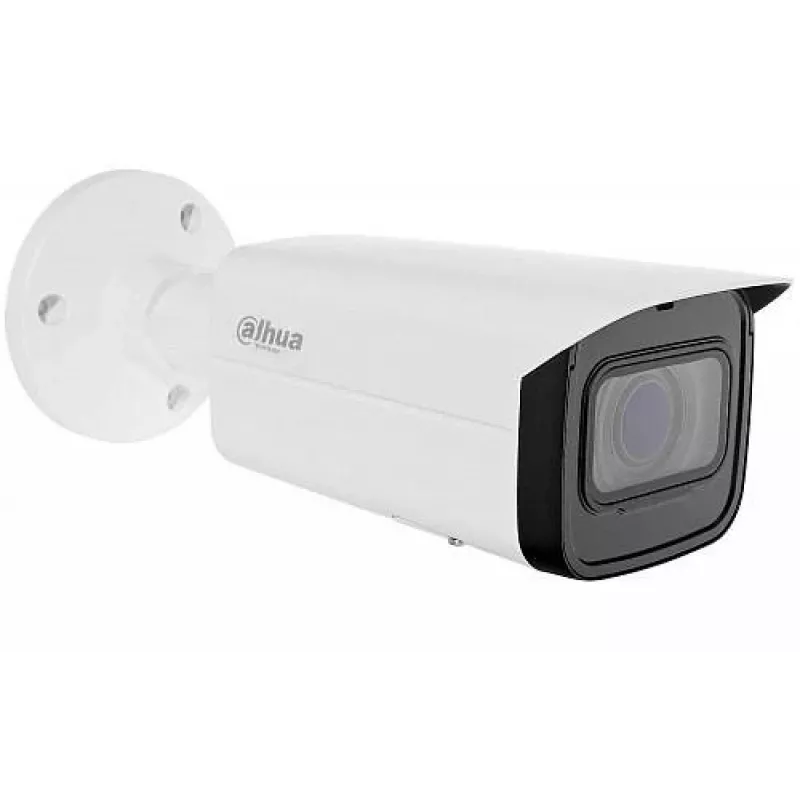

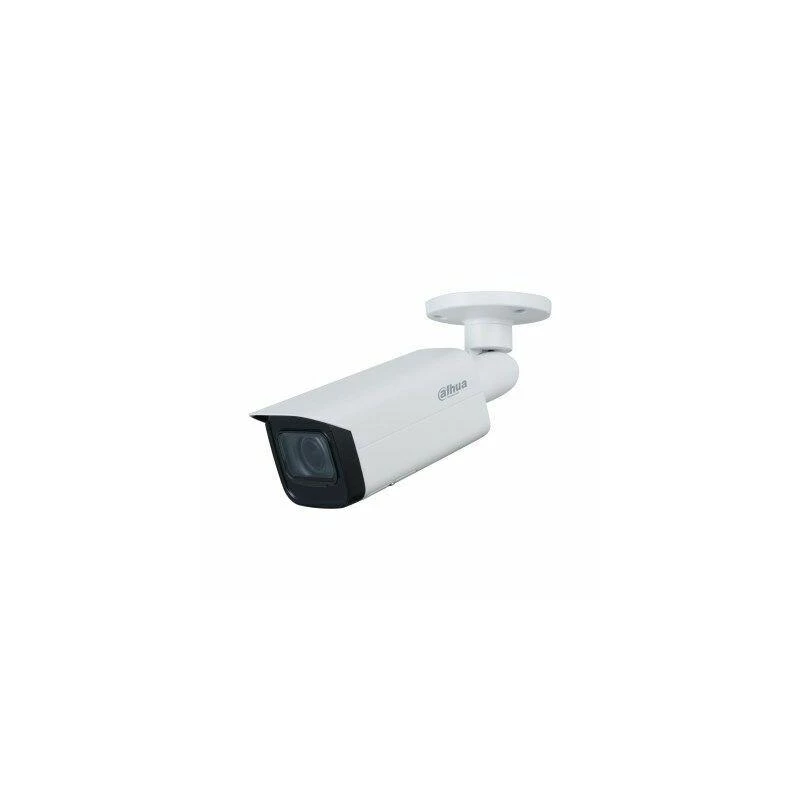

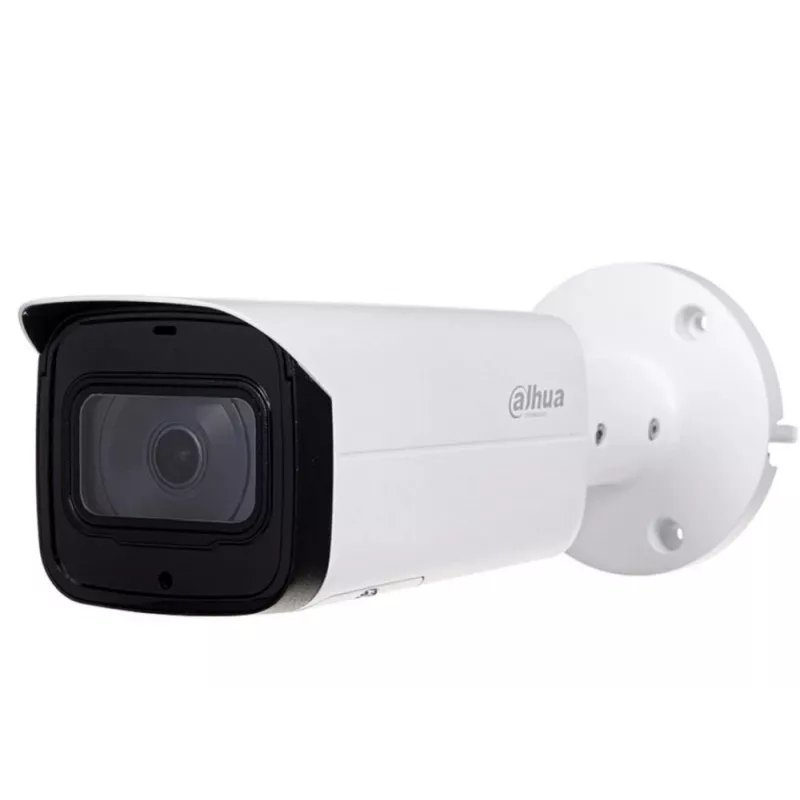

Câmara de segurança Dahua Technology Entry IPC-HFW1230T-ZS-S5 bullet IP câmara de vigilância exterior 1920 x 1080 píxeis montagem em teto/parede/poste

The Dahua Technology IPC-HFW1230T-ZS-S5 is an outdoor bullet IP security camera with 1920 x 1080 resolution designed for small and medium-sized scenes such as homes, small retail stores and other SMEs. It supports wired Ethernet connectivity, ceiling/wall/pole mounting and offers motorized zoom (2.8–12 mm) with motorized and manual focus options. The camera delivers low-light performance (minimum illumination 0.0005 lx), wide viewing angles with 360° rotation and 0–90° tilt range, and is rated for outdoor use with IP67 protection and wide voltage tolerance.

Advantages

The camera implements Smart H.265+ and Smart H.264+ encoding to reduce bandwidth and storage requirements while retaining image quality. Motion detection triggers recording or alarms when movement is detected. Smart Illumination adapts IR/lighting intensity to target distance to reveal detail in low or no-light conditions. Built-in cybersecurity features provide authentication, access control and encrypted transmission/storage. Durable construction with IP67 ingress protection and wide input voltage tolerance suits outdoor installations.

Suitable for

• Home and residential surveillance
• Small retail shops and boutiques
• Small and medium-sized enterprises (outdoor perimeter monitoring)
• Outdoor entrance, driveway and parking monitoring

Key specifications

• Model: Dahua IPC-HFW1230T-ZS-S5
• Resolution: 1920 x 1080 (Full HD)
• Lens: 2.8–12 mm motorized zoom; optical size 25.4 / 2.8 mm
• Sensor: CMOS; identification distance up to 13 m
• Frame rate: up to 30 fps
• Minimum illumination: 0.0005 lx
• Mounting: ceiling / wall / pole
• Connectivity: wired Ethernet
• Environmental rating: IP67; wide voltage tolerance (±30%)
• Colors: White, Black
• Weight: 0.86 kg

How to use

Mount the camera on a ceiling, wall or pole using suitable hardware for the chosen surface and ensure correct orientation within the 0–90° tilt and full rotation range for the required coverage. Connect the camera to a PoE-capable Ethernet switch or provide the appropriate power source within the specified voltage tolerance. Configure network settings and enable desired features such as Smart H.265+/H.264+, motion detection and illumination parameters through the Dahua configuration interface or an NVR. Perform focus and zoom adjustments using the motorized zoom and focus controls, then verify image framing and low-light performance on-site.

Recommendations

Install the camera at a height and angle that minimise obstructions and reduce direct exposure to strong light sources. Use a stable wired Ethernet connection and, where possible, PoE to simplify power and data cabling. Regularly check firmware updates and secure device access with strong passwords and network-level protections.
