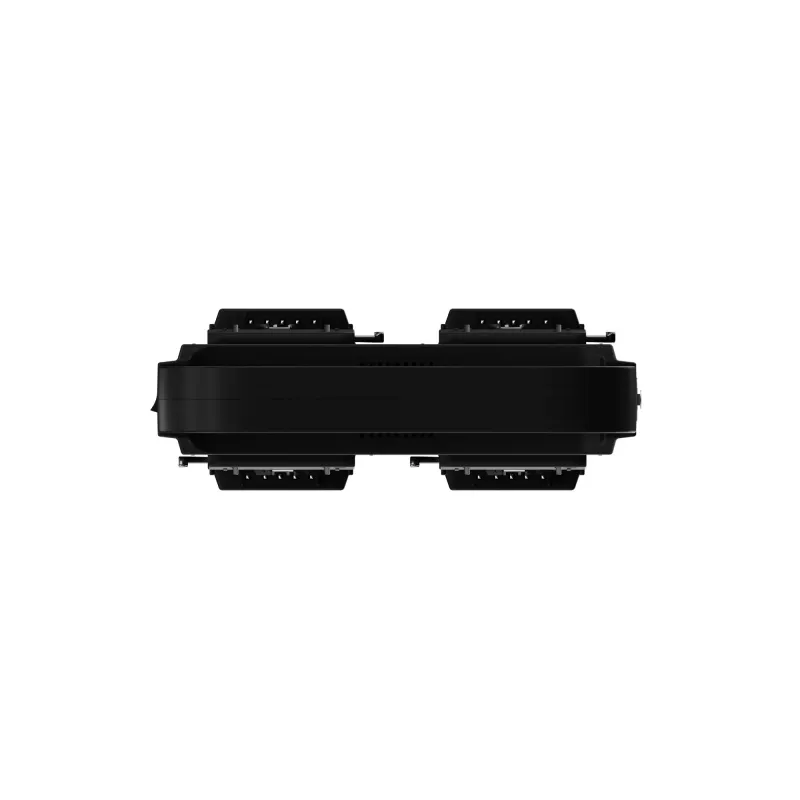

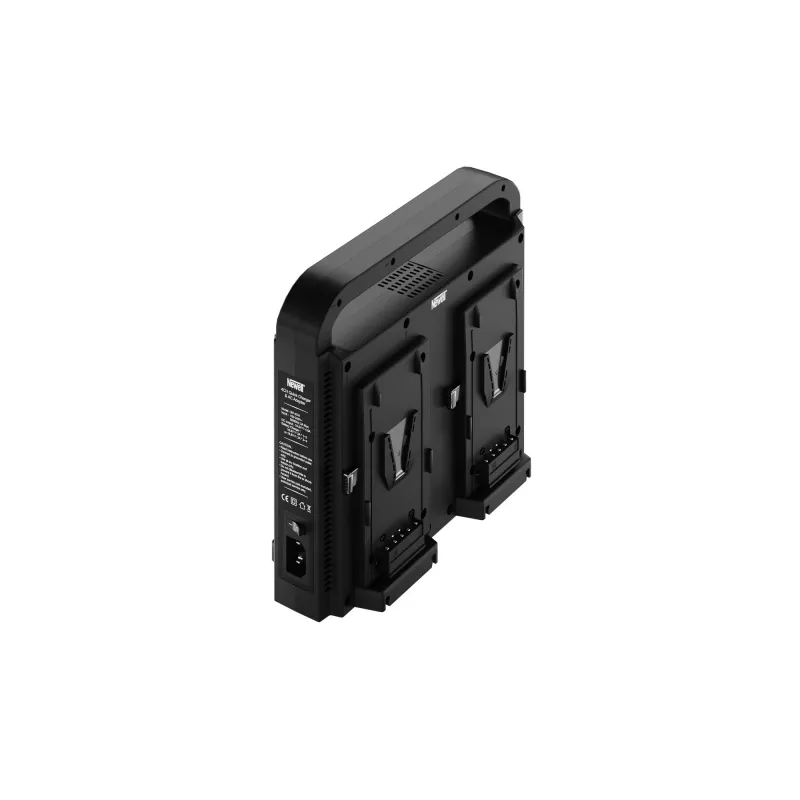

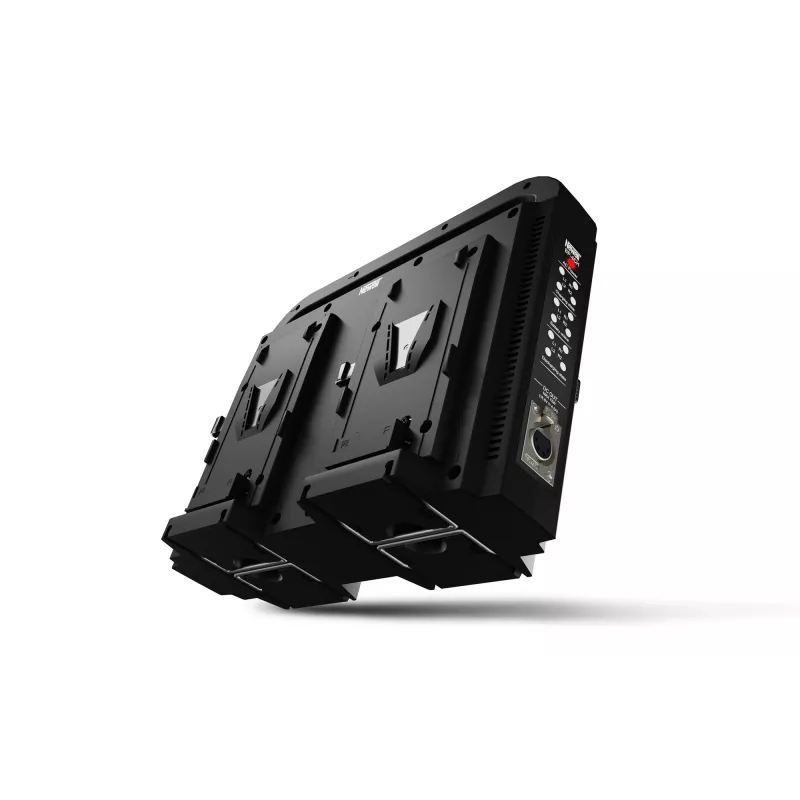

Carregador de bateria V-Mount de 4 canais Newell BP-4CH

The Newell BP-4CH is a professional 4-channel battery charger designed for V-Mount (V-Lock) batteries. It offers simultaneous charging of up to four batteries with individual 3A output per channel, ensuring efficient power management for demanding video and photography workflows. The charger features an LCD display that shows charging status, voltage, current, and capacity, and includes comprehensive protection against over-voltage, over-current, short-circuit, and over-temperature. With a fan-assisted cooling system and durable ABS/metal chassis, it is built for reliable daily use.

Advantages

Simultaneously charge up to four V-Mount batteries, reducing downtime. The LCD display provides real-time charging information, while the integrated 4-pin XLR DC output (15V/4.5A) allows powering cameras or accessories directly. Protection features ensure safe operation, and the fan cooling maintains optimal performance.

Suitable for

• Professional videographers and photographers using V-Mount batteries
• Studio and field production environments requiring multi-battery charging
• Users needing a DC power source for cameras or monitors

Key specifications

• Charging Channels: 4
• Battery Compatibility: V-Mount (V-Lock)
• Input: AC 100-240V, 50/60 Hz
• Charging Output: DC 16.8V, 3A per channel (total 12A)
• DC Power Output: 4-pin XLR, DC 15V, 4.5A
• Display: LCD (status, voltage, current, capacity)
• Protection: Over-voltage, over-current, short-circuit, over-temperature
• Max Power Consumption: 200W
• Cooling: Fan-assisted
• Housing: ABS plastic and metal chassis
• Operating Temperature: 0°C to 40°C
• Included: AC power cable

Recommendations

For optimal performance, use with genuine Newell V-Mount batteries. Ensure adequate ventilation during charging.
