Carregador móvel universal InLine 31516B preto carregamento rápido AC para interiores

Simultaneous charging of up to ten devices:Enables parallel charging of up to ten USB-C devices with support for Power Delivery 3.0 and Quick Charge 5.0.
Powerful charging distribution with up to 1000 watts of total power:Up to 100 watts per port are reliably provided, even when all ports are in use simultaneously.

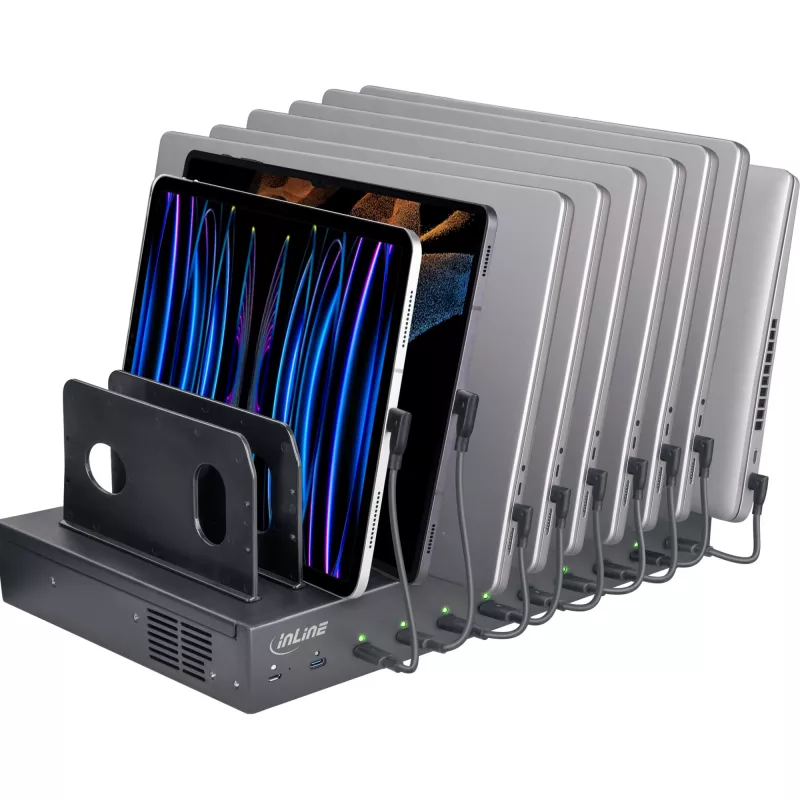

Professional device organisation with modular separation:Separators in two sizes included in the scope of delivery ensure orderly storage and a clear structure in the workplace.
Comprehensive compatibility for professional IT infrastructures:Supports modern fast charging standards and is suitable for notebooks, tablets, smartphones and other mobile devices. Multiport Powerstation with a total output of 1000 watts is the ideal solution for professional IT environments where a large number of mobile devices need to be charged simultaneously. Whether in technical rooms, training centres, service points or modern offices, the compact power supply reliably provides power for notebooks, tablets, smartphones and other USB-C-compatible devices via ten USB-C ports. Up to 100 watts per port are available without any loss of performance at full capacity. Thanks to the included separators in two lengths, devices can be neatly positioned next to each other and stored in an organised manner. The sturdy design makes the power supply particularly attractive for system houses, IT departments or educational institutions. Support for current fast charging standards such as Power Delivery 3.0 and Quick Charge 5.0 ensures high compatibility and future-proofing. Conventional USB devices can also be connected without any problems and are charged reliably. With the InLine® Multiport Powerstation, professional users get a powerful and flexible charging unit for demanding continuous use.

10-port USB-C power supply with optional app control
Power Delivery 3.0 and Quick Charge 5.0 compatible
Input voltage: 100– 240 V AC / 12 A max.
Input frequency: 50/60 Hz
USB-C output:
5.0 V / 3.0 A / 15.0 W
9.0 V / 3.0 A / 27.0 W
12.0 V / 3.0 A / 36.0 W
15.0 V / 3.0 A / 45.0 W
20.0 V / 5.0 A / 100.0 W

Protective functions: Overvoltage protection, short-circuit protection Thermal protection with automatic resumption of charging after cooling Active cooling at internal temperatures above 70 °C, passive cooling below this value Dimensions (L × W × H): approx. 340 × 213 × 46 mm
Weight: 3.3 kg (5 kg including all accessories)
Scope of delivery:
1× InLine® Multiport power supply
11‘ splitter 123 mm
11’ splitter 82 mm
1‘ power cable, approx. 1.5 m
1’ operating instructions (DE/EN)

InLine 31516B. Charger type: Indoor, Power source type: AC, Charger compatibility: Universal. Input voltage: 100 - 240 V, Maximum output voltage: 20 V. USB Type-C ports quantity: 10, Fast charging, Power protection features: Over voltage, Overheating, Short circuit. Cable length: 1.5 m, Product colour: Black

How to use

Place the unit on a stable, well-ventilated surface and position devices in the supplied separators so that ventilation openings are not obstructed. Connect the power cable to a suitable AC outlet (100–240 V) and plug USB-C cables from devices into the ports required. The powerstation automatically negotiates the appropriate voltage and current per device according to PD 3.0 or QC 5.0 standards. Ensure the unit has adequate airflow during extended charging sessions to allow active cooling to operate when necessary.

Recommendations

For reliable long-term operation, avoid enclosing the unit in fully sealed cabinets and allow at least 5–10 cm clearance around the device for ventilation. Do not block cooling vents and follow local electrical safety rules. Use certified USB-C cables and connect devices one at a time to verify charging behaviour if integrating into a new provisioning workflow.
