Chief CMS009012W Acessório para suporte de projetor Coluna roscada Branco

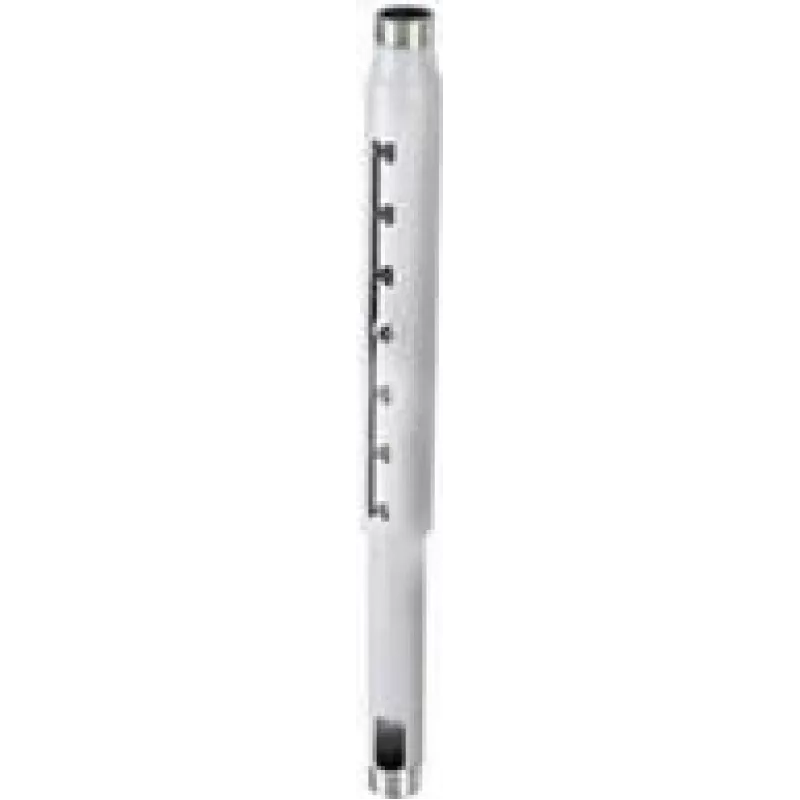

The Chief CMS009012W is a 9–12" adjustable threaded extension column for projector mounting. Designed for 1.5" NPT systems, this white-finished column provides secure attachment to compatible ceiling plates and accessories while allowing fine vertical positioning of the projector without requiring full disassembly.

Advantages

The column offers height adjustment in 1" increments with a notched design that permits repositioning without removing the assembly. It is threaded on both ends (1.5" NPT) for straightforward installation with Chief 1.5" NPT ceiling plates or other compatible accessories, and it includes a set screw to increase stability once the desired length is set.

Suitable for

• Adjusting projector height in commercial AV installations
• Residential home theater ceiling mounts
• Retrofit or new installations that use 1.5" NPT mounting systems

Key specifications

• Model: Chief CMS009012W
• Adjustable length: 9–12 inches (adjustable in 1" increments)
• Thread: 1.5" NPT, threaded on both ends
• Finish: White
• Includes: Set screw for added stability

How to use

Attach one threaded end of the CMS009012W to a compatible 1.5" NPT ceiling plate or accessory, then extend or retract the column to the required height using the notched increments. Once the projector is positioned, tighten the set screw to secure the column and prevent movement. Verify that all threaded connections are fully engaged and torque to the manufacturer’s recommended values for a safe installation.

Recommendations

Use only with compatible 1.5" NPT Chief ceiling plates or equivalent accessories; confirm load ratings of the entire mount assembly and follow local building and electrical codes during installation.
