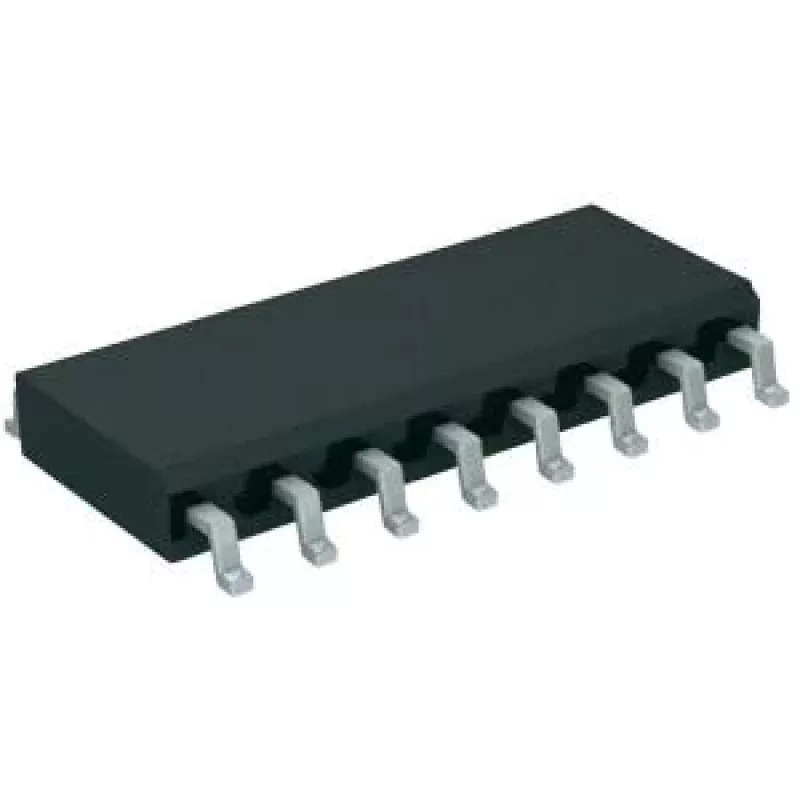

CI amplificador de instrumentação/operacional Texas Instruments INA2126UA, caixa SOIC-16

Texas Instruments INA2126UA is an instrumentation and operational amplifier IC supplied in a 16-pin SOIC package. It combines multiple amplifier functions to provide precision signal conditioning and low-noise amplification for analog front-end designs. The device is intended for compact PCB layouts where space efficiency and reliable analog performance are required for sensor interfaces, data acquisition and measurement instrumentation.

Advantages

The INA2126UA integrates high-precision amplification stages in a single SOIC-16 package, reducing the need for multiple discrete components and simplifying board layout. Its design emphasizes low noise and accurate signal conditioning, which helps maintain signal integrity in measurement paths. The standard SOIC-16 footprint enables straightforward placement in both prototyping and production PCBs while keeping thermal and electrical performance consistent with industry expectations for instrumentation amplifiers.

Suitable for

• Sensor signal conditioning and amplification
• Data acquisition front ends
• Precision measurement and test equipment
• Low-noise analog signal paths in industrial and laboratory systems

Key specifications

• Function: instrumentation and operational amplifier in a single integrated device
• Package type: 16-pin SOIC suitable for surface-mount PCB assembly
• Intended performance: precision signal conditioning and low-noise amplification
• Integration: multiple amplifier functions to reduce external component count
• Typical applications: sensor interfaces, data acquisition, analog front ends

How to use

Place the INA2126UA on the PCB following standard SOIC-16 footprint guidelines and observe recommended power-supply decoupling close to the supply pins. Configure the amplifier stages according to the desired gain and filtering using external resistors and capacitors as required by the circuit topology. Ensure proper grounding and layout practices for low-noise operation, routing sensitive inputs away from noisy digital traces and providing a solid ground plane where possible. Follow the manufacturer's recommended operating conditions for supply voltages and input ranges to achieve specified performance.

Recommendations

For optimal results, use close decoupling capacitors at the supply pins, maintain short input traces for the amplifier inputs, and separate analog and digital ground returns. Verify the chosen gain and bandwidth settings in simulation or on a prototype board before finalizing the design to ensure the INA2126UA meets your application requirements.
