Cimco 187011 Terminal de ponta 1,5 mm² parcialmente isolado preto 100 unid.

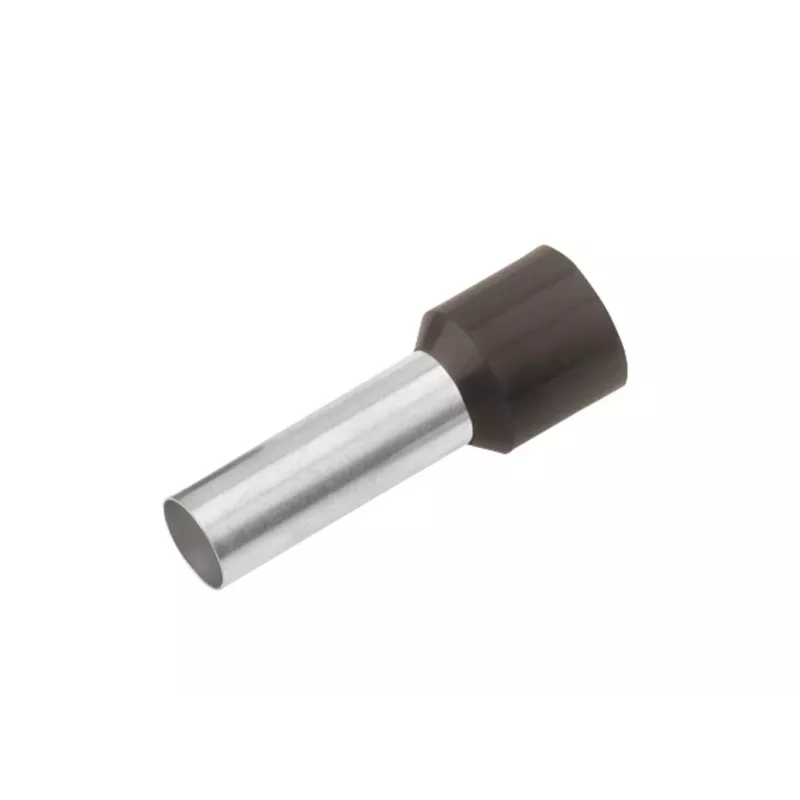

Wire end sleeve (ferrule) for terminating fine-stranded conductors, featuring a 1.5 mm² cross-section and partial insulation in black. The sleeve is made of electrolytic copper with tin plating, ensuring reliable crimping and corrosion resistance. Supplied in a pack of 100 pieces.

Advantages

Partially insulated design allows for secure crimping while maintaining flexibility. Halogen-free polypropylene insulation provides safe operation across a wide temperature range. Tin-plated copper construction ensures excellent conductivity and long-term durability.

Suitable for

• Termination of fine-stranded conductors in control cabinets and distribution boards
• Industrial automation and electrical installations
• Use with standard ferrule crimping tools

Key specifications

• Nominal cross-section: 1.5 mm²
• Colour: Black
• Insulation type: Partially insulated
• Conductor material: Electrolytic copper, tin-plated
• Insulation material: Polypropylene (PP)
• Sleeve length (L1): 8 mm
• Total length (L2): 14 mm
• Flange diameter (D2): 3.0 mm
• Wire entry diameter (D1): 2.0 mm
• Standard: DIN 46228 Part 4
• Temperature range: -40°C to +105°C
• Halogen-free: Yes
• RoHS compliant: Yes
• Pack quantity: 100 pieces

Recommendations

Use with a crimping tool suitable for 1.5 mm² ferrules to ensure a gas-tight connection. Store in a dry environment to maintain tin plating integrity.
