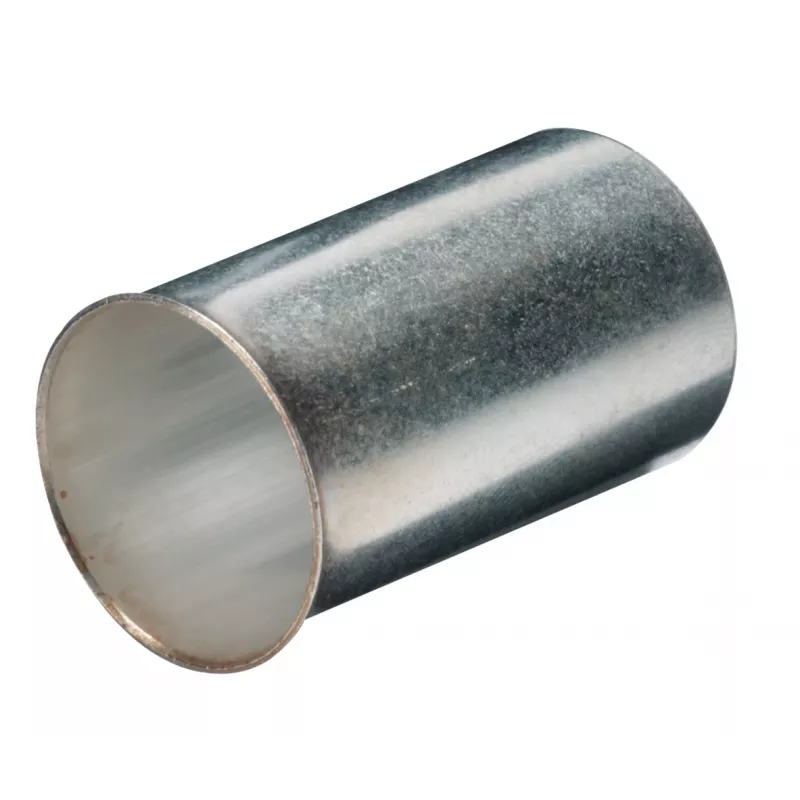

Cimco 187463 Terminal tubular de cobre estanhado não isolado para condutor de 35 mm², 100 unid.

For terminating fine-stranded conductors up to 35 mm², this uninsulated tube ferrule from Cimco offers a reliable crimp connection. Made of electrolytic copper with a tin-plated surface, it ensures excellent conductivity and corrosion resistance. The ferrule complies with DIN 46228 Part 1 and is suitable for fine and super fine-stranded conductors. Each pack contains 100 pieces.

Overview

The Cimco 187463 is a high-quality tube ferrule designed for professional electrical installations. Its uninsulated design allows for direct crimping, providing a secure and durable connection. The tin plating enhances solderability and protects against oxidation, making it ideal for demanding environments.

What stands out

• Large cross-section capacity: 35 mm² for heavy-duty wiring
• Tin-plated electrolytic copper for superior conductivity
• Uninsulated tube design for reliable crimp connections
• Complies with DIN 46228 Part 1 standard
• Pack of 100 pieces for industrial use

Technical details

• Wire cross-section: 35 mm²
• Insulation type: Uninsulated
• Material: Electrolytic copper
• Surface treatment: Tin-plated
• Quantity per pack: 100 pieces
• Ferrule type: Tube
• Standard: DIN 46228 Part 1
• Connection method: Crimp
• Suitable for conductors: Fine-stranded and super fine-stranded
• Nominal length: 28 mm
• Inner diameter (tube): Approx. 8.5 mm
• Outer diameter (tube): Approx. 9.5 mm
• Temperature range: Up to +105 °C
• Halogen-free: Yes

Our verdict

A robust and reliable ferrule for large cross-section terminations, ideal for professional electricians and industrial applications.
