PureLink PureTools PT-MA-HD88DA - Matriz HDMI 8x8, 4K@60Hz, HDCP 2.2, 18 Gbps, extração de áudio, montável em rack

The PureLink PureTools PT-MA-HD88DA is a professional 8x8 HDMI matrix switch designed for high-performance AV distribution. It supports 4K@60Hz (4:4:4) resolution, HDCP 2.2, and a data rate of 18 Gbps, ensuring pristine video quality. With advanced audio de-embedding, multiple control options, and robust EDID management, this matrix is ideal for commercial installations, conference rooms, and broadcast environments.

Advantages

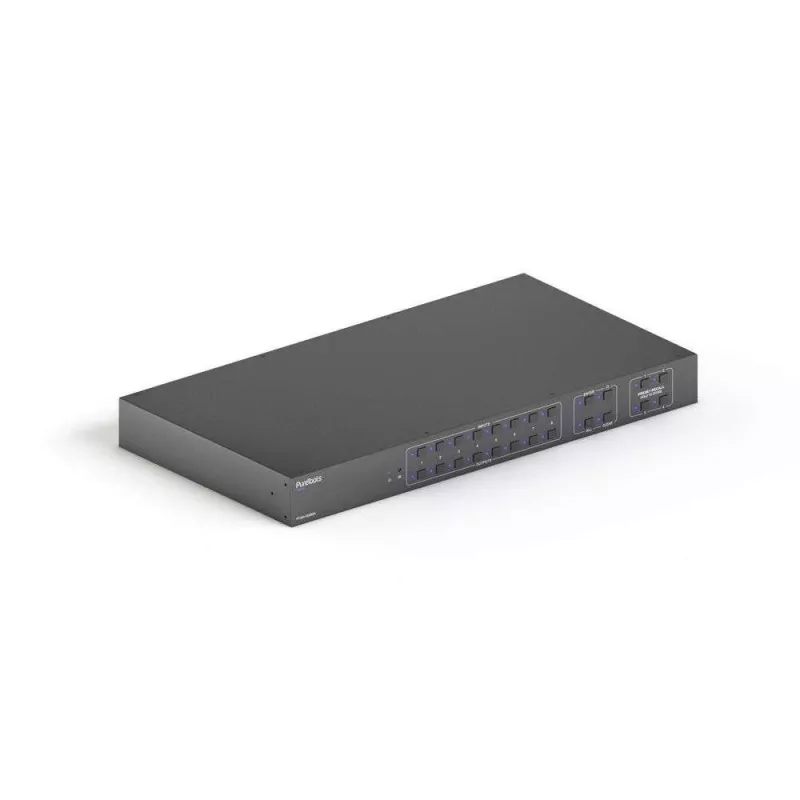

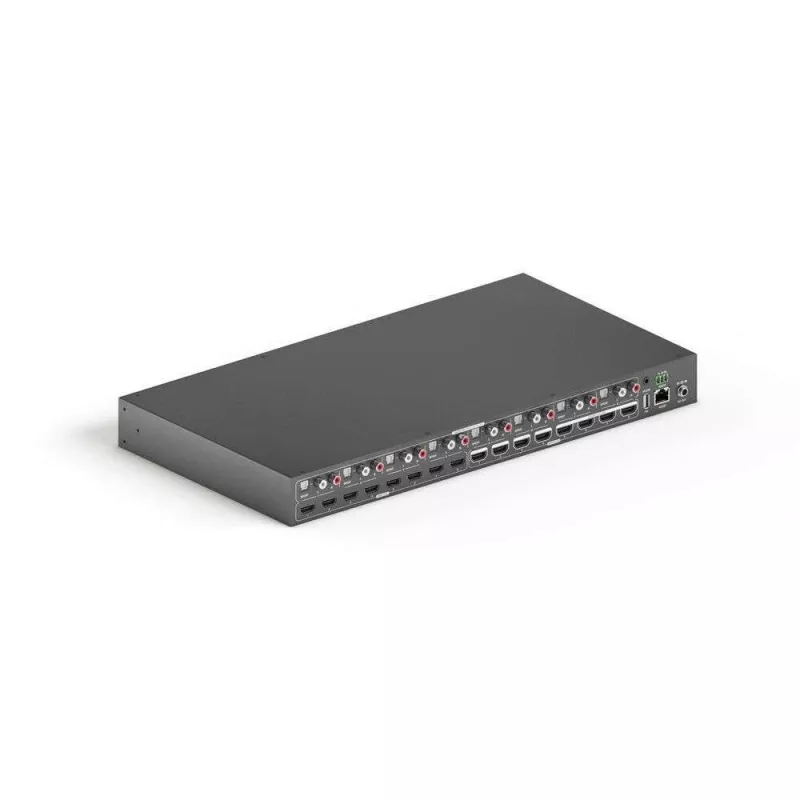

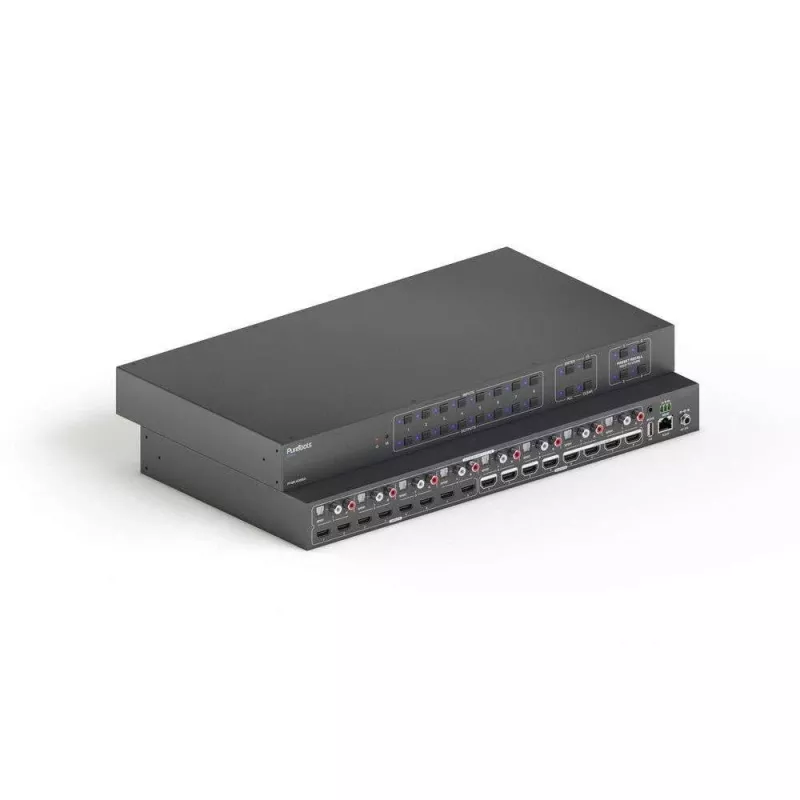

Seamlessly route any of 8 HDMI sources to any of 8 displays with fast switching. The built-in audio de-embedding extracts stereo audio from each output via 3.5mm jacks, simplifying integration with external audio systems. Comprehensive control via front panel, IR, RS-232, and TCP/IP (Web GUI, Telnet) offers flexibility for any setup. The 1U rack-mountable metal housing ensures durability and easy integration into equipment racks.

Suitable for

• Conference rooms and boardrooms
• Digital signage and retail displays
• Broadcast and production studios
• Educational and training facilities
• Home theater installations

Key specifications

• 8x HDMI inputs and 8x HDMI outputs
• Supports 4K@60Hz (4:4:4) and all standard resolutions up to 1080p
• HDCP 2.2 and HDCP 1.4 compliant
• 18 Gbps data rate (6 Gbps per channel)
• Audio de-embedding: 8x 3.5mm stereo jacks (L/R analog audio)
• Supported audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
• Control: Front panel buttons, IR remote, RS-232, TCP/IP (Web GUI, Telnet)
• Advanced EDID management with internal library and copy from output
• Internal power supply: 100-240V AC, 50/60Hz
• Max power consumption: 25W
• Form factor: 1U rack-mountable
• ESD protection: ±8kV air-gap, ±4kV contact
• Operating temperature: 0°C to 45°C
• Housing material: Metal
• Compliance: CE, FCC, RoHS

Recommendations

For optimal performance, use high-quality HDMI cables rated for 18 Gbps. The matrix supports advanced EDID management; consult the user guide for configuration details. The IR remote and RS-232 control provide reliable operation in professional environments.
