Vivolink VLHDMISP1X2 divisor de vídeo HDMI 2x HDMI

The Vivolink VLHDMISP1X2 is a 1x2 HDMI video splitter that distributes a single HDMI source to two HDMI displays simultaneously. It supports up to 4K@60Hz with 4:4:4 chroma, HDR10 and Dolby Vision, and offers a metal housing with compact dimensions for easy integration into AV setups.

Advantages

The splitter provides advanced EDID management with multiple built-in settings selectable via a 4-pin DIP switch, resolution down-scaling to ensure compatibility with 1080p displays, CEC pass-through and LEDs that indicate operating status. Firmware can be updated through a Micro-USB port, and the device supports HDMI versions 1.4 and 2.0 while drawing low power (approx. 2.5 W).

Suitable for

• Retail digital signage and point-of-sale displays
• Trade shows and exhibition booths with multiple screens
• Conference rooms and meeting spaces requiring duplicate displays
• Home AV setups where one source must feed two TVs or monitors

Key specifications

• Model: Vivolink VLHDMISP1X2

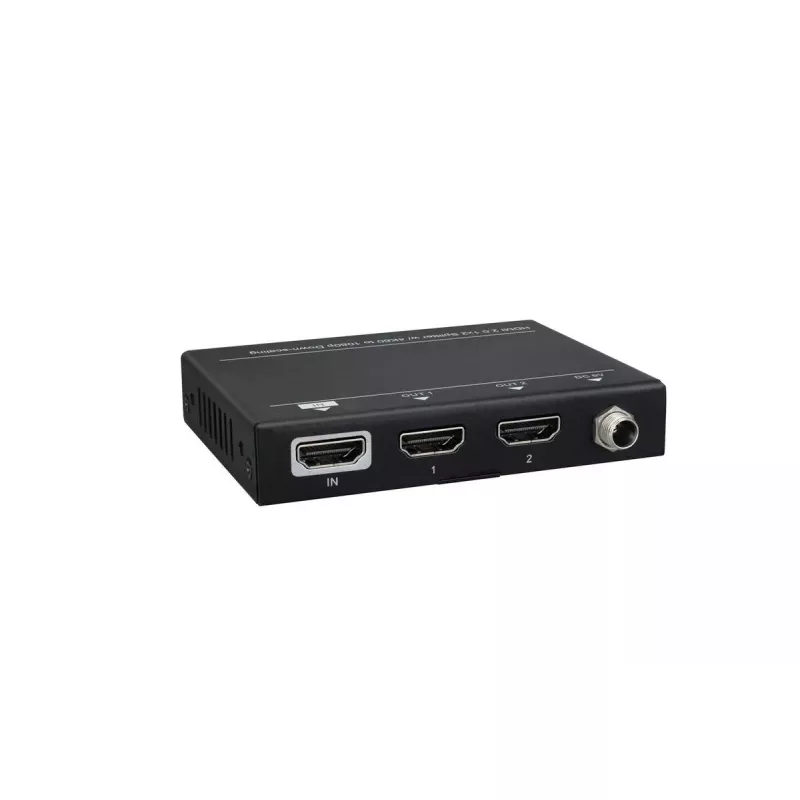

• Input/output: 1 HDMI input → 2 HDMI outputs
• Maximum resolution: 3840 x 2160 (4K) @ 60 Hz, 4:4:4
• HDR: HDR10, Dolby Vision

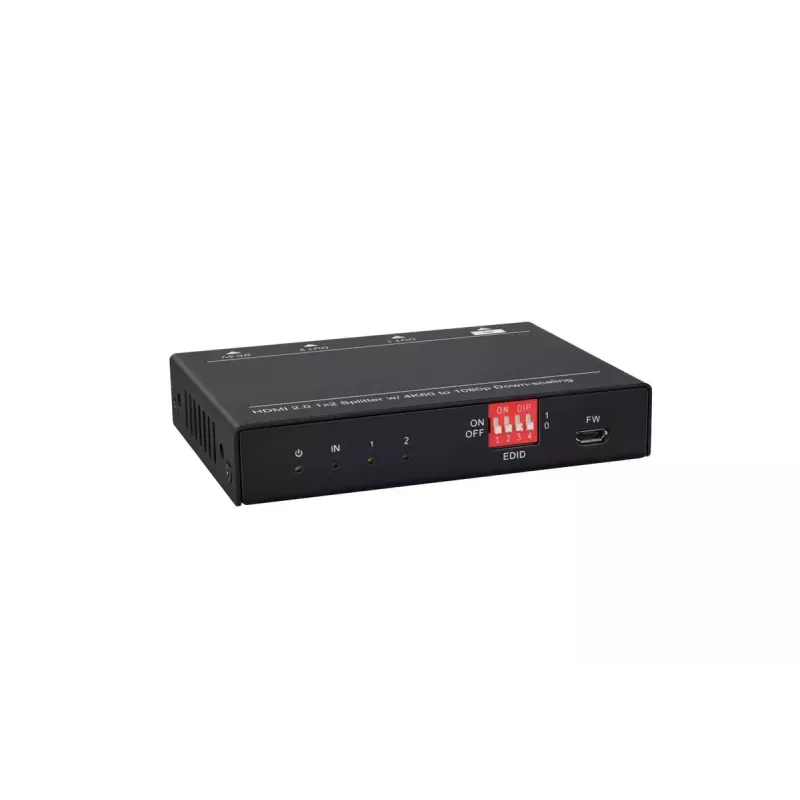

• EDID: Advanced EDID management via 4-pin DIP switch
• CEC: Pass-through supported
• Firmware: Micro-USB upgrade port
• HDMI versions: 1.4 and 2.0 compatible
• Power: AC 110–230 V, approx. 2.5 W
• Material and colour: Metal housing, black
• Weight: 0.3 kg

How to use

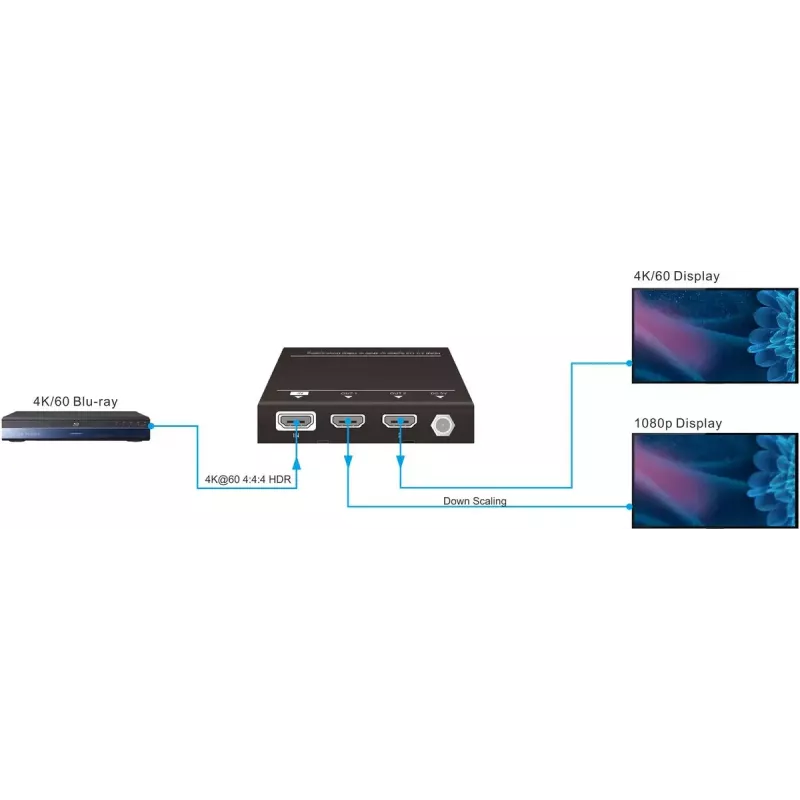

Connect the HDMI source to the splitter's HDMI input and connect up to two displays to the HDMI outputs. Configure EDID settings using the 4-pin DIP switch to match the displays' capabilities or enable down-scaling if a display requires 1080p. Power the unit from an appropriate AC outlet and observe the front LEDs to verify operating status. If necessary, connect a PC to the Micro-USB port and apply firmware updates following the manufacturer's instructions.

Recommendations

For stable 4K@60Hz performance, use high-quality HDMI cables rated for HDMI 2.0 or higher and ensure source and displays support the required HDR formats. When mixing 4K and 1080p displays, configure the EDID or enable down-scaling to prevent resolution or compatibility issues.
