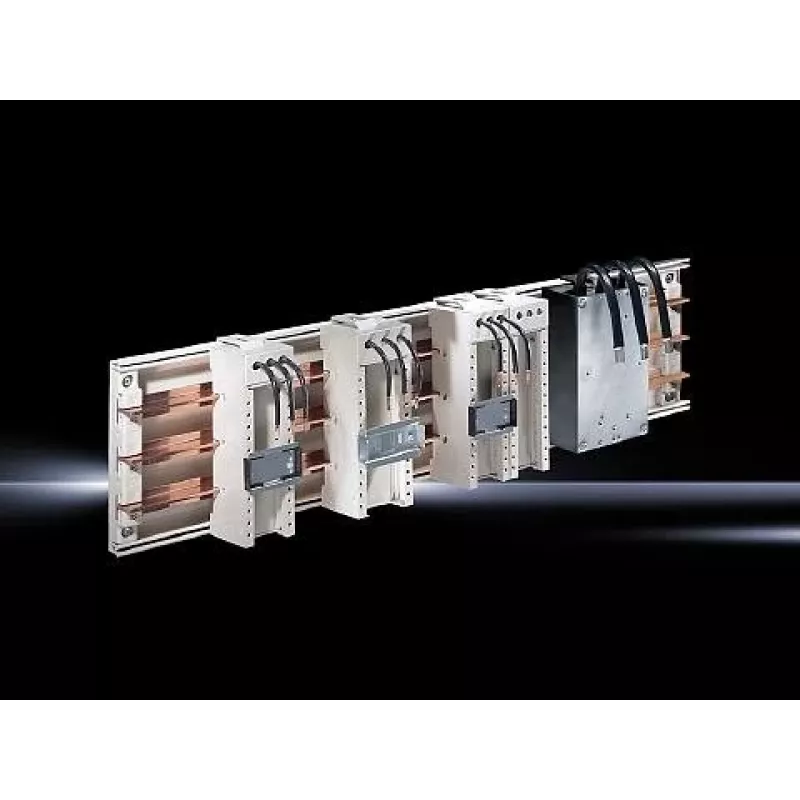

Componente de caixa Rittal SV 9614.100 — caixa em poliamida, branco, 690 V, 25 A, 45×160 mm

Rittal enclosure component SV 9614.100 is a compact polyamide housing designed for insulated mounting and feed‑through applications in electrical enclosures and control cabinets. Finished in white, the unit supports electrical systems with voltages up to 690 V and is specified for a nominal current rating of 25 A. With a slim footprint of 45×160 mm and a weight of approximately 300 g, this component is intended where space-saving, electrical insulation and reliable mechanical protection of wiring or small devices are required.

Advantages

The polyamide construction provides electrical insulation and resistance to environmental influences common in indoor electrical cabinets. Its compact dimensions allow installation in confined spaces while maintaining standardized clearances for safe wiring. The white finish supports visual inspection and cable identification. The component’s rated voltage and current parameters make it suitable for a wide range of low- and medium-voltage control and distribution applications.

Suitable for

Key specifications

How to use

Mount the enclosure component into the prepared cutout or mounting position inside the control cabinet according to the cabinet manufacturer’s instructions and applicable electrical standards. Ensure correct orientation and secure fastenings so that the housing provides mechanical protection and maintains required clearances. Route cables through the housing openings and make electrical connections consistent with the system’s voltage and current ratings. Verify insulation integrity and perform continuity and isolation tests before energizing the circuit.

Recommendations

Use the component only within its specified voltage and current ratings and in environments compatible with polyamide housings. Maintain proper creepage and clearance distances, follow local wiring regulations, and use appropriate gland seals or cable management accessories where ingress protection or strain relief is required.
