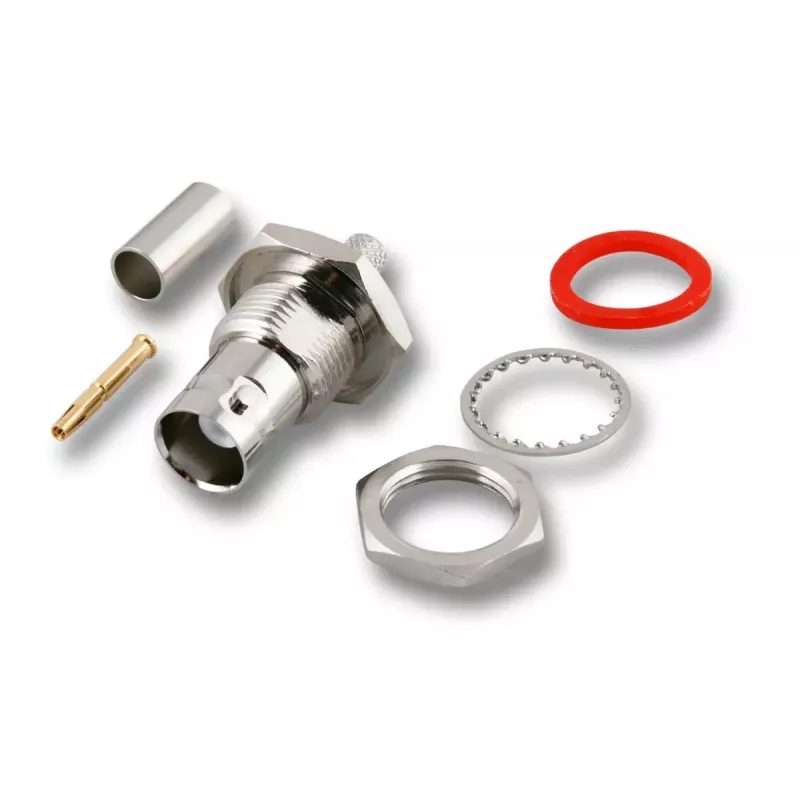

Conector coaxial BNC EFB Elektronik 52554.1

The EFB Elektronik 52554.1 is a BNC coaxial connector with a female receptacle designed for 50 Ω systems. It provides a reliable RF connection with low signal loss and stable electrical performance, suitable for a variety of electronic and communication applications where a standard BNC interface is required.

Advantages

The connector features a female BNC crimp-style receptacle optimized for secure mechanical connection and consistent impedance. Constructed for good conductivity and durability, it supports reliable signal transmission in RF environments and is compatible with standard 50 Ω coaxial cables and assemblies.

Suitable for

• RF measurement equipment and test leads
• Laboratory and bench electronics
• Communication and broadcast systems
• Coaxial cable assemblies requiring 50 Ω BNC female connectors

Key specifications

• Brand: EFB Elektronik
• Manufacturer part number (MPN): 52554.1
• EAN: 4049759039325
• Connector type: BNC female (receptacle), crimp version
• Impedance: 50 Ω

How to use

Prepare the coaxial cable according to the crimp connector manufacturer's instructions, insert the cable into the connector body and ensure correct seating of the center conductor and dielectric. Use the appropriate crimp ferrule and crimping tool for the connector size, then inspect the assembly for correct mechanical fit and electrical continuity before deploying in the system.

Recommendations

Use this BNC female crimp connector with compatible 50 Ω coaxial cables and crimp tools. Verify impedance matching in RF installations and perform continuity and insulation tests after assembly to ensure dependable performance.
