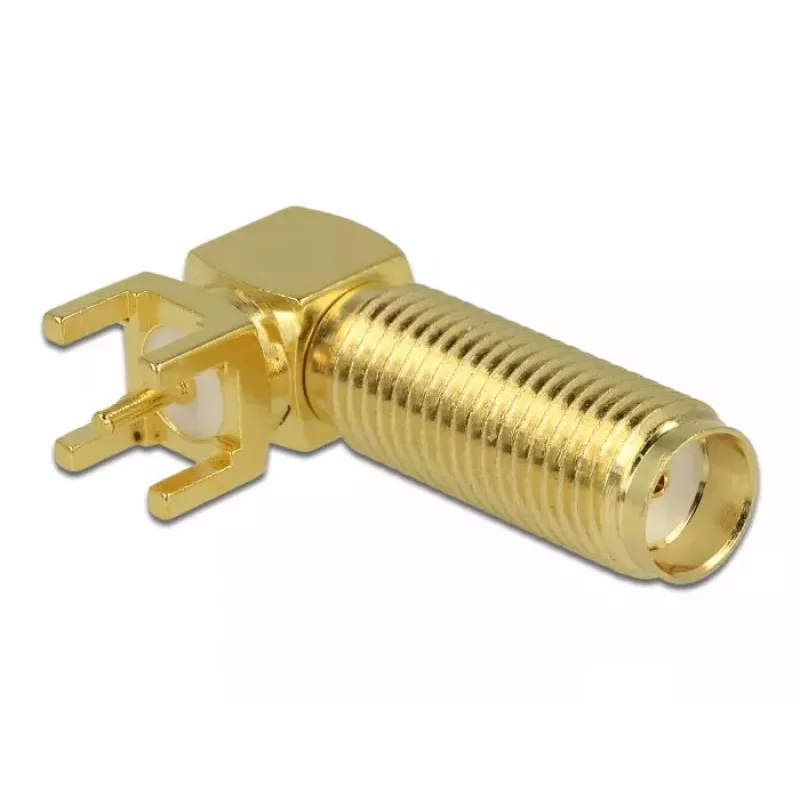

Conector coaxial SMA DeLOCK 65848

The DeLOCK 65848 coaxial connector is an SMA-type connector with gold-plated contacts designed for reliable RF signal transmission in compact assemblies. Its brass body and gold-plated contact surfaces provide stable conductivity and corrosion resistance. With overall dimensions of 22 mm (width) × 12 mm (depth) × 4.6 mm (height), this single-piece connector is suitable for space-constrained installations and comes packaged in a polybag for individual use.

Advantages

The SMA form factor provides consistent impedance and low signal loss at high frequencies. Gold-plated contacts reduce contact resistance and improve long-term reliability in mating cycles. Its small footprint and brass construction make the connector mechanically robust while remaining easy to mount in devices, test fixtures, or cabling assemblies. The single-piece packaging simplifies inventory and project deployment for small batches or prototyping.

Suitable for (tasks / use cases)

• RF signal connections in wireless equipment and antenna interfaces
• Laboratory test setups and measurement instruments
• Prototyping and small-scale electronics assemblies
• Repair or replacement of SMA connection points in devices

Key specifications

• Connector type: SMA
• Contact plating: gold-plated contacts
• Body material/appearance: brass
• Dimensions: 22 mm (width) × 12 mm (depth) × 4.6 mm (height)
• Packaging: single piece in polybag

How to use

Align the SMA connector with the mating SMA jack and engage by carefully threading or pressing according to the mating hardware design. Ensure contacts are clean and free from debris before connection to minimize insertion loss. For assembly into panels or cable terminations, follow standard RF connector installation practices, using appropriate torque values and tools where specified by the mating component to avoid over-tightening and to maintain impedance integrity.

Recommendations

Store the connector in a dry environment and handle by the body to avoid contamination of the gold-plated contact surfaces. When used in RF paths, verify mechanical mounting and torque to maintain consistent electrical performance; inspect contacts periodically when used in environments with dust, humidity, or frequent mating cycles.
