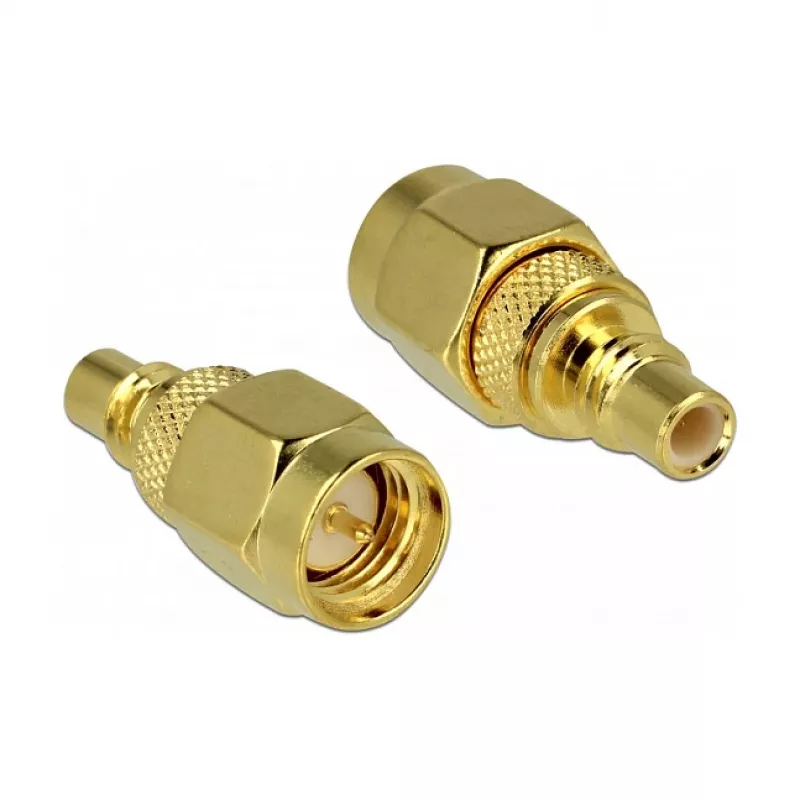

Conector coaxial SMA DeLOCK 65854

The DeLOCK 65854 is a compact coaxial connector with SMA type designed for radio frequency technology. It provides an SMC to SMA connection with a characteristic impedance of 50 Ω and a depth of 22 mm. The connector is finished in gold colour and is supplied as a single unit for use in telecommunications and data transmission applications.

Advantages

The coaxial connector offers a standardized SMA interface for reliable mating with compatible components and maintains 50 Ω impedance for consistent signal transmission. Its compact 22 mm depth saves space in installations, and the gold-coloured finish improves corrosion resistance and contact reliability. Sold individually, it is suitable for targeted repairs or small-scale installations.

Suitable for

• Connecting SMC equipment to SMA-equipped devices
• Telecommunications and radio frequency systems
• Data transmission links requiring 50 Ω impedance
• Repair or replacement of individual RF connectors

Key specifications

• Connector 1: SMC
• Connector 2: SMA
• Impedance: 50 Ω
• Depth: 22 mm
• Quantity: 1 piece
• Colour: Gold

How to use

Align the SMC and SMA connector ends carefully and push together until the connectors seat firmly. Ensure mating surfaces are clean and free of debris before connection. Use appropriate torque if specified by the mating device to avoid over-tightening. Verify continuity and signal integrity after installation.

Recommendations

Use this DeLOCK SMA coaxial connector in dry, clean environments and avoid bending or stressing the cable near the connector. Store unused connectors in anti-corrosion packaging and inspect contacts before installation to ensure reliable RF performance.
