Conector coaxial SMA DeLOCK 89990

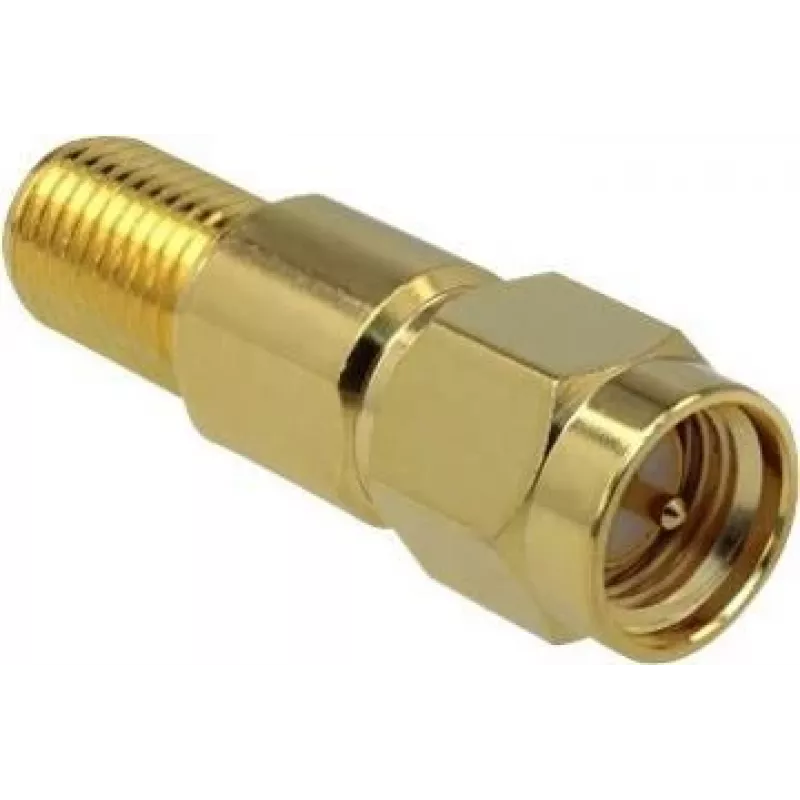

The DeLOCK 89990 SMA coaxial connector is designed for 50 Ω radio frequency applications. It provides a compact metal-bodied connector with a 7 mm diameter and overall width of 25.6 mm, supplied as a single unit in a polybag for convenient use in RF assemblies and repairs.

Advantages

The SMA connector offers a standardized 50 Ω interface compatible with RF components, a robust mechanical design for reliable signal transmission, and compact dimensions that suit limited-space installations. Packaging as a single piece in a polybag simplifies inventory and project handling.

Suitable for

Key specifications

How to use

Align the SMA connector with the mating coaxial receptacle and gently engage the threaded coupling until hand-tight. Do not overtighten; use only finger force or a torque wrench set to the recommended torque for SMA connectors if precise tightening is required. Ensure cable and connector cleanliness before connection to maintain signal integrity.

Recommendations

Store the connector in its polybag until installation to protect threads and contact surfaces. When used in sensitive RF systems, verify connector condition and impedance matching to minimise reflections and signal loss.
