Conector de cabo DELOCK 89887 — conector SATA, níquel/amarelo, 8×12×15 mm

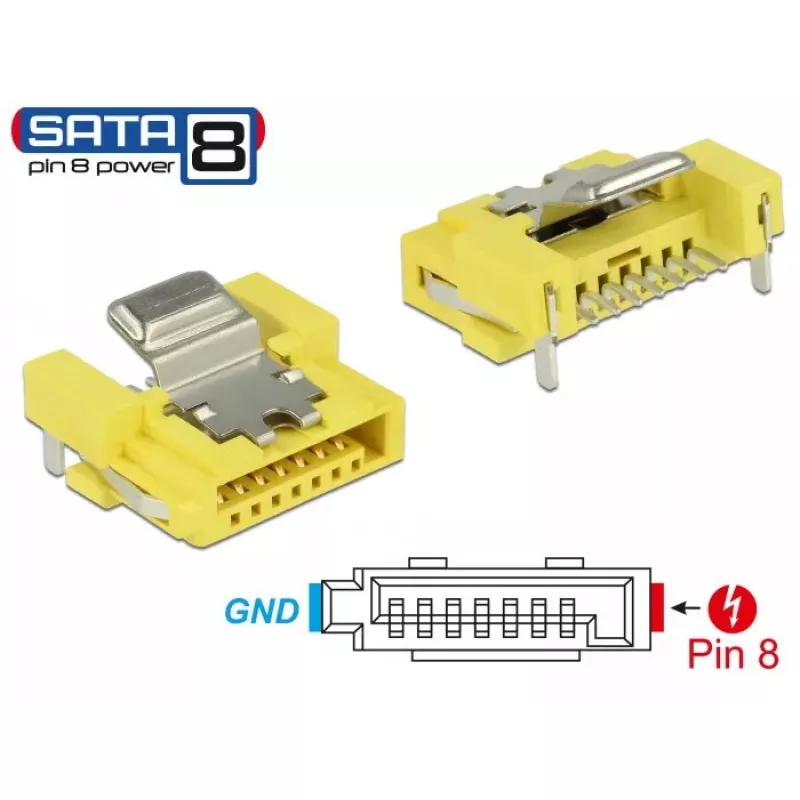

DELOCK 89887 is a compact wire connector designed for SATA power interfaces. The contact housing is nickel-plated with yellow accents and measures 8×12×15 mm, supplied as a single unit in a polybag. It provides a solderable 8-pin SATA power receptacle that can be mounted to printed circuit boards or used in cable-assembly and repair applications where a reliable electrical and mechanical contact is required for storage and data-transfer systems.

Advantages

The nickel finish ensures corrosion resistance and stable contact performance while the color accents aid visual identification during assembly. Its small footprint and standard SATA 8-pin arrangement make it suitable for space-constrained installations. The connector is supplied ready for integration, allowing straightforward soldering to PCBs or termination on cable harnesses.

Suitable for

Key specifications

How to use

Position the connector on the PCB pads aligned with the SATA power contact layout and solder each contact using appropriate soldering tools and flux for reliable joints. For cable assembly, strip insulation to the recommended length, insert conductors into the contact positions and solder or crimp according to the cable type and assembly practice. Verify mechanical stability and electrical continuity after assembly before applying power.

Recommendations

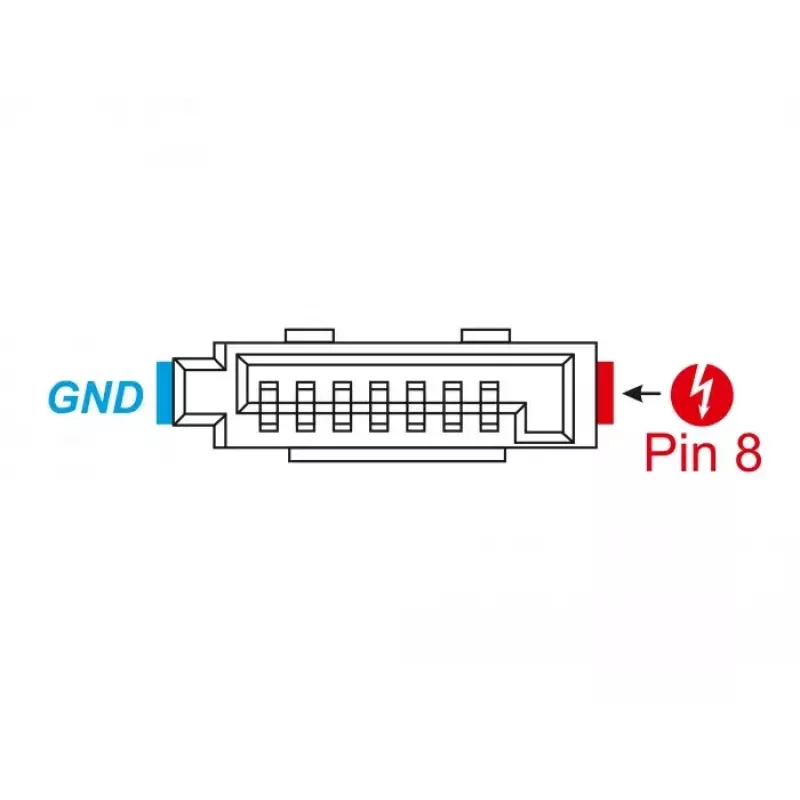

Use controlled soldering temperatures to prevent damage to the nickel finish and surrounding components. Ensure correct polarity and pin alignment when connecting to SATA devices. For repeated mechanical mating, inspect contacts for wear and replace the connector if contact resistance increases.
