Conector de cabo ShiverPeaks BS72039-R10 ficha RJ-10 reta 10 unid.

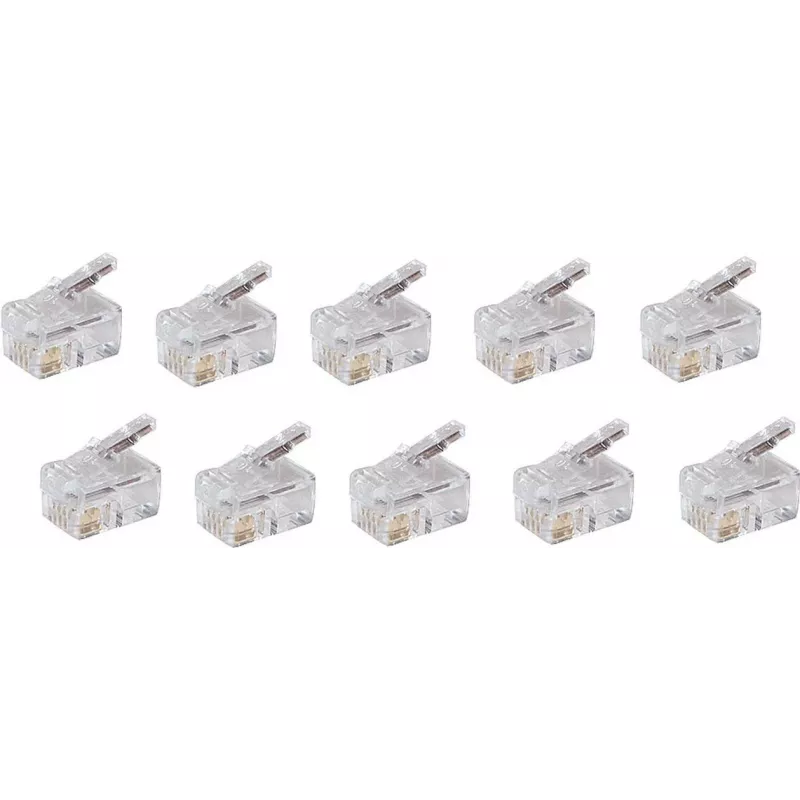

The ShiverPeaks BS72039-R10 RJ-10 Male Straight connector is a compact wire connector designed for small telecommunication and low-voltage signal wiring. Supplied in packs of ten, each straight male RJ-10 connector offers a standardized 4-position interface for connecting handset cords, telephone modules, and other devices that require a slim modular plug.

Advantages

These RJ-10 male straight connectors provide a consistent and space-saving connection option with reliable contact alignment. The straight form factor facilitates neat cable routing in confined enclosures and panels. Supplied in a pack of ten, the set simplifies procurement for small installation or repair jobs and reduces the need for individual purchases.

Suitable for

• Telephone handset cords and desk phones using 4-position modular plugs
• Low-voltage signal wiring in communication equipment
• Repair and replacement of connectors on modular cables
• Prototyping and small batch electronic assembly requiring compact modular plugs

Key specifications

• Connector type: RJ-10 (4-position modular male)
• Form factor: straight plug
• Contact orientation: male modular contacts suitable for female jacks
• Pack quantity: 10 connectors per package
• Intended use: low-voltage signal and telephone wiring

How to use

Strip the cable jacket to expose the individual conductors, arrange conductors in the required pin order, and insert them fully into the connector until the conductors reach the end of the plug. Use a compatible crimping or insertion tool designed for 4-position modular plugs to secure the conductors and ensure firm contact. After crimping or insertion, visually inspect that each conductor is seated and that the plug latches correctly into the mating jack.

Recommendations

Choose cable types and conductor gauges that match the connector's design and the application's electrical requirements. For installations subject to frequent insertion/removal cycles, verify contact integrity periodically and replace connectors showing wear or intermittent connectivity.
