Conector DeLOCK DC 5,5 x 2,5 mm conector fêmea ligação de solda para encastrar angular 20 V 10 A

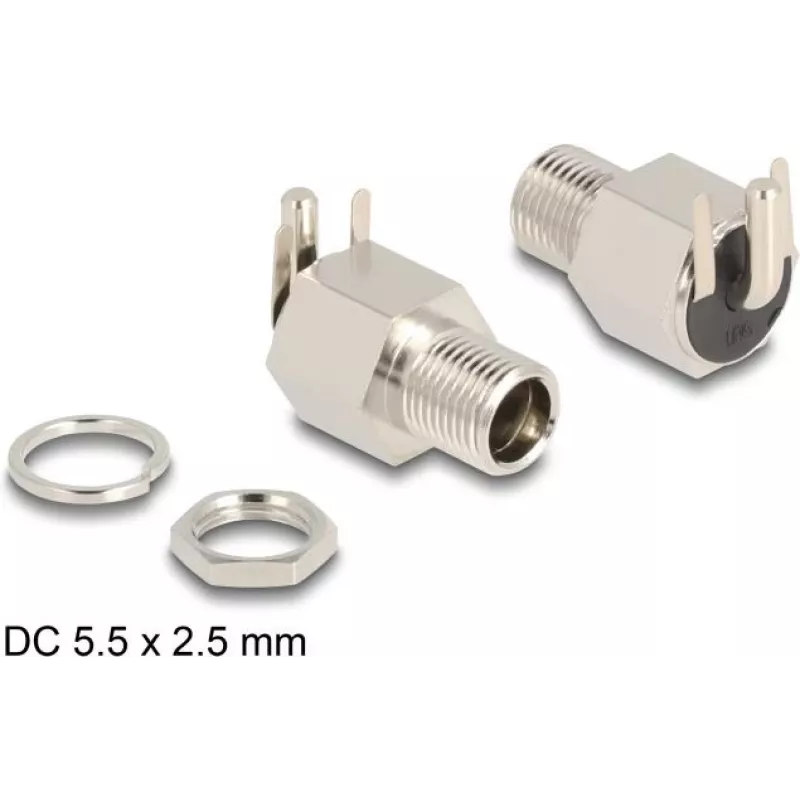

The DeLOCK DC female bulkhead connector 5.5 x 2.5 mm is designed to be mounted in a housing or device and to provide a secure power input. This angled soldering connector supports up to 20 V and a rated current of 10 A, with a compact length of 12 mm. The connector has an outer diameter of 5.5 mm and an inner diameter of 2.5 mm and is finished in a silver colour.

Advantages

The angled design allows for space-saving installation in enclosures and devices. Solder terminals provide a reliable electrical connection. The compact 12 mm length and standard 5.5 x 2.5 mm dimensions ensure compatibility with common DC power plugs. Rated for 20 V and 10 A, it is suitable for many low-voltage power applications.

Suitable for

Key specifications

How to use

Drill or cut an appropriately sized hole in the device housing to match the bulkhead outer diameter and insert the connector from the outside. Solder the supply wires to the solder terminals following correct polarity and insulating procedures. Secure the connector in place according to the enclosure design and verify the connection with a multimeter before applying power up to the specified 20 V and 10 A limits.

Recommendations

Ensure correct polarity when soldering and provide strain relief for the soldered wires. Do not exceed the rated voltage and current. Use appropriate insulation and mounting hardware to avoid short circuits and mechanical stress.
