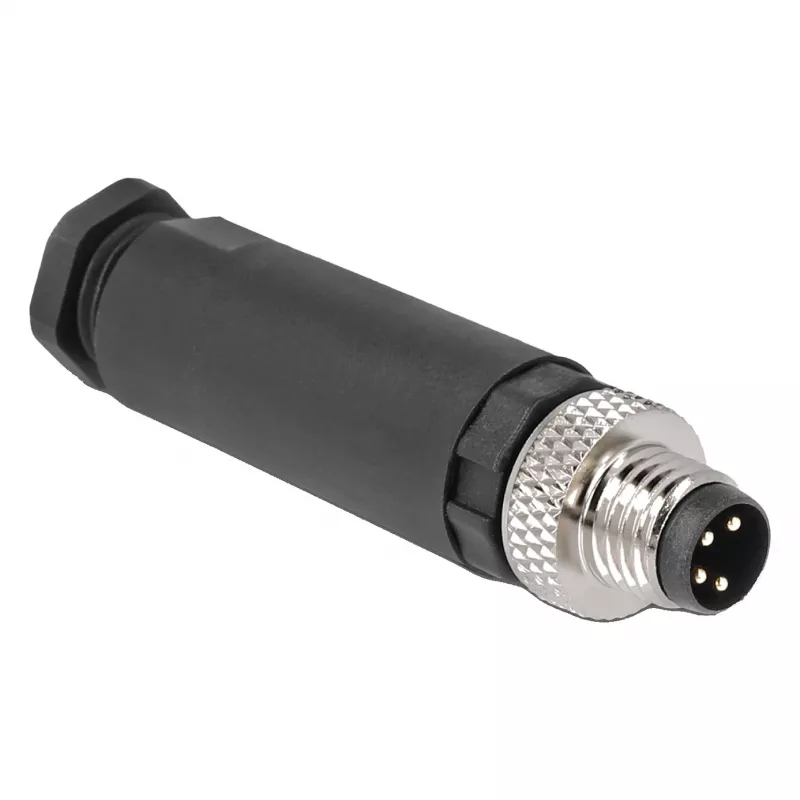

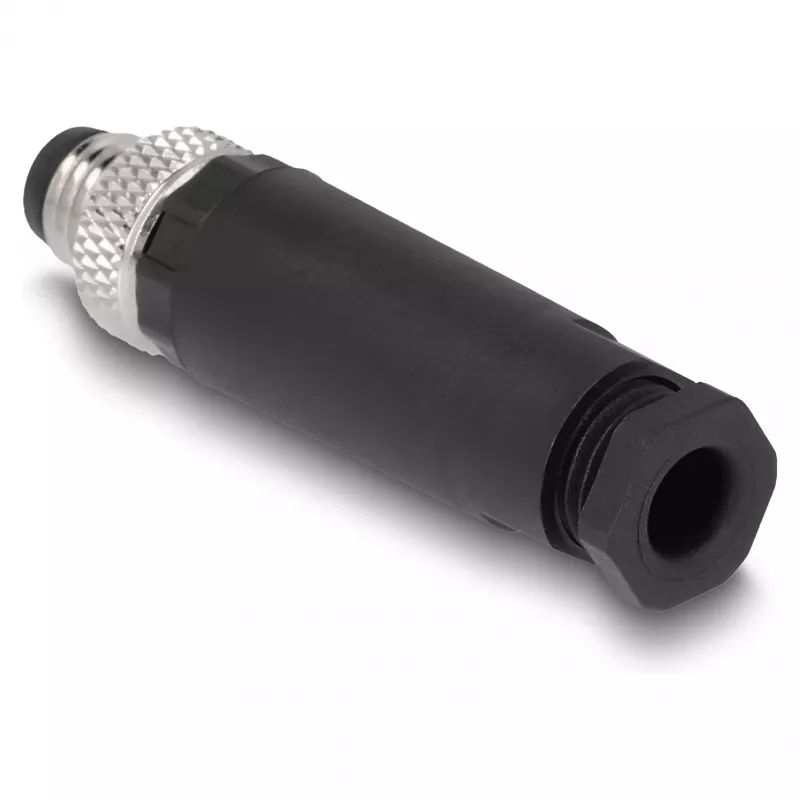

Conector DeLOCK M8 codificação A 4 pinos macho ligação por parafuso preto

The DeLOCK M8 Connector A-coded 4 pin male screw connection is a compact connector designed for secure screw-terminal mounting. Intended for industrial and automation environments, it provides a reliable electrical connection via an A-coded M8 interface and is finished in black. The connector meets CE standards and is suitable for use where a robust, space-saving M8 connection is required.

Advantages

This 4 pin male M8 connector offers a screw terminal connection for direct cable attachment, simple and secure assembly, and a compact outer diameter of 1.2 cm that facilitates installation in confined spaces. The A-coded design ensures compatibility with standard M8 A-coded female counterparts and the CE compliance confirms conformity with applicable European safety requirements.

Suitable for

• Machine control interfaces
• Industrial automation sensors and actuators
• Signal and low-power wiring in control cabinets
• Applications requiring a compact M8 A-coded screw connector

Key specifications

• Brand: DELOCK
• Model / MPN: 60530
• EAN: 4043619605309
• Connector type: M8 A-coded, male (4 pin)
• Mounting: screw terminal connection
• Color: Black
• Outer diameter: 1.2 cm
• Standards: CE

How to use

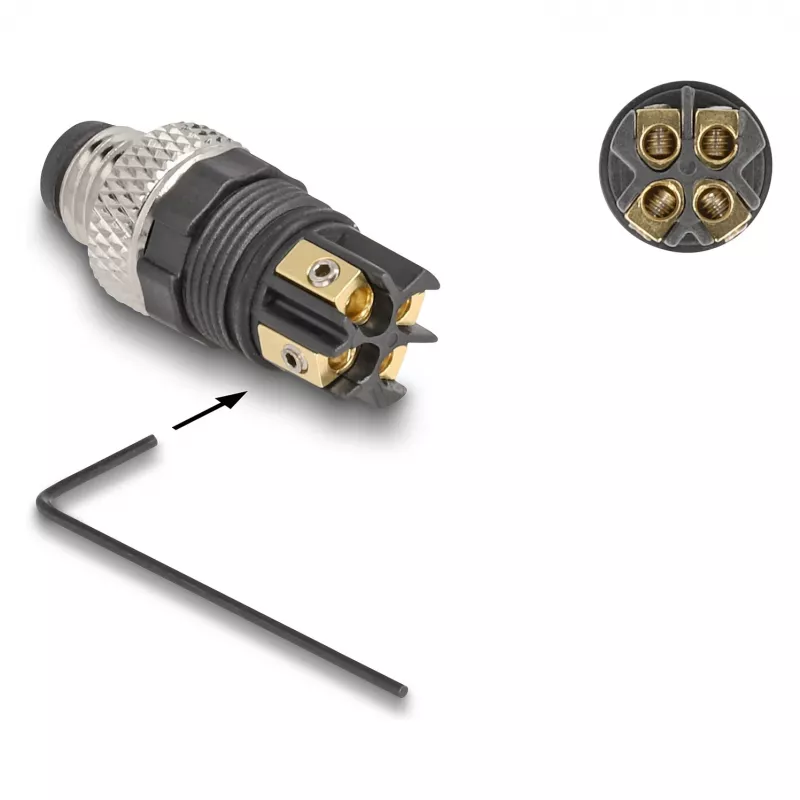

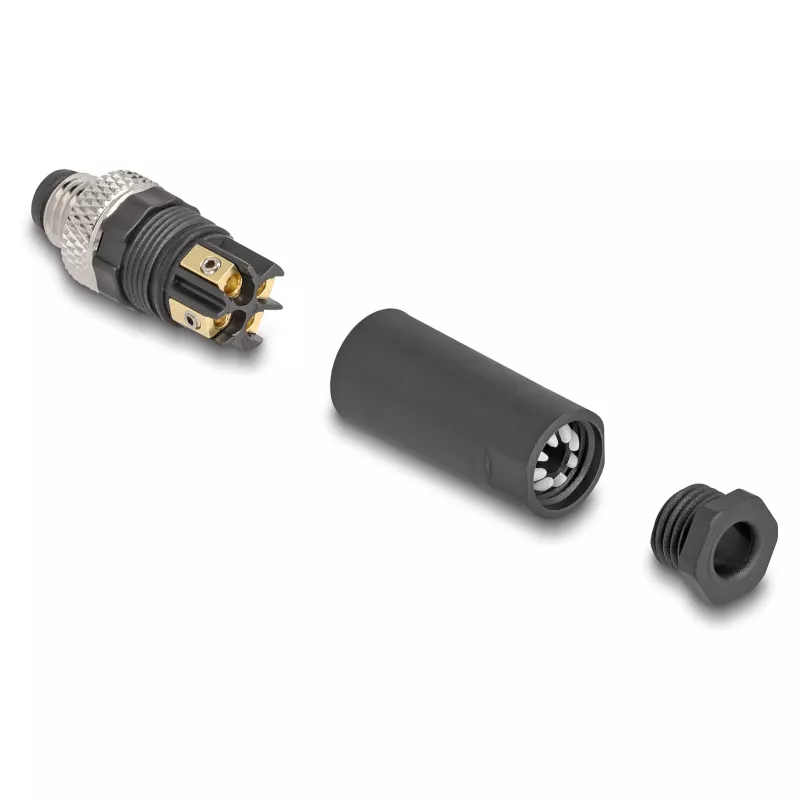

Strip the cable conductors to the recommended length, insert each conductor into the corresponding screw terminal and tighten the screws to secure the connection. Then align the male M8 pins with the mating female A-coded connector and engage the connector until it seats firmly. Ensure correct pin assignment and tighten any fastening nut or locking mechanism according to the mating device's instructions.

Recommendations

Use the connector within the rated electrical parameters of the connected devices, keep the screw terminals free of corrosion and moisture, and verify pin assignment with wiring diagrams before powering the system to ensure reliable operation in industrial and automation installations.
