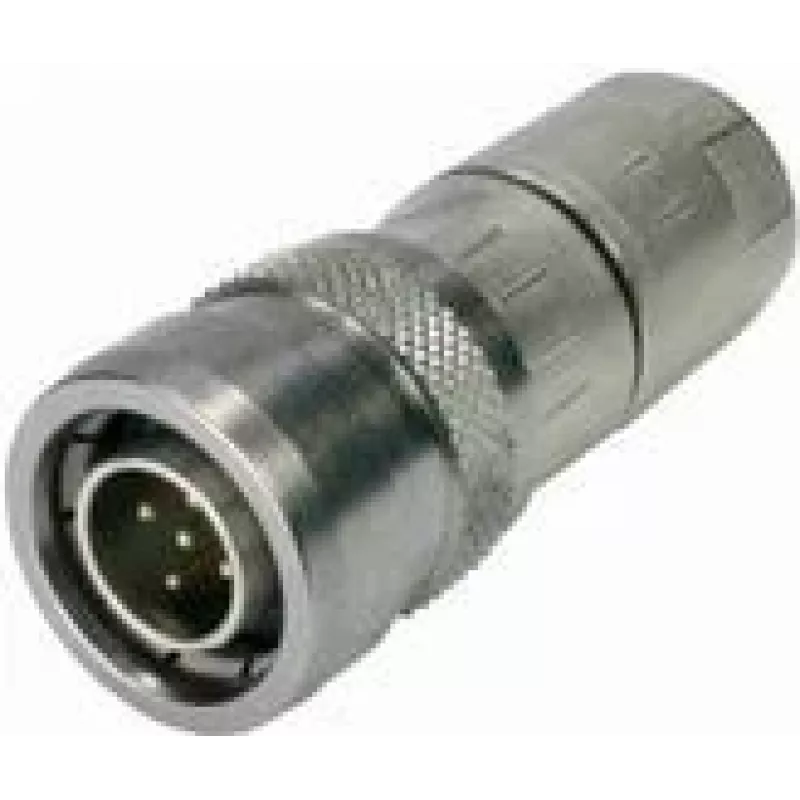

Conector elétrico completo M12 Harting 21 03 821 1530

The Harting Electrical Complete Connector M12 21 03 821 1530 is an M12-format electrical connector designed for secure and compact signal and power connections. It is supplied as a complete connector with screw fixing and intended for flush mounting, offering a straightforward solution for integrating sensors, actuators and device interfaces in constrained spaces. The connector supports a nominal current rating of 4 A and has a compact form factor suitable for industrial and automation installations where reliable contact and limited weight are required.

Advantages

This complete M12 connector provides a screw-type fixing that ensures stable mechanical retention and good electrical contact under vibration and movement. Its flush mounting design allows installation into panels or housings with minimal protrusion, preserving enclosure ingress protection and device compactness. The connector’s lightweight construction and standardized M12 format enable easy replacement and compatibility with common M12 cables and devices.

Suitable for

• Signal and low-power connections for sensors and actuators
• Panel and control cabinet installations requiring flush-mounted connectors
• Industrial automation and machine-building applications with limited space
• Environments needing stable screw-fixed connections subject to vibration

Key specifications

• Connector format: M12
• Fixing type: screw fixing
• Mounting style: flush mounting
• Rated current: 4 A
• Weight: approximately 60.55 g

How to use

Prepare the panel or housing opening sized for an M12 flush-mounted connector and insert the connector into the cutout. Secure the connector using the screw fixing provided, ensuring threads are engaged and tightened to the manufacturer’s recommended torque. Terminate conductors to the connector contacts according to the wiring diagram for the specific application, observing proper stripping lengths and contact insertion to avoid loose connections. After wiring, verify continuity and insulation resistance as required for the system before applying power.

Recommendations

Use compatible M12 mating connectors and cables rated for the same current and environmental conditions. Where vibration, moisture or contaminants are present, confirm the enclosure sealing and ensure correct torque on screw fixings. Follow local safety standards and Harting’s installation guidance for contact handling and electrical testing.
