Conector macho BNC para cravar para RG59 DeLOCK 90025

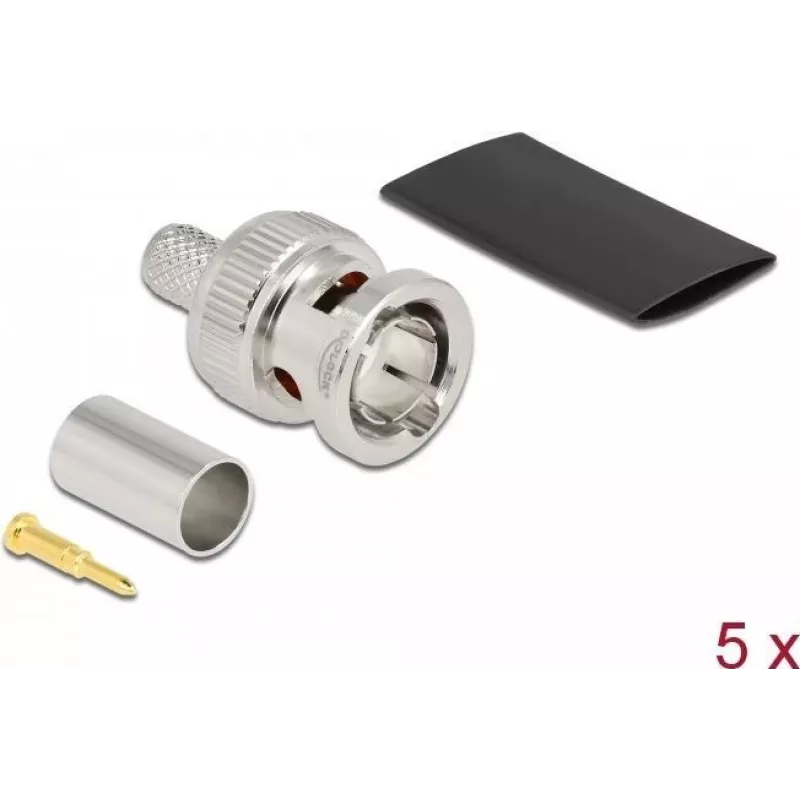

The DeLOCK BNC plug for crimping RG59 cables is a male connector intended for radio frequency and video/data transmission applications. It includes a matching shrink tube and nickel-plated contacts for improved corrosion resistance. The connector is compact and designed for reliable electrical contact in installations that use RG59 coaxial cable.

Advantages

The BNC plug offers nickel-plated contacts for durability and resistance to corrosion. It is supplied with a shrink tube to secure and insulate the connection after crimping. The compact metal construction and silver colour provide stable mechanical strength while keeping the connector dimensions small: 14.2 mm width, 23.5 mm depth and 14.2 mm height. The product is sold in packs of five, packaged in a polybag for easy storage.

Suitable for

Key specifications

How to use

Strip the RG59 cable to the manufacturer-recommended lengths for the centre conductor, dielectric and braid. Slide the shrink tube onto the cable, place the connector body over the prepared cable end, and crimp the connector according to standard crimping tool instructions for BNC RG59 fittings. After crimping, position the shrink tube over the joint and apply heat to shrink and secure the insulation. Verify the mechanical and electrical connection before final installation.

Recommendations

Use an appropriate BNC crimping tool sized for RG59 to ensure a secure and reliable connection. Avoid excessive heat on the shrink tube and confirm the contact is properly seated to prevent signal loss.
