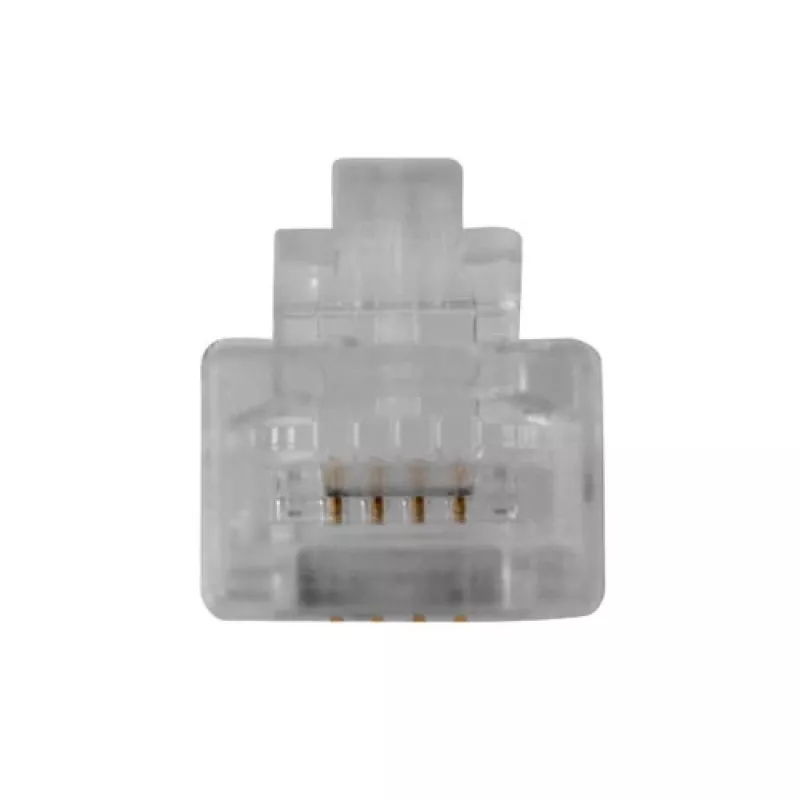

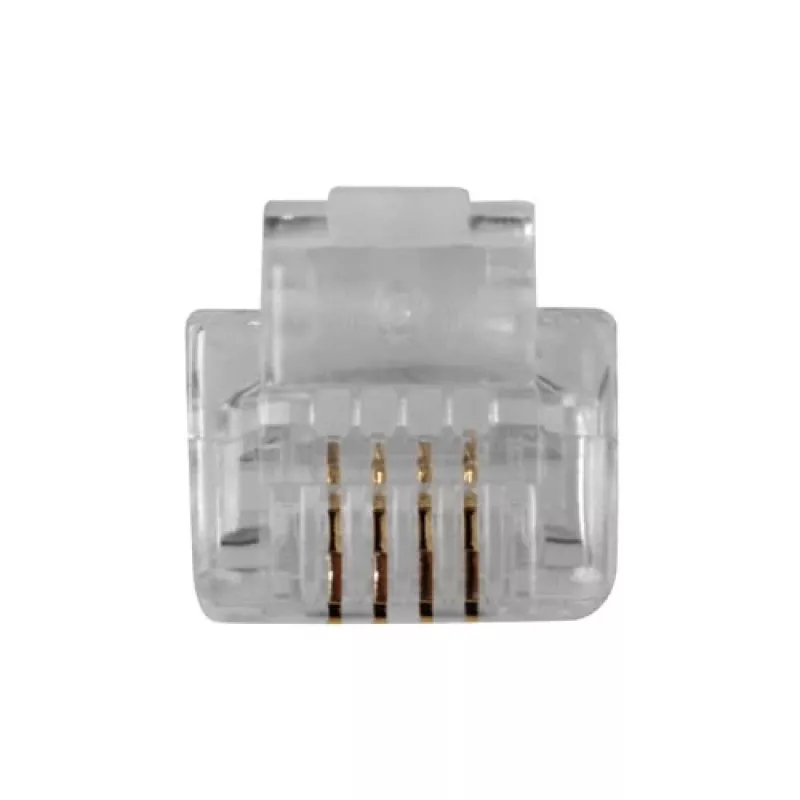

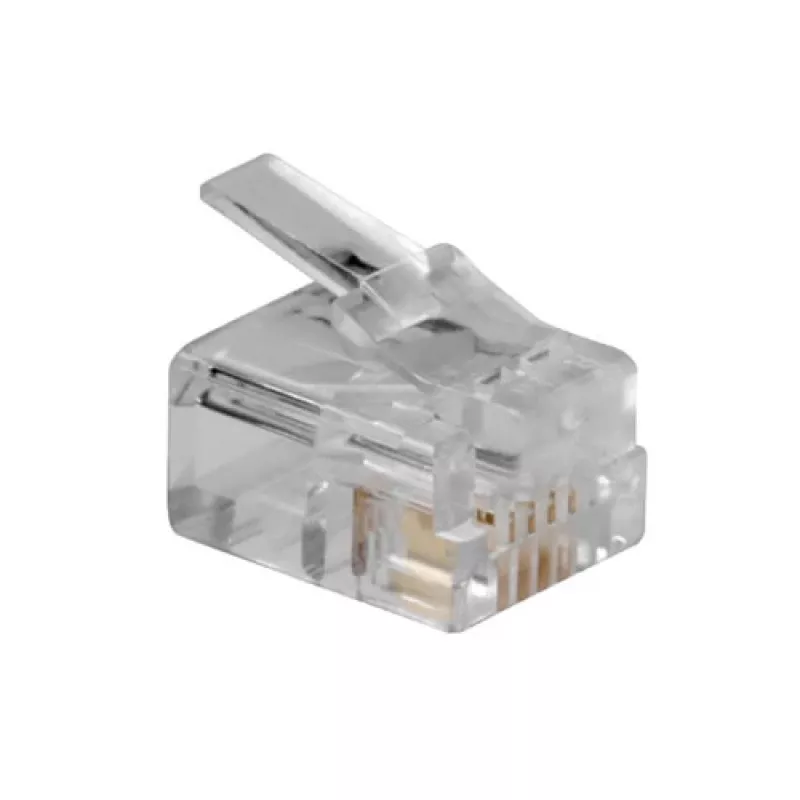

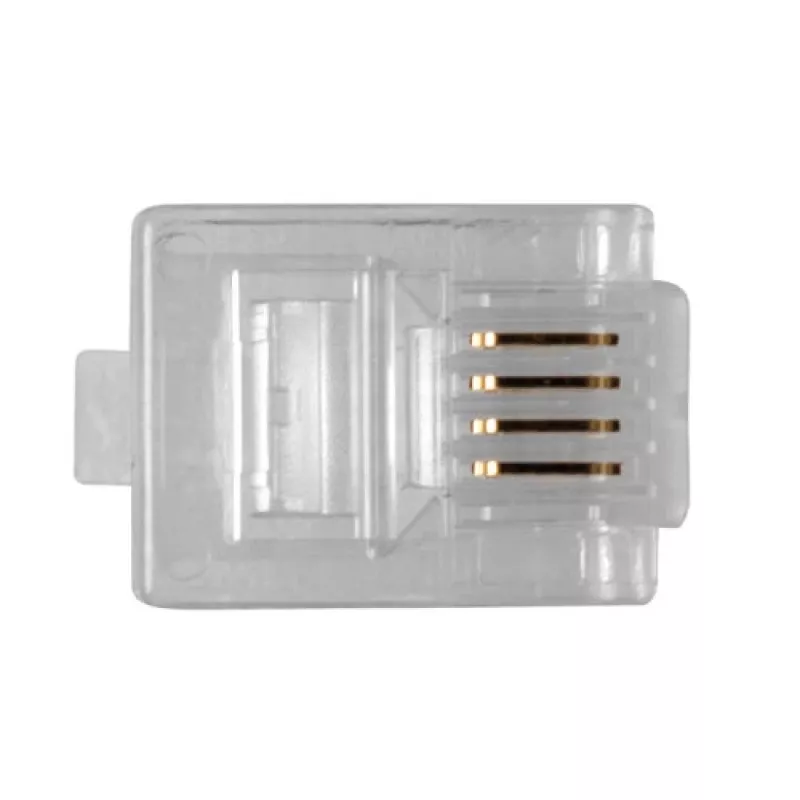

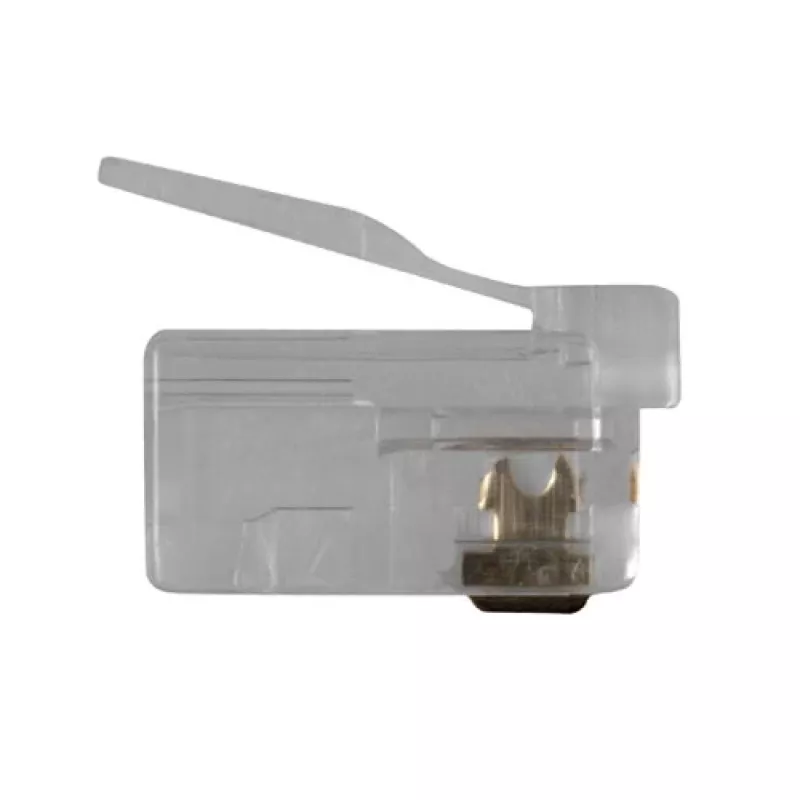

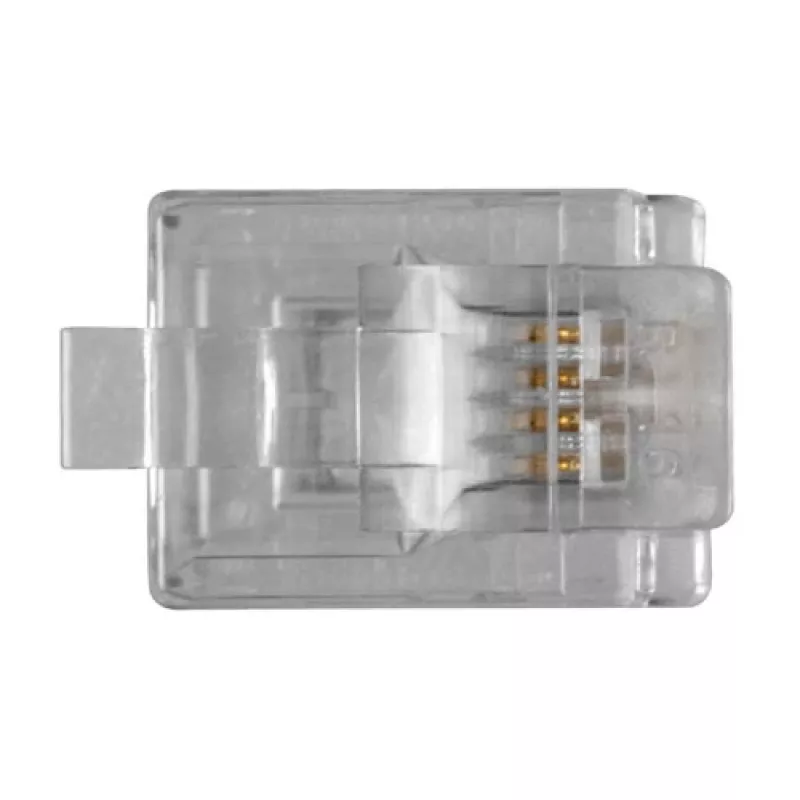

Conector modular ACT RJ11 (6P/4C) para cabo redondo com condutores maciços

The ACT Modular Connectors Round Cable Intronics TD104M are a pack of 25 solid modular connectors designed for use with round communication and signal cables. The TD104M connectors provide a stable mechanical and electrical connection suitable for installations where durability and consistent contact are required. This product is intended for situations where round cable geometry must be preserved while ensuring a compact, reliable connector interface for network, telephony or low-voltage signal lines.

Advantages

These modular connectors offer a compact form factor that fits round cable assemblies without the need for extensive cable modification. The solid construction enhances contact reliability and mechanical strength, reducing the risk of intermittent connections. The pack of 25 provides enough units for multiple terminations or small installation projects, and the standardized design allows compatibility with common modular jacks and couplers used in cabling systems.

Suitable for

• Terminating round network and telephone cables in residential and commercial installations
• Repairing or replacing damaged connectors in existing cable runs
• Small-scale cabling projects, prototypes, and DIY electronics or telecommunication setups
• Use with modular jacks, patch panels and inline couplers that accept standard modular plugs

Key specifications

• Connector type: modular plug for round cable
• Quantity: 25 pieces per pack
• Contact construction: solid contacts designed for reliable electrical continuity
• Compatible cable type: round communication and signal cables (low-voltage)
• Application: data, telephony and low-voltage signal connections
• Mechanical durability: designed for repeated insertion with standard modular sockets

How to use

Strip the outer sheath of the round cable to expose the individual conductors, taking care to retain cable geometry suitable for insertion into the connector. Arrange the conductors according to the required wiring standard for your application, insert them fully into the connector until they seat against the contact stops, and secure the connector following the assembly method appropriate to the TD104M design (crimping or insertion). After assembly, verify continuity and correct pair wiring with a cable tester before final installation.

Recommendations

Use compatible tools for stripping and assembly to prevent damage to conductors and contacts. Test each terminated cable for continuity and correct wiring prior to deployment. Store unused connectors in a dry environment to avoid contamination of contacts.
