DeLOCK 90884 módulo de tomada 3,5 mm prateado branco conector fêmea

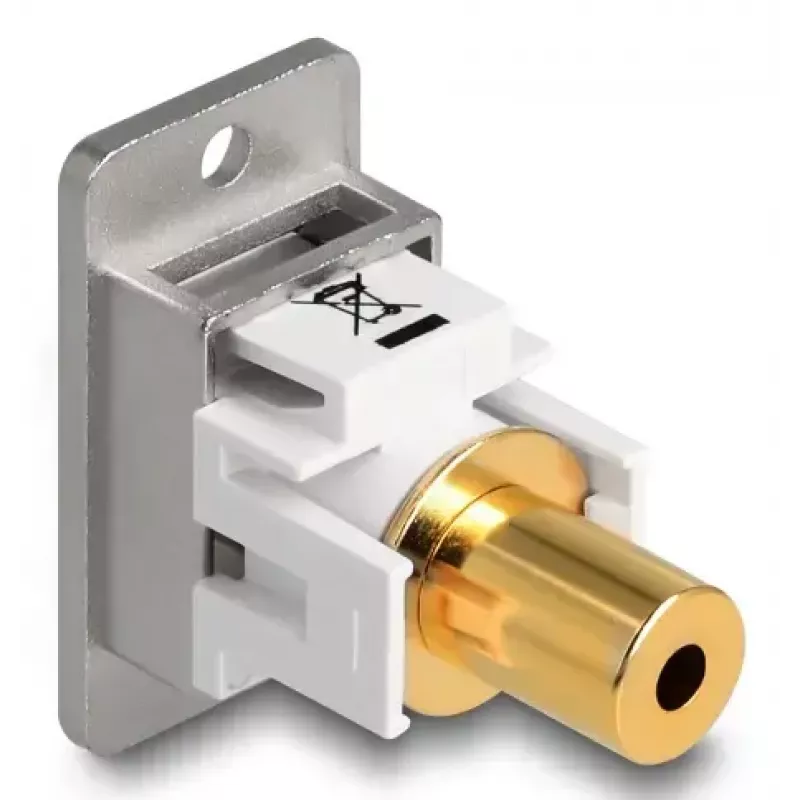

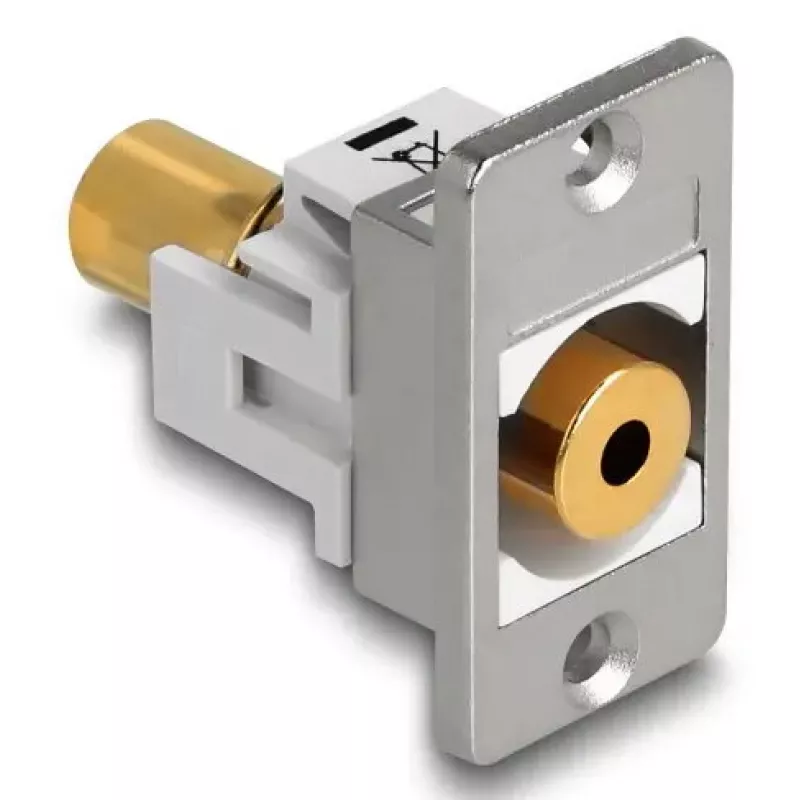

The DeLOCK 90884 socket-outlet is a 3.5 mm female stereo jack designed for panel or housing installation to provide a reliable audio connection. Constructed from durable plastic and zinc, the connector has compact dimensions (19 mm width, 36.3 mm depth, 35.5 mm height) and is supplied in a polybag. It is suitable for use where a recessed, panel-mounted audio input or output is required.

Advantages

The 3.5 mm female connector ensures compatibility with standard audio cables. The combination of plastic and zinc construction offers durability for repeated insertion cycles and stable mounting in housings. Its compact size allows integration into small panels or enclosures without occupying excessive space.

Suitable for

Key specifications

How to use

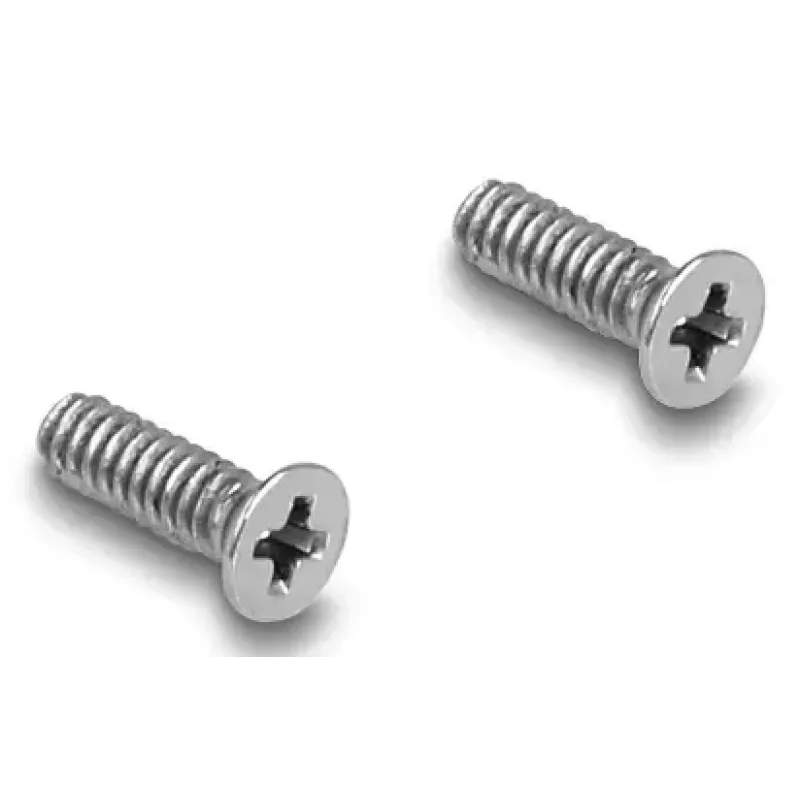

Mount the socket-outlet into the panel or housing cut-out according to the panel dimensions. Secure the unit using the provided mounting features or screws, then connect the internal wiring to the jack terminals following the device wiring diagram. Insert a standard 3.5 mm audio plug into the female connector to establish the audio connection.

Recommendations

Ensure the panel cut-out matches the socket dimensions and that internal wiring is insulated and secured; avoid excessive mechanical stress on the connector during insertion and removal of plugs to prolong service life.
