Conector XLR de 5 pinos Omnitronic 30208420 — conector de áudio (macho/fêmea) para sinais simétricos

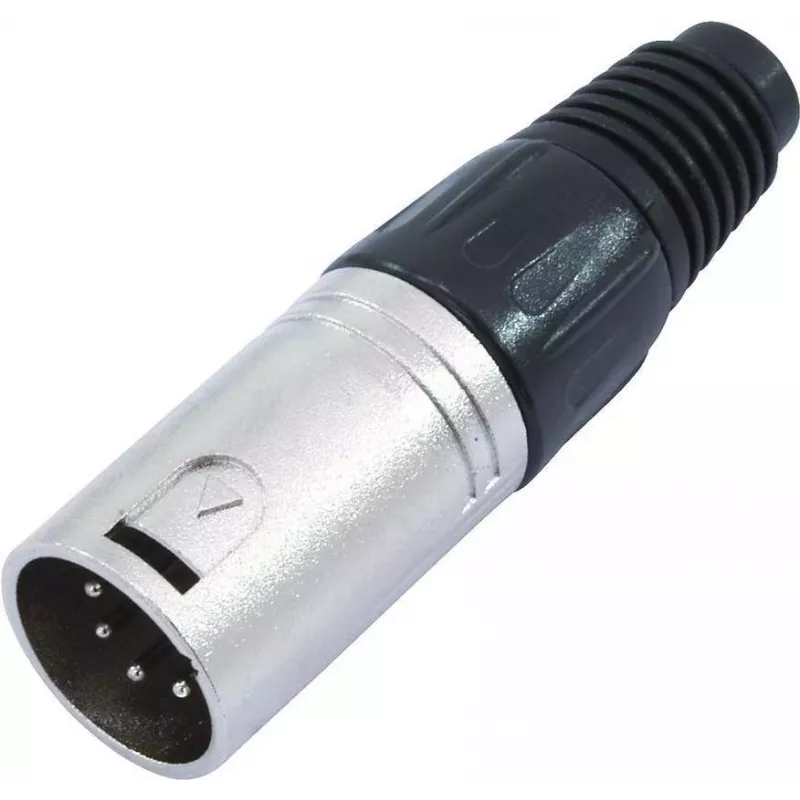

Omnitronic 30208420 is a 5-pin XLR connector designed for professional audio applications where balanced multi-channel connections are required. The connector is available in male and female versions and provides five contacts for balanced signal transmission, making it suitable for stereo microphones, intercoms, and small multichannel links. It features a locking mechanism for secure mating and is intended for wiring, repairs, and building custom audio cables and installations in studio, stage, and live-sound environments.

Advantages

The 5-pin XLR connector offers reliable contact performance and a secure latch to prevent accidental disconnection during use. Its five balanced contacts allow flexible signal routing for stereo or multichannel setups while maintaining low-noise transmission. The connector is compatible with standard XLR housings and can be used with common cable types for professional installations. Designed for repeatable connections, it supports durable mechanical and electrical performance in frequent-use scenarios.

Suitable for

Key specifications

How to use

Strip the cable to expose conductors consistent with the five-pin wiring scheme and solder or crimp each conductor to the corresponding contact following standard wiring conventions. Ensure correct pin assignments for balanced pairs to preserve signal integrity. Assemble the connector housing and verify the latch engages fully when mated to the counterpart. Test continuity and shielding before deployment in a live environment to confirm correct wiring and secure connections.

Recommendations

Use high-quality shielded audio cable and follow balanced wiring practices to minimize interference. Inspect contacts and locking mechanisms periodically and perform continuity checks after assembly. Avoid excessive bending or strain at the cable exit and use strain relief to prolong connector life.
