Projetor LED PAR EUROLITE 12x8W QCL 15x60° e 40° com 2 discos difusores

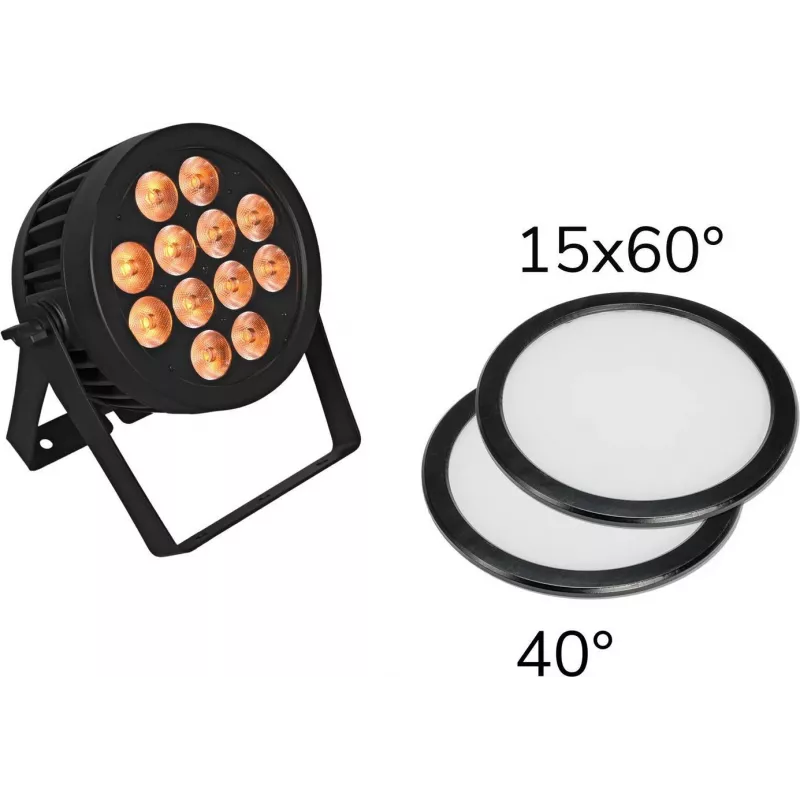

The EUROLITE LED PAR Light 12x8W QCL with two diffuser discs is a compact stage and event fixture that combines bright QCL LEDs with interchangeable optics. It features twelve 8W quad-color LEDs and comes with two diffuser discs that provide beam angle options for narrower 15x60° patterns and wider 40° coverage. This design enables both focused beams for accents and broader washes for general illumination, making the fixture suitable for clubs, theatres, mobile DJs and architectural uplighting.

Advantages

The LED PAR delivers energy-efficient output with long-lasting LED sources and low heat generation compared with conventional lamps. Interchangeable diffuser discs allow quick adjustment between narrow and wide beam angles without tools. Compact housing and multiple mounting points support flexible installation on trusses, stands or floor positioning. The fixture offers reliable color mixing from the QCL LEDs for smooth gradients and saturated colors while maintaining consistent output across the beam.

Suitable for

Key specifications

How to use

Mount the fixture using the included bracket on a truss, stand or place it on the floor for uplighting. Select and fit the appropriate diffuser disc to achieve the desired beam angle: use the 15x60° disc for focused beam accents and the 40° disc for broader wash coverage. Connect power and DMX control as required, configure DMX addressing if using a console, or use built-in operating modes if present. Aim the fixture toward the target surface and make small positional adjustments to fine-tune coverage and overlap with other fixtures.

Recommendations

For even washes, position multiple units at regular intervals and use the 40° discs; for theatrical accents and tight beam effects, use the 15x60° disc and place the unit closer to the subject. Allow adequate ventilation around the housing and follow standard safety practices for mounting and cabling. Regularly inspect lens and diffuser discs and clean with a soft, dry cloth to preserve output quality.
