Conjunto de cabo de extensão solar InLine 6 mm², preto/vermelho, 0,75 m, modelo 95677

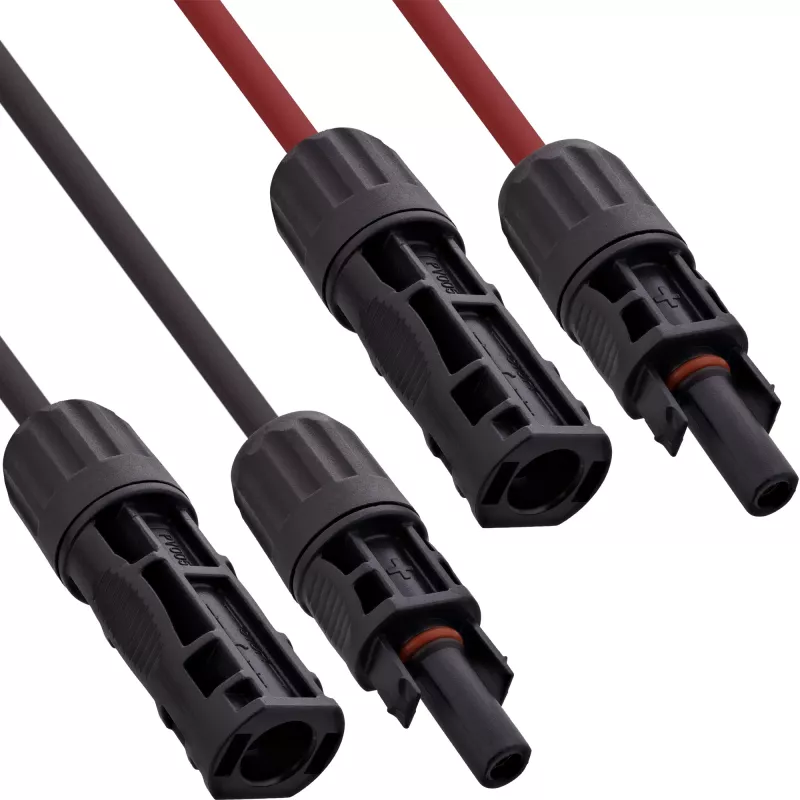

The InLine Solar cable extension set 6 mm², 0.75 m, in black and red provides a short insulated pair of DC conductors intended for photovoltaic installations and related DC power connections. Each conductor has a 6 mm² cross-section and the set is color-coded to distinguish positive and negative lines, simplifying wiring between solar panels, batteries and charge controllers. The compact 0.75 m length is suitable for short extensions or tidy internal routing in small arrays and enclosures.

Advantages

The matched pair of cables ensures consistent conductor size and electrical continuity for moderate current flows in PV systems. Color-coding reduces wiring errors during installation and maintenance. Insulated flexible conductors allow for easy routing and connection in confined spaces, and the short length minimizes excess cable bulk while enabling straightforward extension of existing runs.

Suitable for

• Extending connections between solar panels in small arrays
• Connecting battery banks to charge controllers over short distances
• Tidy internal wiring inside inverter or combiner boxes
• Temporary or permanent DC wiring where 6 mm² conductors are required

Key specifications

• Conductor cross-section: 6 mm²
• Length: 0.75 m (pair)
• Colors: one black conductor and one red conductor for polarity identification
• Application: DC solar / PV cabling and general DC power connections

How to use

Prepare the cable ends by stripping insulation to the length required by the terminal or connector being used. Connect the red conductor to the positive terminal and the black conductor to the negative terminal, ensuring tight and secure terminations to maintain low resistance. Route the cables to avoid sharp edges, pinch points and high-temperature surfaces. If used outdoors or in open PV arrays, ensure connections are protected with appropriate weatherproofing or enclosures compatible with the rest of the installation.

Recommendations

Verify that 6 mm² conductors meet the current and voltage requirements of your system and comply with local electrical codes. Use suitable connectors or crimping tools to achieve reliable connections, and periodically inspect terminations for corrosion or loosening in long-term installations.
