Conjunto de montagem DeLOCK D-Sub 9 pinos macho para RJ12 fêmea azul

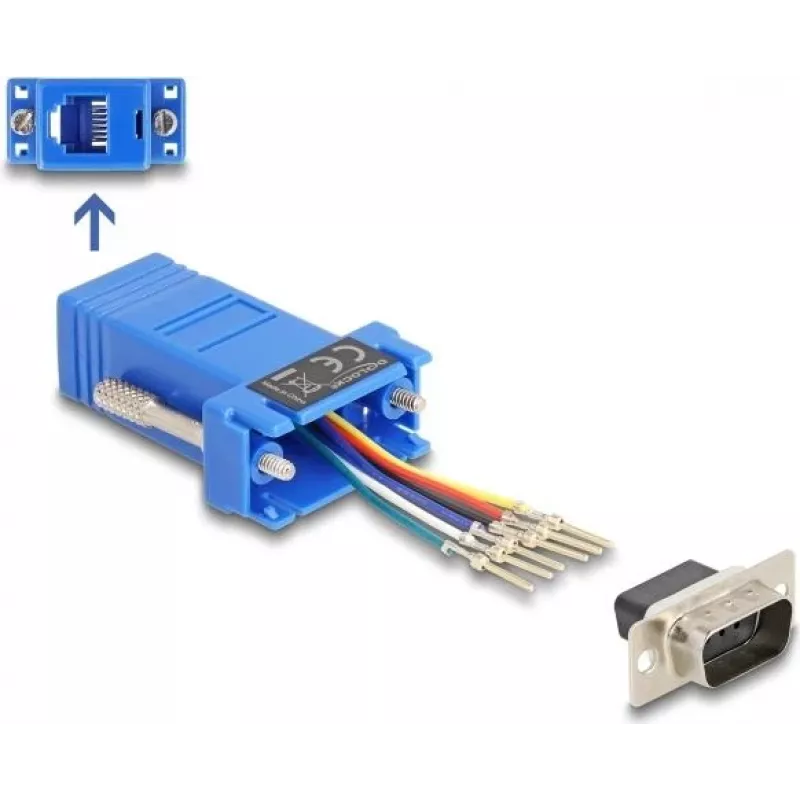

The DeLOCK D-Sub 9 pin male to RJ12 female Assembly Kit (blue) allows you to extend or convert a D-Sub 9 serial interface using an ISDN, telephone or RJ12 cable. The kit provides a D-Sub 9 male connector and an RJ12 female connector and is intended for building customised cable assemblies where connector assignment and contact placement can be adapted to specific wiring requirements.

Advantages

The assembly kit lets you assign D-Sub 9 contacts individually and flexibly. Contacts can be placed into the D-Sub 9 housing according to required pinouts, and the sockets snap into place with a light click to ensure reliable contact. The blue housing helps with visual identification of the assembled connector.

Suitable for

• Creating custom serial cables for RS-232 or compatible serial connections
• Extending serial D-Sub 9 interfaces over ISDN, telephone or RJ12 wiring
• Repairing or replacing damaged D-Sub 9 to RJ12 terminations

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 67075
• EAN: 4043619670758
• Connector 1: D-Sub 9 (male)
• Connector 2: RJ12 (female)
• Product colour: Blue

How to use

Prepare the cable by stripping the outer jacket and individual conductors according to the required wiring scheme. Insert the contacts into the D-Sub 9 housing following the chosen pin assignment, then assemble the connector housing until the sockets click into place. Connect the RJ12 female end to the corresponding RJ12 plug or cable and verify continuity and correct pin mapping before putting the cable into service.

Recommendations

Ensure you use the correct wiring diagram for your device or system to avoid signal errors. After assembly, test the connection with a multimeter or loopback test to confirm reliable contact and correct pin assignment.
