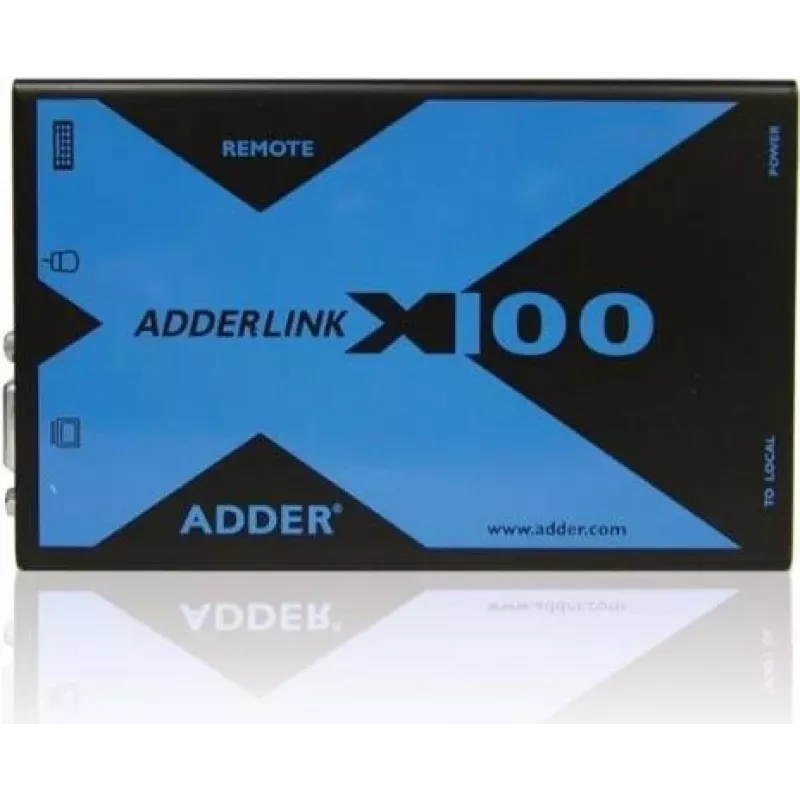

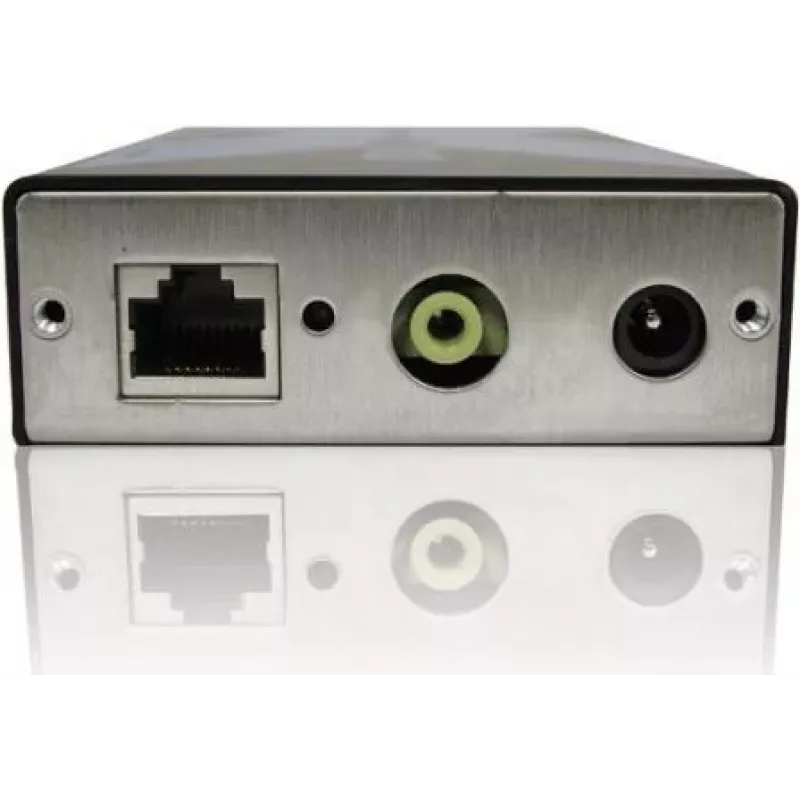

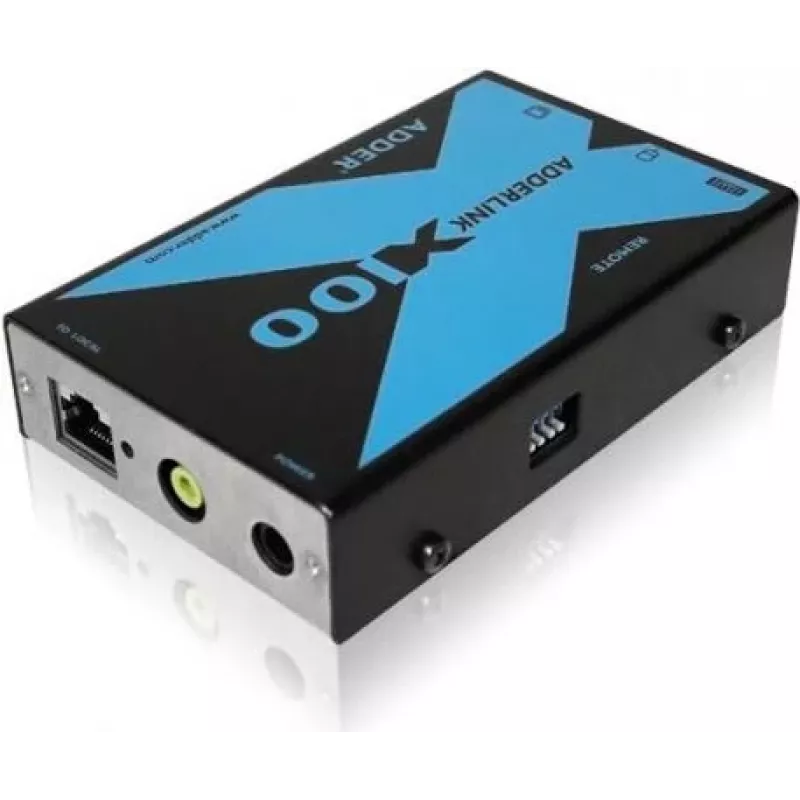

Conjunto extensor KVM Adder AdderLink X100 VGA USB Audio sobre CATx até 100m (X100A-USB/P-IEC)

The AdderLink X100 stands out by extending VGA video, USB keyboard/mouse, and stereo audio over a single CATx cable up to 100 meters—without the complexity of IP-based KVM solutions. It is a straightforward, hardware-only extender that works with any operating system and requires no drivers or software.

Highlights

• Extends VGA, USB 1.1, and audio up to 100 m over Cat5e/6/7
• Supports resolutions up to 1920 x 1200 @ 60 Hz (WUXGA)
• Local and remote access for one computer
• Hot-pluggable, OS independent, metal chassis
• External DC power with IEC C14 input

In daily use

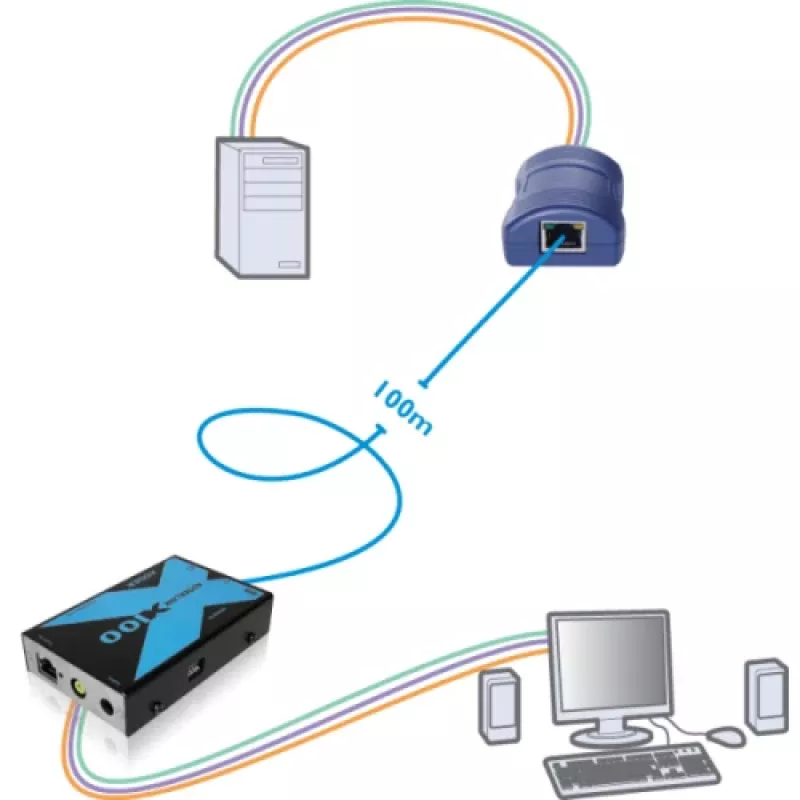

The transmitter connects to your computer's VGA, USB, and audio ports; the receiver sits at your desk with monitor, keyboard, mouse, and speakers. CATx cabling keeps installation simple and cost-effective, while LED indicators on both units give clear power, link, and status feedback. The metal housings are built for continuous operation in office or industrial environments.

Full specifications

• Max resolution: 1920 x 1200 @ 60 Hz
• Max distance: 100 m (330 ft)
• Video interface: VGA
• USB interface: USB 1.1 (keyboard & mouse)
• Audio interface: 3.5 mm stereo jack
• Cable types supported: Cat5e, Cat6, Cat7
• Number of users: 1 (local & remote)
• Number of computers: 1
• OS compatibility: OS independent
• Power: external DC adapter with IEC C14 input
• Mounting: desktop, optional rackmount kit
• LED indicators: power, link, status
• Chassis material: metal
• Operating temperature: 0 to 40 °C (32 to 104 °F)

Final note

The AdderLink X100 is a reliable, no-frills KVM extender for point-to-point applications where distance and simplicity matter more than multi-user networking.
