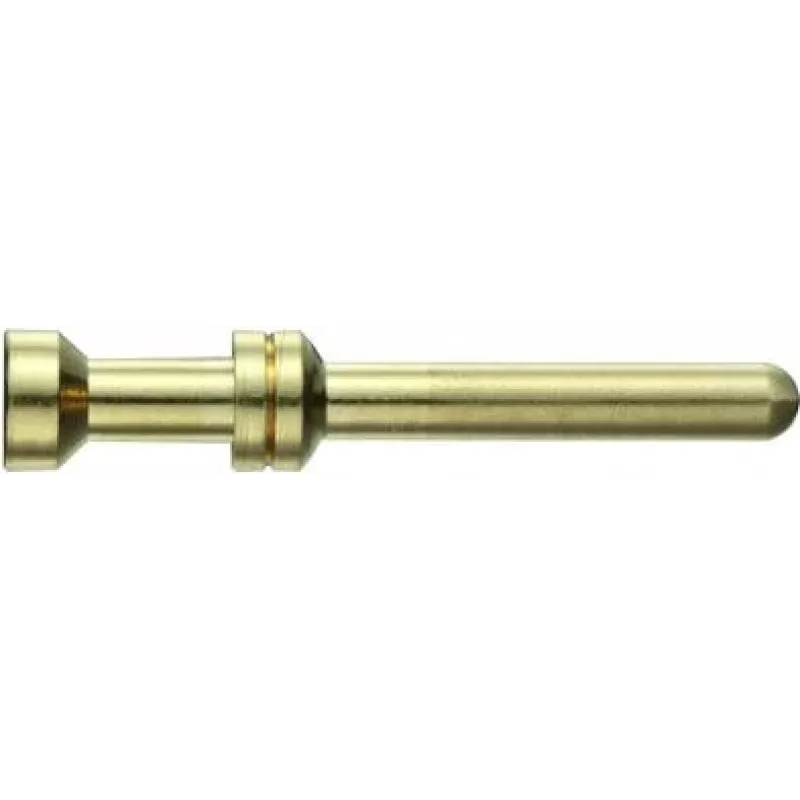

Contacto de pino Harting 09330006139 inserto de contacto individual para conectores retangulares

The Pin Contact Harting 09330006139 single contact insert is a replacement pin designed for compatible rectangular connector systems. Supplied as a single-piece contact, it is intended for use in Harting connector housings and insert modules where individual pin replacement or custom contact assembly is required. This contact is suitable for repair, maintenance and custom wiring tasks involving modular rectangular connectors.

Advantages

This single pin contact provides a direct replacement option that helps restore connector functionality without replacing the entire insert or housing. Manufactured to match the physical and electrical characteristics expected in Harting-compatible systems, it supports secure mechanical fit and reliable electrical contact. The single-piece design simplifies installation for targeted repairs and allows for tailored contact configurations when assembling custom cable or panel connectors.

Suitable for

• Repairing damaged or worn pin contacts in rectangular connector inserts
• Maintaining industrial or commercial equipment with modular Harting-style connectors
• Custom wiring and assembly of connector modules for signal or power applications
• Replacing individual contacts during on-site servicing without full connector replacement

Key specifications

• Contact type: single pin insert intended for rectangular connector systems
• Material and plating: designed to meet standard conductive and corrosion resistance requirements for connector contacts (manufacturer specifications apply)
• Supply quantity: single contact piece
• Application: for use in compatible Harting connector housings and insert modules for signal and/or power connections
• Mounting: intended for insertion into modular rectangular connector inserts or cages

How to use

Ensure the connector housing and mating components are compatible with the contact insert before installation. Power should be removed from the system and relevant safety precautions taken. Extract the damaged or existing pin using appropriate tools, then insert the replacement contact into the designated cavity until it engages securely. Verify mechanical retention and electrical continuity with standard test procedures after installation. If unsure about compatibility or installation steps, consult connector technical documentation or a qualified technician.

Recommendations

Store replacement contacts in a clean, dry environment to avoid contamination. Use proper extraction and insertion tools to prevent damage to the contact or housing. Verify contact seating and perform continuity and insulation tests after replacement to ensure reliable operation.
