Contactos de cravar para ficha D-Sub DeLOCK 66726

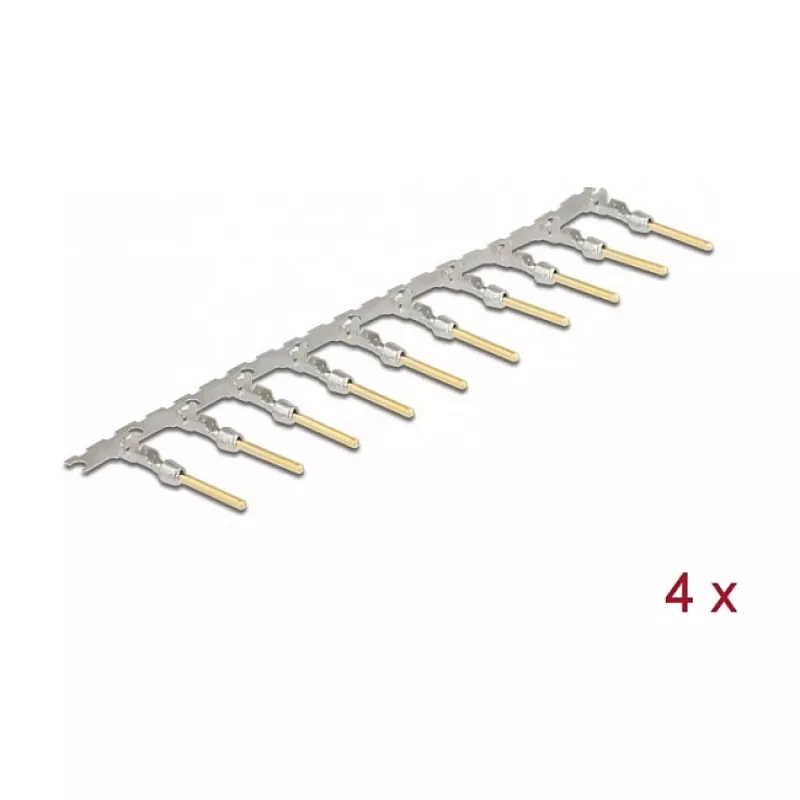

DeLOCK crimp contacts for D-Sub male connectors, delivered in sets suitable for creating or repairing D-Sub cable assemblies. The contacts are compatible with AWG 20 and 24 wires and feature a gold-plated contact area for reliable electrical conductivity. Packs are supplied in polybags, with a total of 40 contacts in the package arranged as 4 contacts per small pack.

Advantages

Gold plating on the contact surfaces improves conductivity and reduces corrosion risk. The contacts are designed for crimp termination, enabling secure mechanical and electrical connection to stranded or solid AWG 20/24 conductors. Compact packaging in polybags keeps contacts organized for small-scale assembly or repair tasks.

Suitable for

• Custom D-Sub cable assembly
• Repairing D-Sub male connector wiring
• Low- to medium-current signal and data connections using AWG 20/24

Key specifications

• Brand: DELOCK
• Manufacturer code (MPN): 66726
• EAN: 4043619667260
• Type: Crimp contacts for D-Sub male connector
• Wire compatibility: AWG 20 / AWG 24
• Contact plating: Gold-plated contact area
• Product colour: Silver
• Quantity: 40 pieces (4 contacts per small pack, in polybag)

How to use

Select the correct contact for the wire gauge (AWG 20 or 24). Strip the insulation to the recommended length for the D-Sub crimp contact, insert the conductor into the contact barrel, and use an appropriate crimp tool to make a secure crimp. After crimping, inspect the mechanical and electrical connection, then insert the contact into the D-Sub housing according to the connector pinout.

Recommendations

Use a dedicated crimping tool matched to D-Sub crimp contacts to ensure reliable crimps. Avoid excessive force when stripping insulation and crimping to prevent conductor damage. Store contacts in their polybag to keep them clean and prevent loss.
