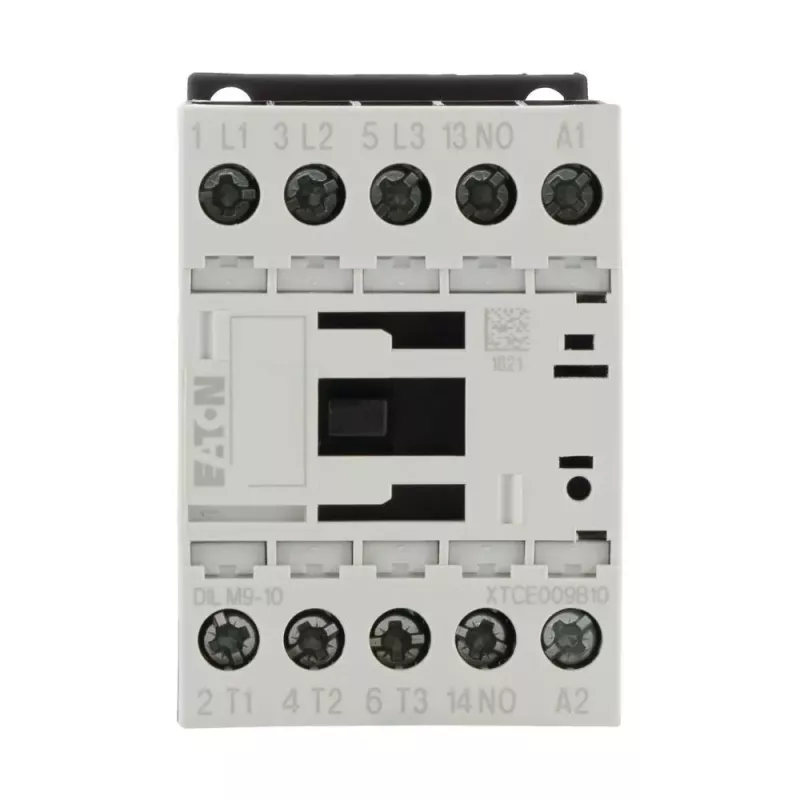

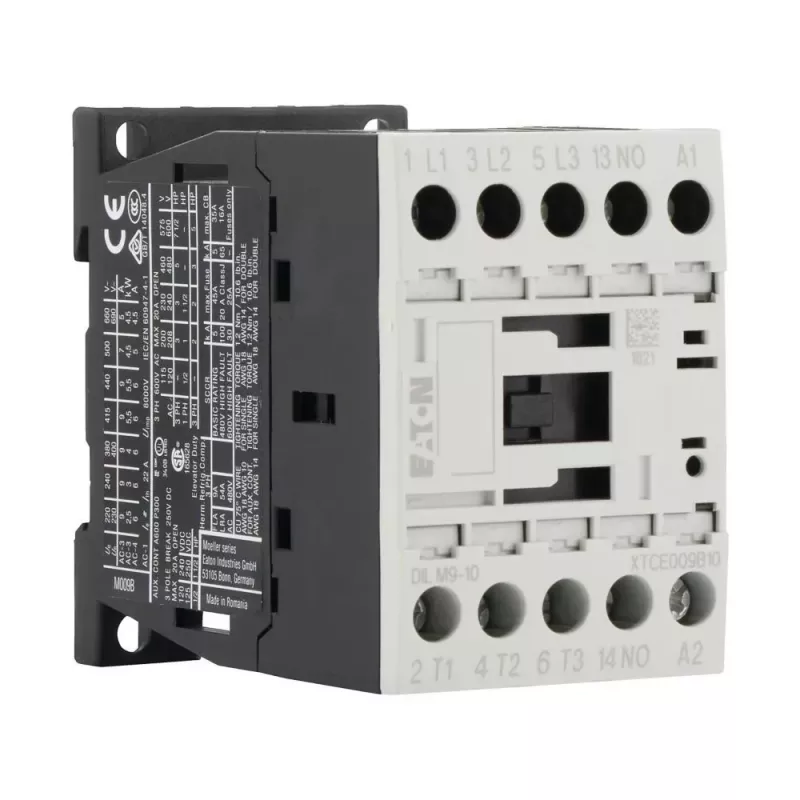

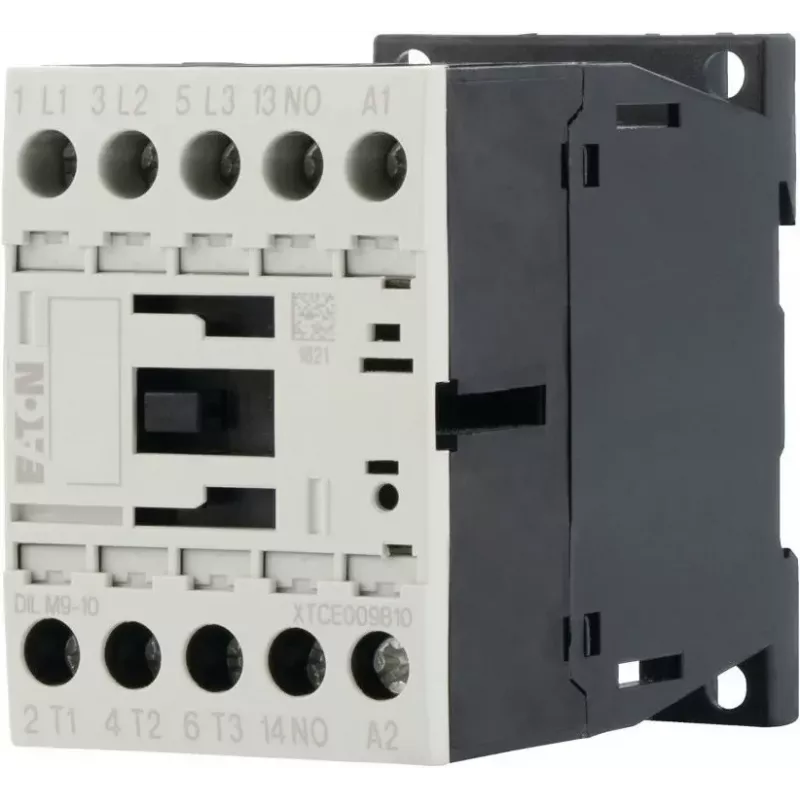

Contator EATON DILM9-10 3 polos 9 A 24 V AC 50/60 Hz 1 NO 276694

The EATON DILM9-10 contactor is a compact power control device rated for 9 A (AC-3, 400 V), making it suitable for switching motors up to 4 kW. Its 24 V AC coil operates at 50/60 Hz, and it includes one normally open auxiliary contact for control feedback. With screw terminals and DIN rail/screw mounting, it integrates easily into industrial control panels.

Highlights

• 3 main poles, rated operational current 9 A at AC-3, 400 V
• Coil voltage 24 V AC, 50/60 Hz
• 1 NO auxiliary contact
• Rated operational voltage up to 690 V AC
• Mechanical durability: 10 million operations

In daily use

Designed for reliable switching in motor control applications, the DILM9-10 handles frequent operations with a mechanical life of 10 million cycles and an electrical life of 1.5 million operations (AC-3). Its IP20 protection suits installation in enclosed panels, and the operating temperature range of -25 to +60 °C ensures performance in demanding environments.

Full specifications

• Rated operational current (AC-3, 400 V): 9 A
• Rated operational current (AC-1, 690 V): 22 A
• Number of main poles: 3
• Auxiliary contact configuration: 1 NO
• Coil voltage: 24 V AC
• Coil frequency: 50/60 Hz
• Rated operational voltage (Ue): 690 V AC
• Max motor power (AC-3, 400 V): 4 kW
• Mounting type: DIN rail / screw mount
• Terminal type: screw terminals
• Degree of protection: IP20
• Operating temperature range: -25 to +60 °C
• Mechanical life: 10 million operations
• Electrical life (AC-3): 1.5 million operations
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated insulation voltage (Ui): 690 V AC

Final note

A reliable contactor for standard motor control tasks, offering proven performance and easy installation.
