Controlador de videowall HDMI InLine 1 para 4, Full-HD

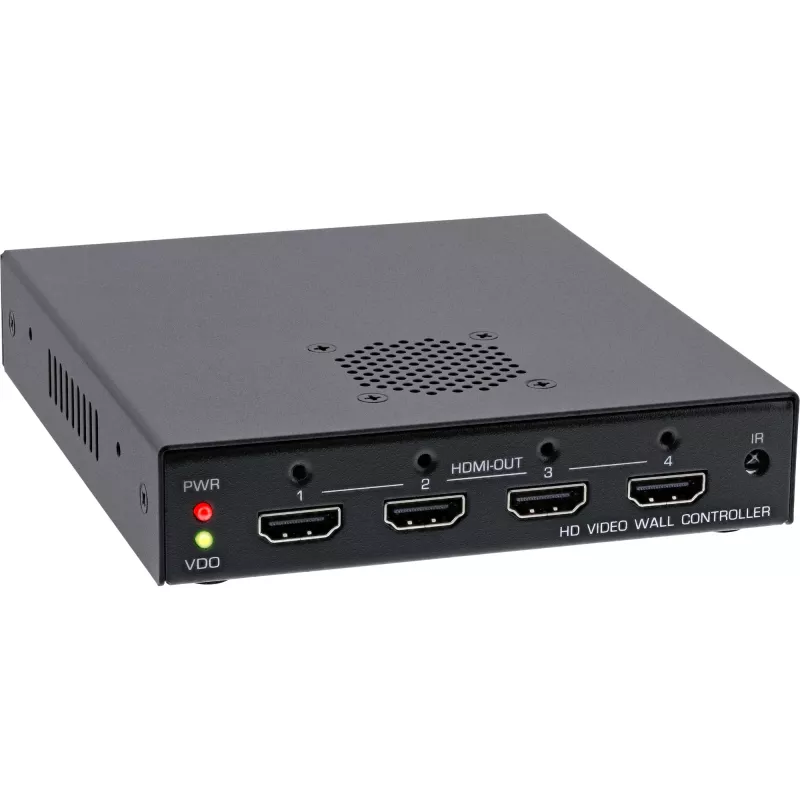

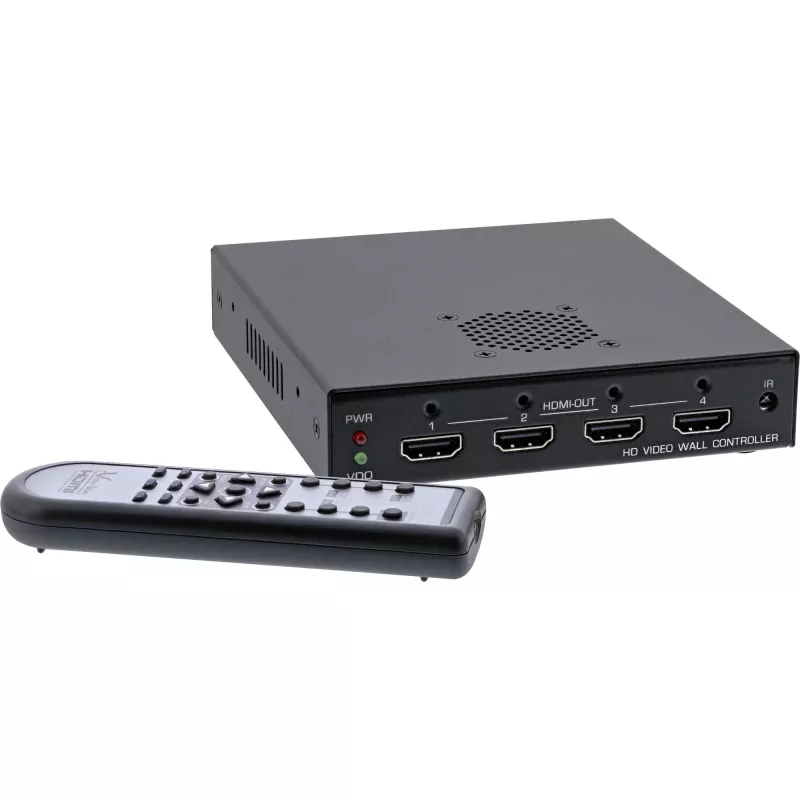

The InLine HDMI Videowall controller 1 to 4 Full-HD is a stand-alone video wall distributor designed to combine up to four displays into a single large image (2x2 configuration). It accepts HDMI or VGA input and supports output monitors with up to 1920 x 1200 resolution. The unit comes in a compact black metal housing and includes an external power supply for convenient installation.

Advantages

This HDMI video wall distributor can duplicate, enlarge or split a single video source across up to four Full-HD displays while supporting scaled resolutions of 1920 x 1080 and 1920 x 1200. It features IR remote control for easy operation and extended frame compensation to adapt the picture precisely to the combined screen layout. The durable metal enclosure and compact dimensions allow straightforward integration into professional AV, digital signage or broadcasting setups.

Suitable for

• Digital signage installations
• Advertising displays and video walls
• A/V splitting in presentation or event environments
• Broadcasting and monitoring rooms

Key specifications

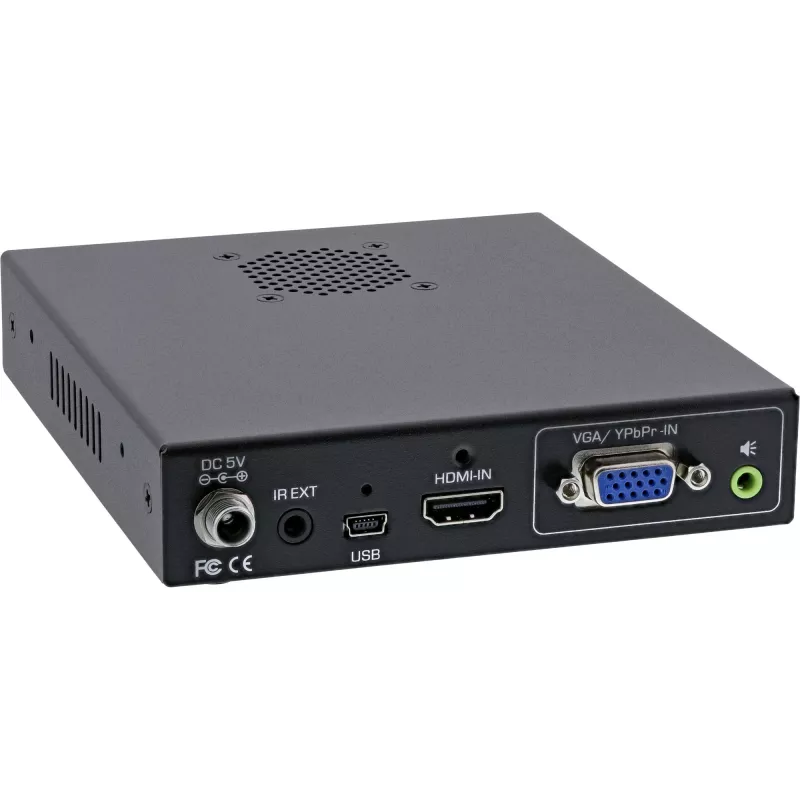

• Inputs: HDMI, VGA
• Outputs: Up to 4 HDMI displays (2x2 video wall)
• Maximum per-monitor resolution: 1920 x 1200 (supports 1080p)
• Scaled output resolutions: 1920 x 1080 and 1920 x 1200

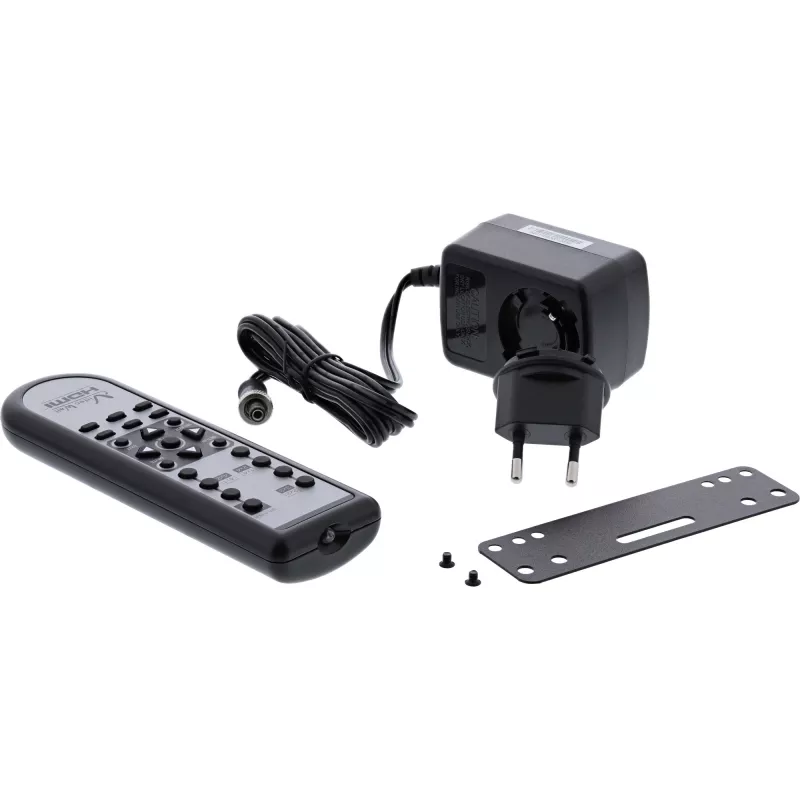

• Control: IR remote control
• Housing: Black metal
• Power: External power supply included
• Dimensions (W x D x H): 134 x 120 x 26 mm
• Weight: 0.47 kg

How to use

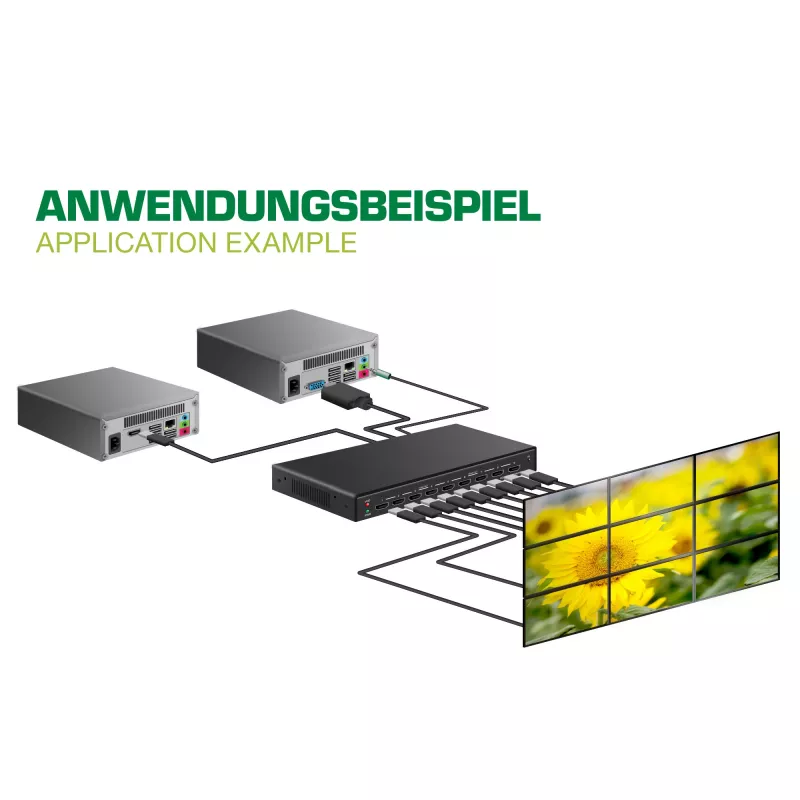

Connect your video source to the device using the HDMI or VGA input. Attach up to four HDMI displays to the outputs and power the unit with the supplied external adapter. Use the IR remote control to select the desired display mode (duplicate, enlarge or split) and to enable frame compensation and scaling to match the combined resolution. Place the device in a ventilated location and route cables to the displays according to your installation layout.

Recommendations

For optimal results, use displays with the same native resolution and aspect ratio and set each monitor to its native resolution before enabling scaling. Keep HDMI cable lengths within recommended ranges and ensure stable power to avoid signal degradation in multi-display configurations.
