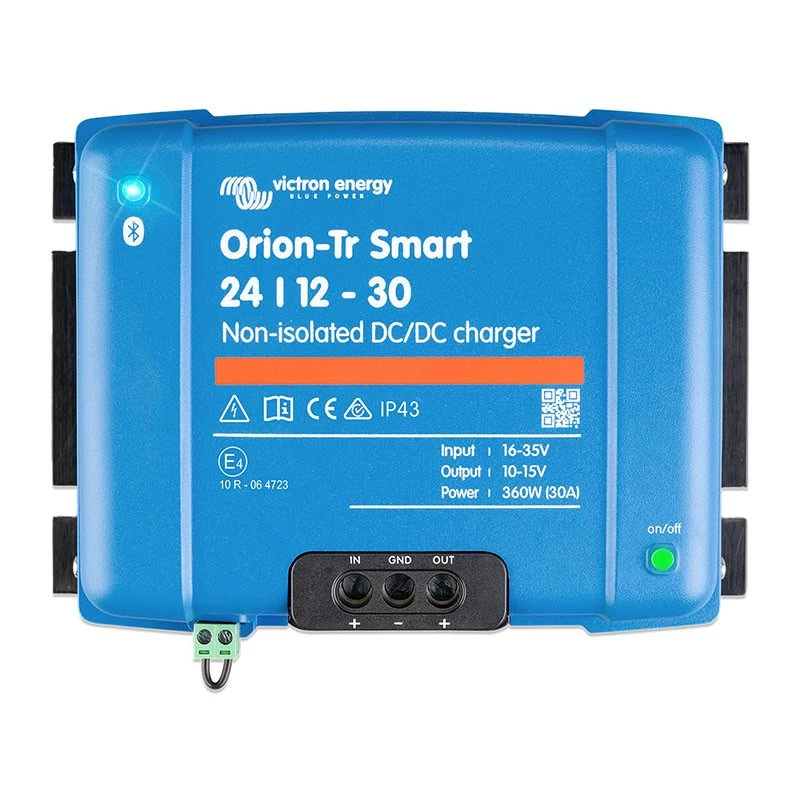

Conversor DC-DC Victron Energy Orion-Tr Smart 24/12-30A 24V para 12V, 30A

The Victron Energy Orion-Tr Smart 24/12-30A is a DC-DC converter that accepts a 24 V input and provides a regulated 12 V output with up to 30 A continuous current. Designed for vehicle, marine and off-grid installations, this unit maintains stable 12 V power for auxiliary loads and battery charging while incorporating Smart connectivity for monitoring and configuration. The converter uses a compact, rugged housing suitable for installation in confined spaces and includes protections against short circuit, over-temperature and reverse polarity.

Advantages

The Orion-Tr Smart 24/12-30A delivers a stable 12 V supply from a 24 V battery or alternator source and supports up to 30 A output current. Integrated Smart connectivity allows configuration and real-time status monitoring via compatible apps or external interfaces. The converter features thermal regulation and electronic protections to prevent damage under fault conditions, and its design emphasizes reliable continuous operation in mobile and stationary power systems.

Suitable for

Key specifications

How to use

Install the converter close to the 24 V source and the 12 V load, ensuring appropriate cable size and secure connections to minimize voltage drop. Connect the input to the 24 V battery or alternator and the output to the 12 V battery or load, observing correct polarity. After electrical connections, use the compatible app or interface to enable and configure Smart settings, verify output voltage and monitor load current and temperature. Follow local wiring regulations and disconnect batteries before performing installations.

Recommendations

Use appropriately rated fuses or circuit breakers on the input and output sides, select cable cross-sections in line with the 30 A maximum output, and provide ventilation clearance around the unit to maintain thermal regulation. For battery charging applications, configure charging parameters via the Smart interface to match the auxiliary battery type.
