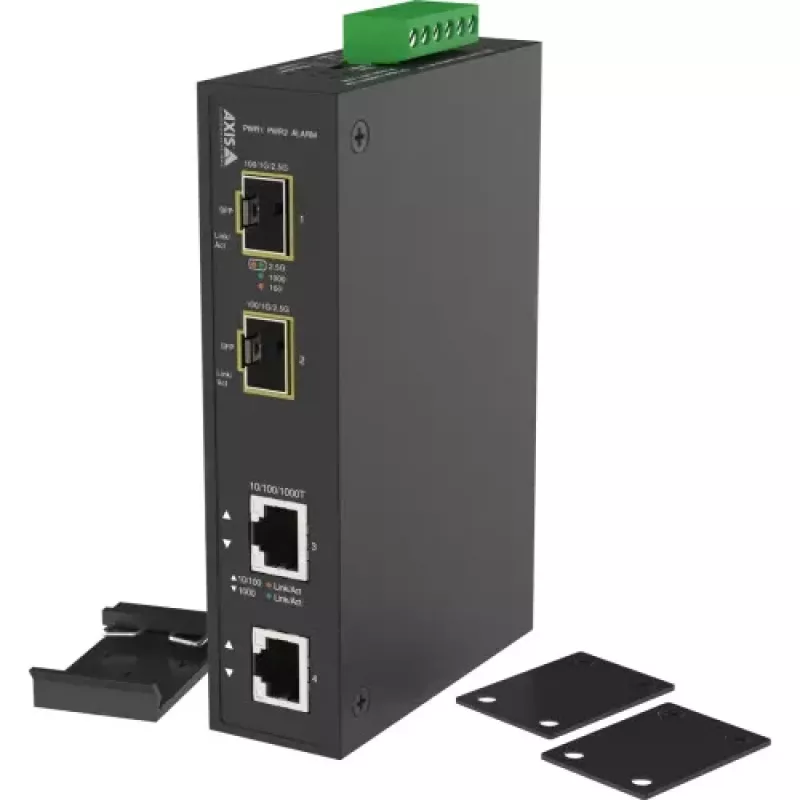

Conversor de media de rede Axis TU8008 1GbE 10/100/1000Base-T RJ-45/SFP

Extend your network beyond copper limits with the Axis TU8008, a compact media converter that bridges 10/100/1000Base-T RJ-45 and SFP fibre optic interfaces. Unlike basic converters, it supports Link Fault Pass-Through (LFP) for rapid fault isolation and operates across a wide -20 °C to 70 °C temperature range, making it ideal for industrial and outdoor surveillance deployments.

Highlights

• 1 x 10/100/1000Base-T RJ-45 port with auto-negotiation and Auto MDI/MDI-X
• 1 x SFP (mini-GBIC) slot for flexible fibre transceiver selection
• Supports Gigabit Ethernet, Fast Ethernet, and Ethernet standards
• Link Fault Pass-Through (LFP) for efficient troubleshooting
• Wide 8-28 V DC input range with low power consumption (max 3.0 W)
• Durable metal housing for desktop or wall mounting

In daily use

Deploy the TU8008 in security surveillance networks to connect IP cameras over fibre optic cabling, gaining immunity to electromagnetic interference and extending cable runs far beyond 100 meters. Its industrial temperature range ensures reliable operation in harsh environments, while the compact form factor simplifies installation in tight spaces.

Full specifications

• Device Type: Network Media Converter
• Form Factor: External
• Connectivity Technology: Wired
• Data Link Protocol: Gigabit Ethernet, Fast Ethernet, Ethernet
• Data Transfer Rate: 1 Gbps
• Ethernet Ports: 1 x 10/100/1000Base-T (RJ-45)
• Fiber Optic Ports: 1 x SFP (mini-GBIC) slot
• Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
• Features: Auto-negotiation, Auto MDI/MDI-X, Link Fault Pass-Through (LFP)
• Status Indicators: Link activity, Power
• Power Input: 8 - 28 V DC
• Power Consumption: Max 3.0 W
• Operating Temperature: -20 °C to 70 °C (-4 °F to 158 °F)
• Operating Humidity: 10 - 90% RH (non-condensing)
• Mounting Options: Desktop, Wall mount, DIN rail (with optional accessory)
• Housing Material: Metal

Final note

The Axis TU8008 delivers dependable copper-to-fibre conversion with industrial-grade resilience, ensuring uninterrupted connectivity for mission-critical applications.
