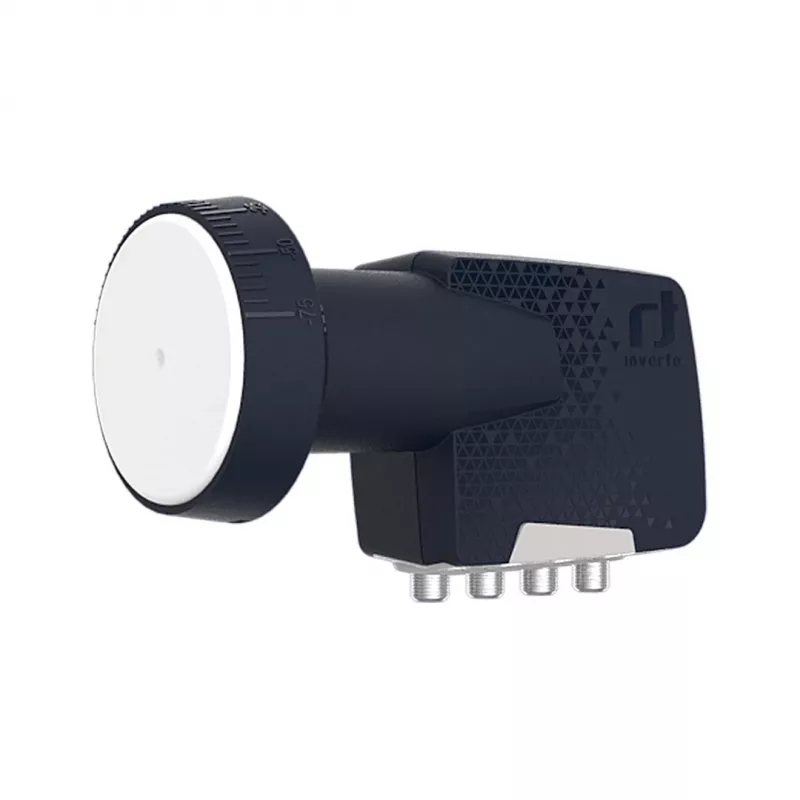

Conversor LNB universal Inverto Quad Premium - 4 saídas, figura de ruído 0,2 dB, feedhorn 40 mm, preto

Weak satellite signals and limited receiver connections often compromise your TV experience. The Inverto Quad Premium converter solves this by delivering a robust, low-noise signal to up to four independent receivers simultaneously. Whether you're setting up a multi-room system or need reliable reception for 4K UHD broadcasts, this LNB ensures consistent performance across the entire Ku-band.

Who is it for

Ideal for households with multiple set-top boxes or TVs, satellite enthusiasts, and professional installers who demand high gain and low noise. It suits DVB-S2, HDTV, and 4K UHD setups, providing future-proof compatibility for modern broadcasting standards.

Main features

• Quad universal LNB with 4 independent outputs for multi-receiver installations
• Ultra-low noise figure of 0.2 dB (typ.) for crisp, clear reception even in fringe areas
• Wide input frequency range 10.7–12.75 GHz covering low and high bands
• High conversion gain (50–60 dB) with excellent flatness (±0.5 dB over 26 MHz)
• Superior cross-polarization isolation (22 dB min.) and image rejection (40 dB min.)
• Weather-resistant housing with 40 mm feedhorn for standard dish compatibility
• Simple control via 22 kHz tone and 13/18V polarization switching

Specifications

• LNB Type: Quad Universal
• Outputs: 4
• Input Frequency Range: 10.7 – 12.75 GHz
• Output Frequency Range: 950 – 2150 MHz
• Low Band LO Frequency: 9.75 GHz
• High Band LO Frequency: 10.6 GHz
• Noise Figure: 0.2 dB (typ.)
• Conversion Gain: 50 – 60 dB
• Gain Flatness: ±0.5 dB (typ.) over 26 MHz
• Cross Polarization Isolation: 22 dB (min.)
• Image Rejection: 40 dB (min.)
• Output VSWR: 2.0:1 (max.)
• Current Consumption: 120 mA (max.)
• Operating Temperature: -30°C to +60°C
• Feed Horn Diameter: 40 mm
• Control Signals: Low Band (0 kHz), High Band (22 kHz)
• Polarization Control: 13V (Vertical), 18V (Horizontal)
• Compatibility: DVB-S2, HDTV, 4K UHD
• Weather Protection: Yes

Tips

For optimal performance, align your dish accurately and ensure the LNB is skewed correctly for your location. Use high-quality coaxial cable with minimal length to reduce signal loss. When connecting multiple receivers, ensure each output is connected to a separate tuner to avoid conflicts. The weather-resistant design allows outdoor installation, but protect connectors with weather boots for longevity.
