Conversor Monoblock Twin INVERTO 7235 - 2 saídas, figura de ruído 0,2 dB, separação 6°, tipo F

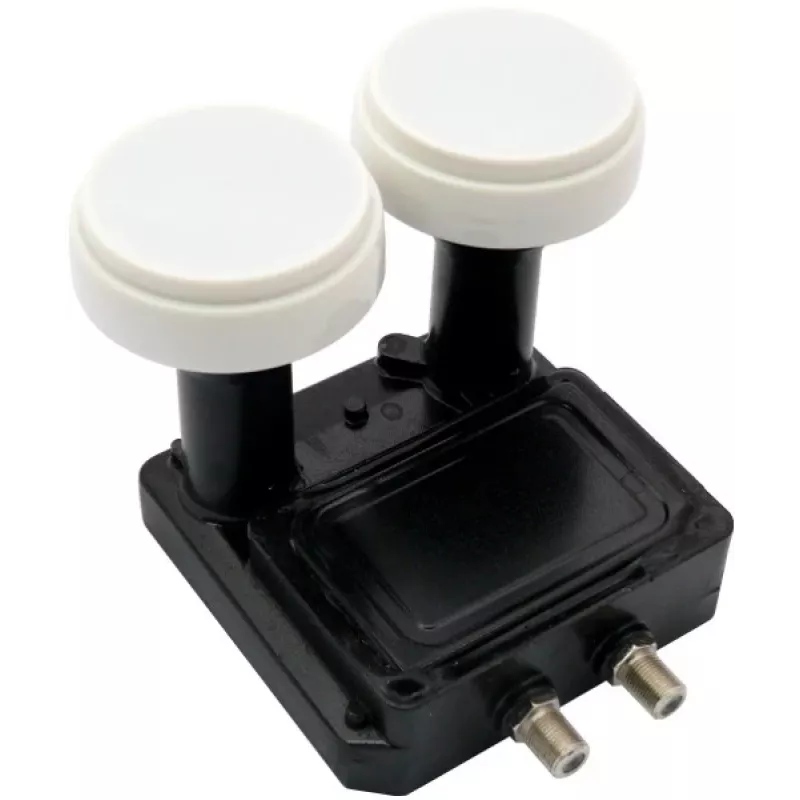

The INVERTO Monoblock Twin Converter 7235 is a high-performance satellite LNB designed for receiving signals from two satellites with 6° spacing. Featuring a low noise figure of 0.2 dB and twin outputs, it ensures excellent signal quality for HD and 4K UHD DVB-S2 reception. The monoblock design integrates two LNBs in one housing, simplifying installation and reducing wind load. With IP67 water protection and a wide operating temperature range, it is built for reliable outdoor use.

Advantages

• Integrated twin LNB for two satellites (6° spacing) – no need for separate LNBs and a multi-switch.
• Extremely low noise figure of 0.2 dB for optimal signal reception.
• Two independent outputs (twin) for connecting two receivers or a twin-tuner recorder.
• IP67 rated – dust-tight and protected against temporary immersion in water.
• DiSEqC 1.0 control for easy satellite switching.

Suitable for

• Satellite TV installations requiring reception from two satellites (e.g., Astra 19.2°E and Hotbird 13°E).
• Single or multi-room setups with up to two receivers.
• HD and 4K UHD DVB-S2 systems.

Key specifications

• LNB Type: Monoblock Twin
• Satellite Spacing: 6°
• Noise Figure: 0.2 dB
• Input Frequency Range (Low Band): 10.7 - 11.7 GHz
• Input Frequency Range (High Band): 11.7 - 12.75 GHz
• Output Frequency Range (Low Band): 950 - 1950 MHz
• Output Frequency Range (High Band): 1100 - 2150 MHz
• LO Frequency (Low Band): 9.75 GHz
• LO Frequency (High Band): 10.6 GHz
• Conversion Gain: 55 dB (min)
• Number of Outputs: 2 (Twin)

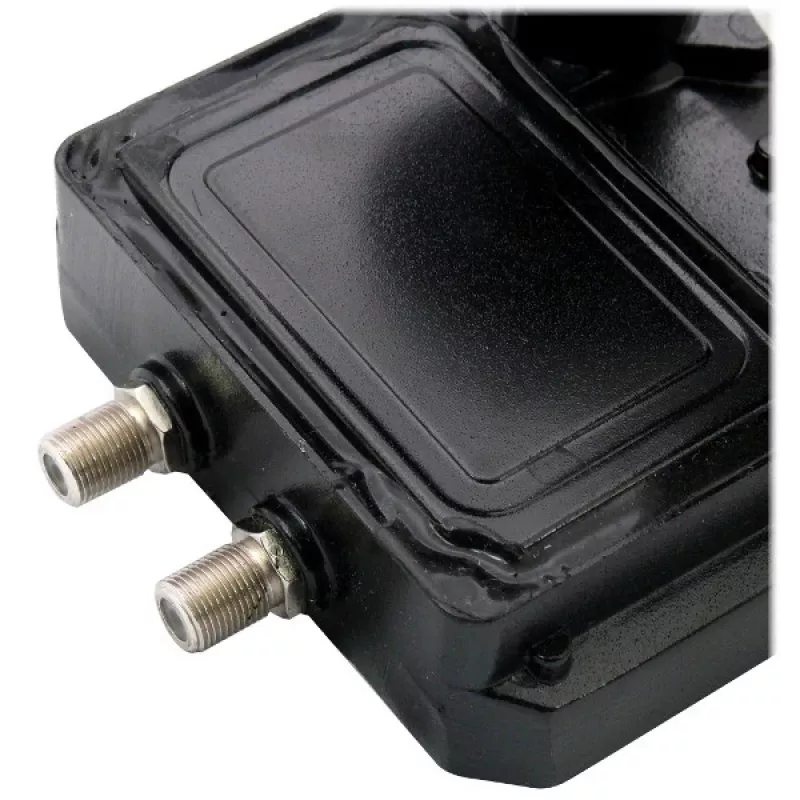

• Output Connector Type: F-Type
• Feed Horn Diameter: 40 mm
• DiSEqC Support: DiSEqC 1.0
• Cross Polarization Isolation: 22 dB (min)
• Current Consumption: 120 mA (max)
• Operating Temperature: -30°C to +60°C
• Water Protection: IP67
• Polarization: Linear (Vertical/Horizontal)
• Compatibility: HD and 4K UHD DVB-S2

Recommendations

For optimal performance, use high-quality F-type connectors and a properly aligned satellite dish. Ensure the LNB is securely mounted and the cable connections are weatherproofed.
