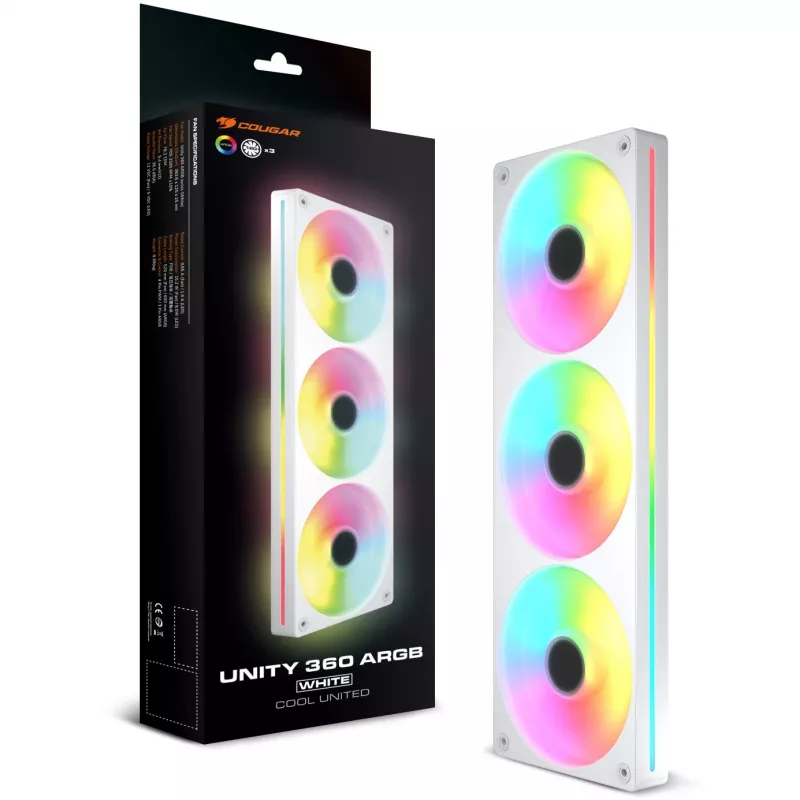

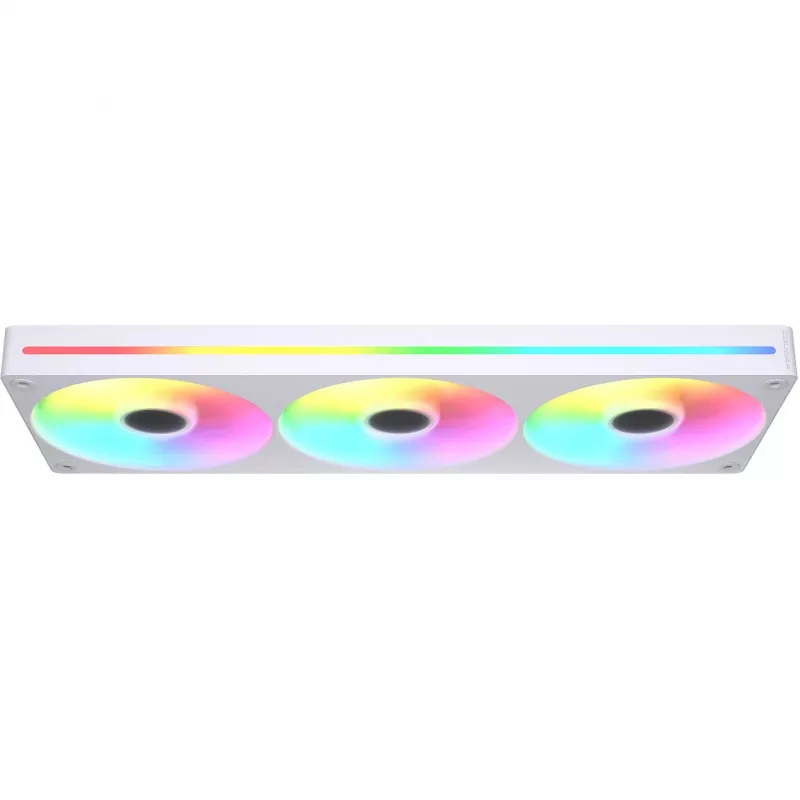

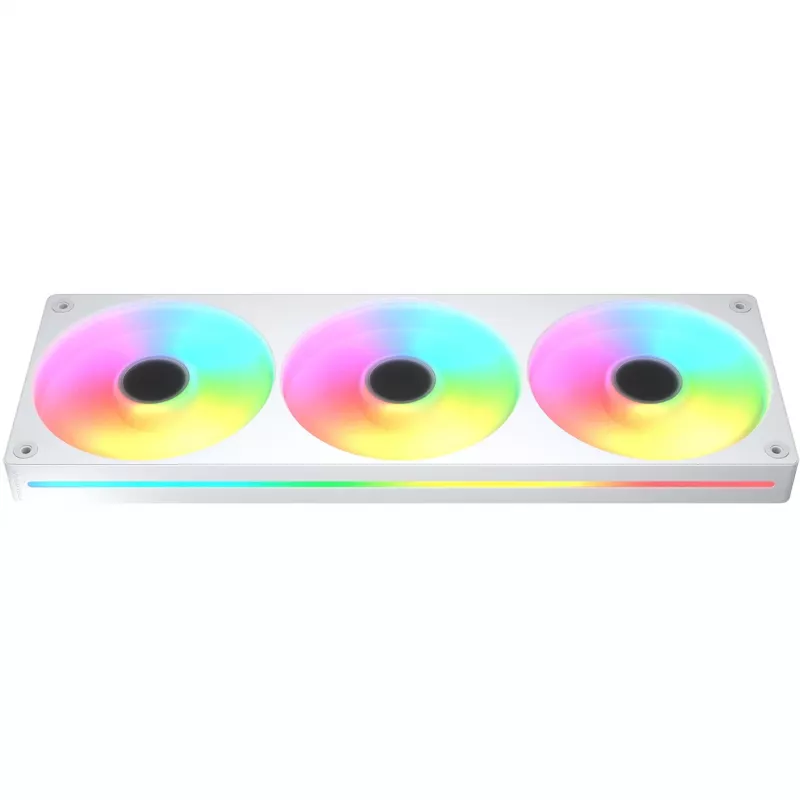

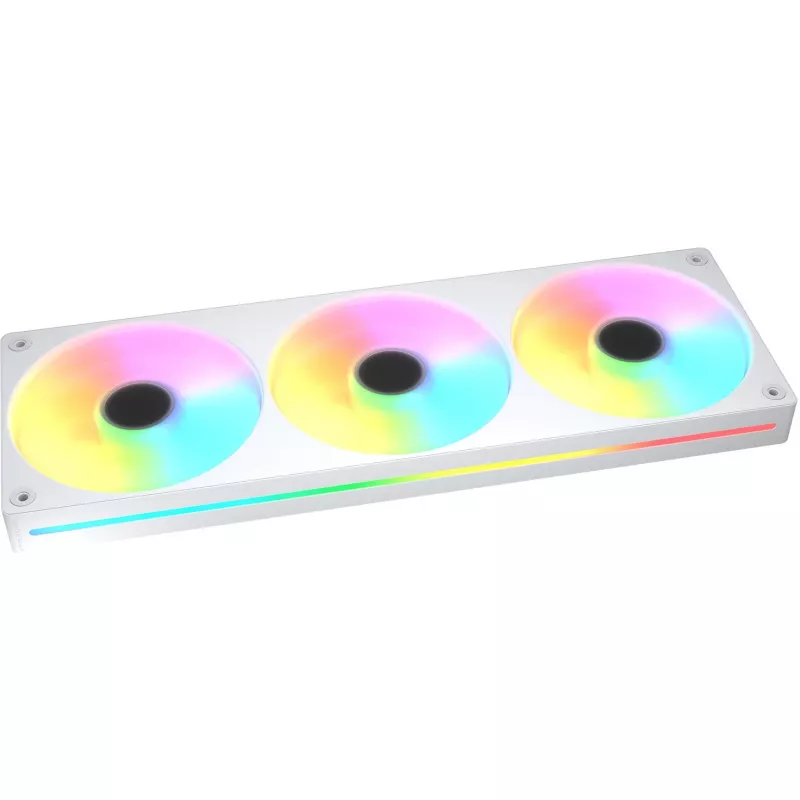

COUGAR Unity360-FB ventoinha ARGB PWM invertida de estrutura única 360mm, 120mm x3, 700–1600 RPM, FDB, branca

COUGAR Unity360-FB is a 360 mm single-frame ARGB PWM reversed fan kit in white that includes three 120 mm fans with a Stream Cable design. The unit is designed for case or radiator cooling and aims to improve airflow and thermal performance. Each fan operates between 700 and 1600 RPM, uses Fluid Dynamic Bearing (FDB) for longevity, and provides up to 2.31 mmH2O air pressure while the assembly measures 363.6 × 25 × 125 mm.

Advantages

The single-frame design integrates multiple fans into one unit, simplifying installation and reducing cable clutter. PWM control adjusts fan speed according to system temperature for efficient cooling and lower noise levels. ARGB side strips deliver uniform lighting effects and the Stream Cable system requires only two cables to control multiple fans. Rubber shock-absorbent corners reduce vibration for quieter operation, and the fans support motherboard synchronization for both ARGB lighting and PWM fan speed control.

Suitable for

• PC cases requiring 360 mm fan/radiator cooling
• All-in-one liquid cooling radiators or multi-fan case setups
• Systems where synchronized ARGB lighting is desired
• Builds needing low-noise, PWM-controlled airflow

Key specifications

• Product type: Fan kit (single-frame)
• Model: COUGAR Unity360-FB (CF-UN360RW-RGB)
• Fan size: 120 mm × 3
• Speed range: 700–1600 RPM (PWM)
• Maximum air pressure: 2.31 mmH2O
• Airflow: 49.01 CFM (per fan, as stated)
• Bearing type: Fluid Dynamic Bearing (FDB)
• Colour: White
• Dimensions: 363.6 × 25 × 125 mm
• Weight: 0.39 kg
• Connectivity: Stream Cable design; two cables for multiple fans
• Compatibility: ARGB and PWM synchronization with motherboard software

How to use

Install the single-frame unit into a compatible 360 mm mounting position in your case or on a radiator, aligning screw holes and securing with the supplied screws. Connect the two required cables: the ARGB connector to an ARGB header on the motherboard (or controller) and the PWM power connector to a PWM fan header for speed control. After connections, enable ARGB and fan control in the motherboard software to synchronize lighting and fan speed. Verify airflow direction and cable routing before closing the case.

Recommendations

For optimal results, mount the Unity360-FB where unobstructed airflow is available and use the motherboard’s PWM settings to set a temperature-based fan curve. Regularly clean dust from the fan blades and ARGB strips to maintain cooling efficiency and lighting clarity.
