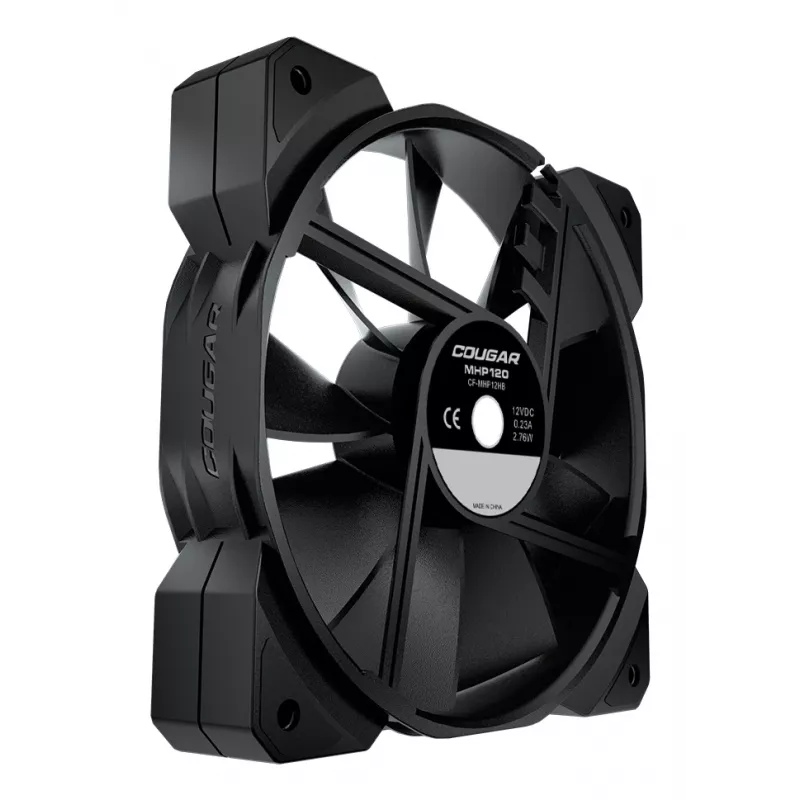

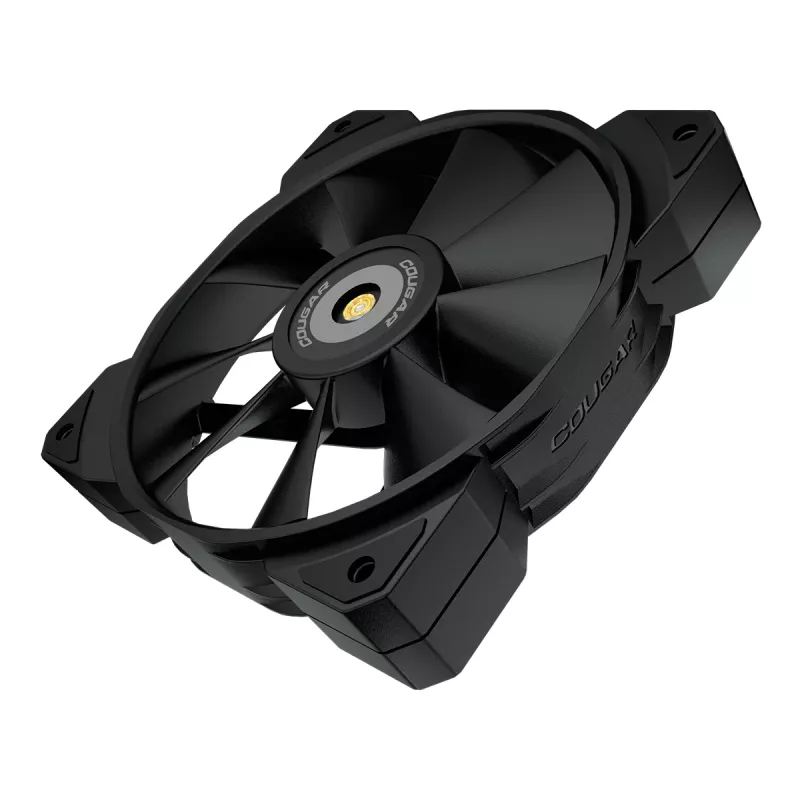

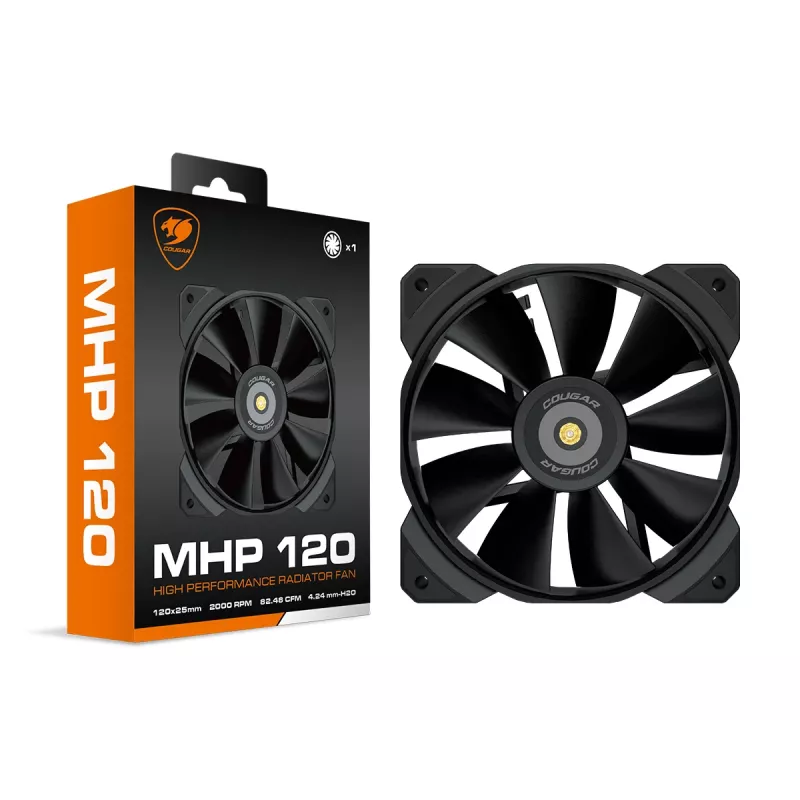

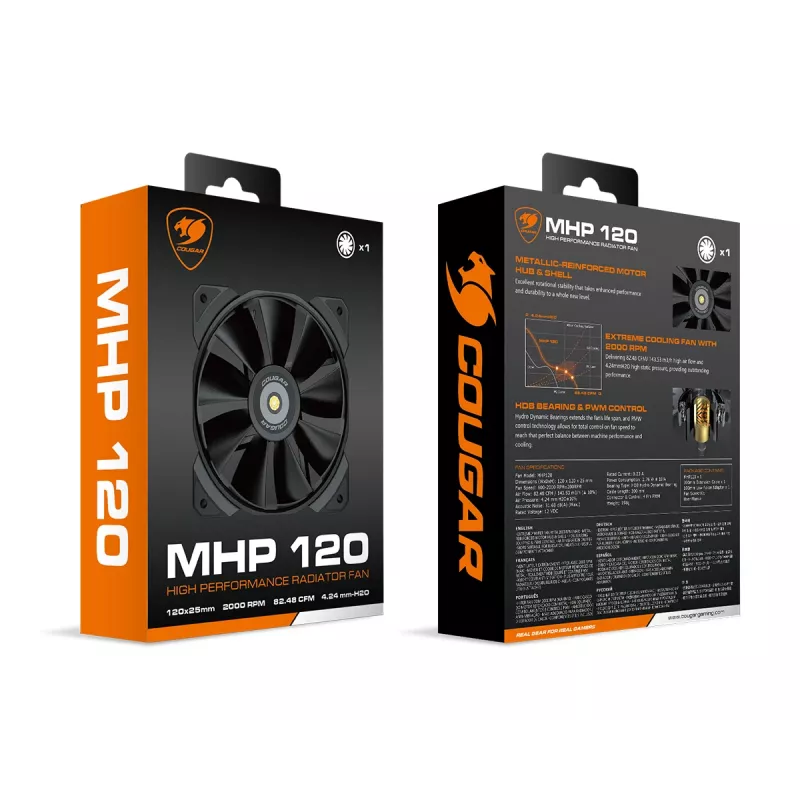

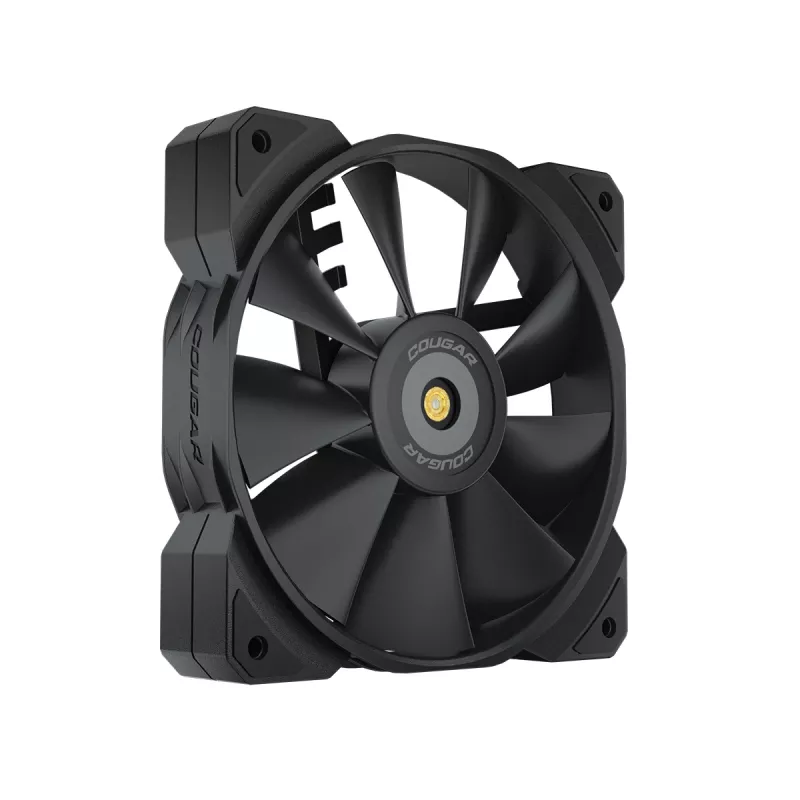

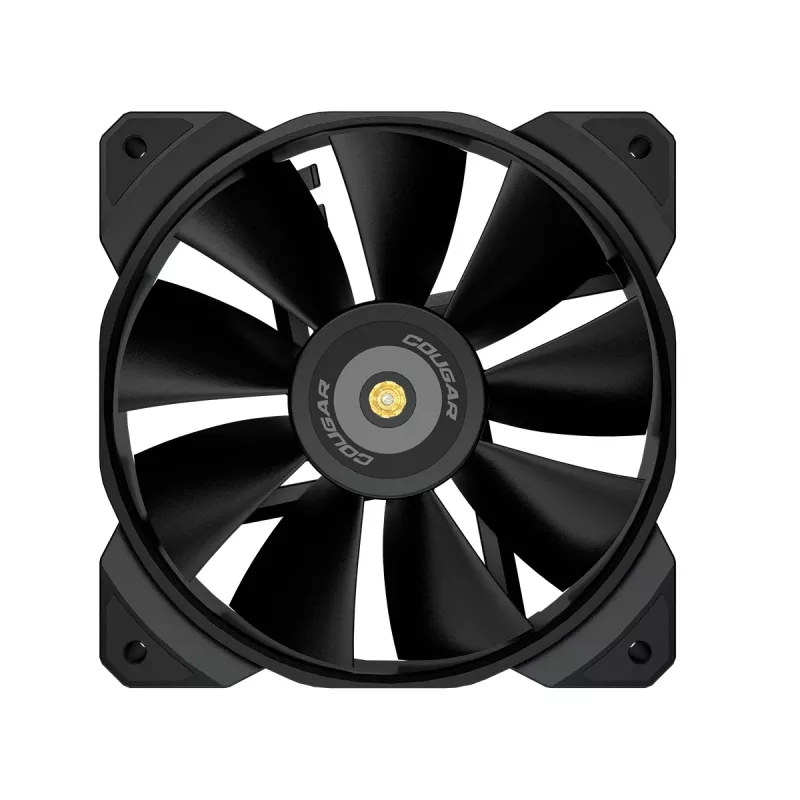

Ventoinha para caixa COUGAR MHP 120, Preto

High Performance Radiator Fan
Through structural adjustment and precision tuning, MHP 120 fan is suitable for any cooling fan position inside the chassis. In addition, the metallic-reinforced motor hub & metallic bearing shell design drastically increases the stability and cooling performance. MHP120 is the perfect choice for cooling fan upgrades!

Extremely Hyper Fan With 2000 RPM(max)
Proven with data from certified professional testing labs, MHP 120 delivering 82.48 CFM/ 143.53 m3/h high air flow and 4.24mmH2O high static pressure. Moreover, it features a high fan speed capable of reaching up to 2000 RPM, providing outstanding performance, MHP 120 fan is the fan that dominates!

Metal-reinforced Motor Hub & Shell
With the metal-reinforced motor hub and metal bearing shell design, MHP 120 fan generates excellent rotational stability that takes enhanced performance and durability to a whole new level.

HDB Bearing & PWM Control
MHP 120 is equipped with HDB bearing (Hydro Dynamic Bearings), that extends the fan’s life span and reduces decibel effectively. Meanwhile, PMW control technology allows for total control on fan speed to reach that perfect balance between machine performance and cooling.

Anti-vibration Damper
MHP 120 cooling fan is equipped with rubber dampers at four edges of the fan that absorbs vibration. Further reducing noise from mounting gaps and/or resonance in the chassis, adding to the quiet performance of your PC system.

Suitable For Radiator / Heatsink
With the high static pressure level of MHP 120, it is an excellent choice for most of the radiator & heatsink in maximizing their heat dissipation. And of course, MHP 120 is also compatible, and can be mounted to most of the air / water cooler from other brands with ease.

COUGAR Case Fan MHP 120, Black. Type: Fan, Fan diameter: 12 cm, Rotational speed (min): 600 RPM, Rotational speed (max): 2000 RPM, Maximum air pressure: 4.24 mmH2O, Bearing type: Hydraulic. Width: 120 mm, Depth: 120 mm, Height: 25 mm. Product colour: Black

How to use

Install the fan using the standard 4-screw mounting holes on radiators, heatsinks or case fan locations. Connect the fan to a PWM-capable fan header on the motherboard or a compatible controller to allow automatic speed control between 600 and 2000 RPM. Ensure airflow orientation matches your intended intake or exhaust direction and secure rubber dampers or screws to minimise vibration transfer.

Recommendations

For radiator or heatsink installation, position the fan to push air through the fins with the highest static pressure side facing the radiator. Use PWM control for balanced cooling and noise levels; enable automatic fan curves in BIOS or software to adapt speed to temperature changes.
